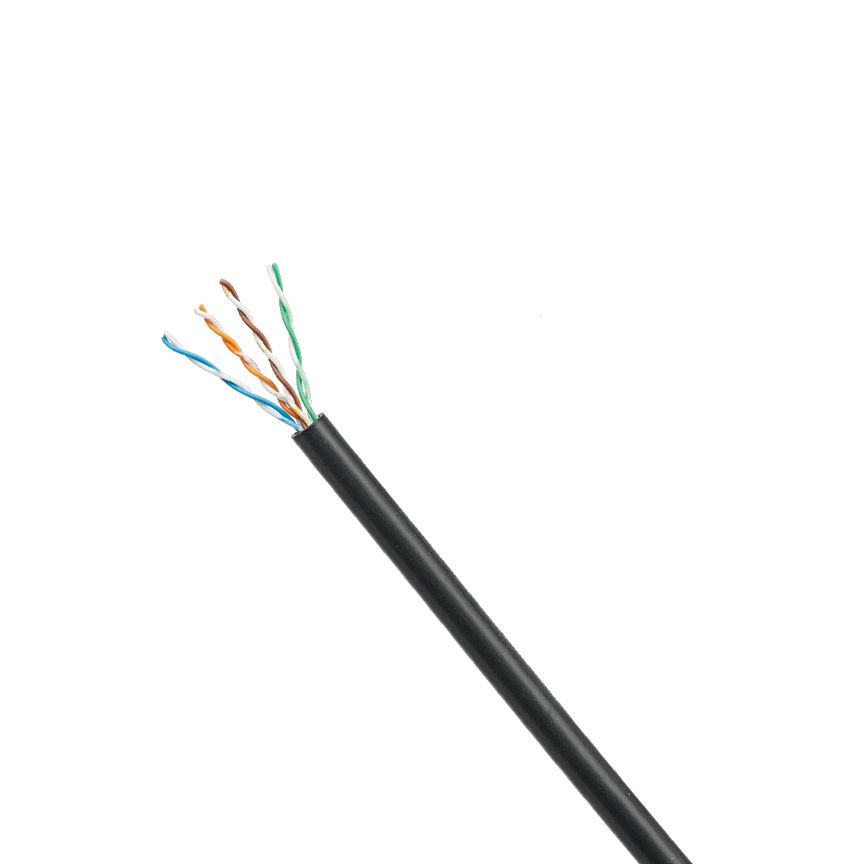

IndustrialNet™ Category 5e U/UTP Copper Cable
Copper Cable, Cat 5e, 24/7 AWG, U/UTP, Stranded
IUC5C04ABL-CEG
Upgrade your industrial network with our Cat 5e U/UTP copper cable. It offers superior performance and durability with a rugged construction to ensure reliable data transmission.
Discontinued - Limited Stock
It is the buyer’s responsibility to determine if the suggested replacement part is suitable for your application and intended use.
Suggested Replacement Parts:
Specifications
| Note | Available in all regions |
| Environment | Harsh Environment |
| Performance Level | Category 5e |
| Cable Construction | U/UTP |
| Flammability Rating | CM |
| Resistance Properties | Flame-Retardant |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Nominal Cable Outside Diameter (mm) | 6.3 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 75 |
| Maximum Installation Temperature (°F) | 167 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Sub Brand | IndustrialNet™ |
| Maximum Installation Tension (N) | 110 |
| Maximum Installation Tension (lb) | 25 |
| Bend Radius (In.) | 0.99 |
| Bend Radius (mm) | 25.2 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 24 |
| Insulation Material | High-Density Polyethylene |
| Insulation Diameter (In.) | 0.04 |
| Insulation Diameter (mm) | 1 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds the requirements IEC 61156-6 and ANSI/TIA-568-C.2 Category 5e; Standard compliances: SUN RES OIL RES II (UL1581 Section 480 and 1200); RoHS Compliant |
| Color | Black |
| Packaging Type | Reel |
| Product Type | Copper Cable |
| Part Features | Third party tested, Descending length cable markings, Packaged on a reel |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498383795 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 1.3552 |
| Std. Ctn. Qty. | 24 |
| Std. Ctn. Volume (cf) | 32.5238 |
