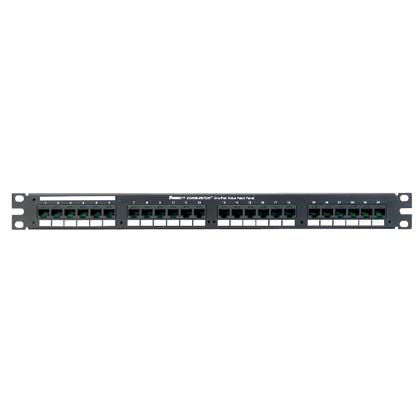

Voice Patch Panel (RJ45 To RJ21), 1 Pair, Flat, 24 Port
VP24382TV25Y
The Voice Patch Panel (RJ45 To RJ21), 1 Pair, Flat, 24 Port is a specialty patch panel with RJ21 connector interface.
Discontinued - Limited Stock
No Replacement
Specifications
| Product Type | Voice Patch Panel |
| Termination Style | RJ21 |
| Patch Panel Style | Flat |
| Material | CRS |
| Number of Ports | 24 |
| Number of Rack Units | 1 |
| Overall Length (In.) | 1.32 |
| Overall Length (mm) | 33.5 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Overall Depth (In.) | 1.32 |
| Overall Depth (mm) | 33.5 |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.7 |
| Sub Brand | Pan-Net® |
| Identification Type | Adhesive Label |
| Color | Black |
| Standards Met | TIA/EIA-606-A labeling standards, EIA standard environmental and electrical performance, CE and RoHS Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498317372 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.1497 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 1.4971 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Specification Sheet - WW-COSP32(Voice Patch Panel SP) | English | |
| Part Drawings | Part Drawing - DWG - VP24382TV25Y | English | |
| Part Drawings | Part Drawing - DXF - VP24382TV25Y | English | |
| Part Drawings | 24 Port Voice Patch One Pair Patch Panel COVP24382TV25Y--ENG | English | |
| Installation Documents | 24-Port One Pair Voice Patch Panel: PN237E | English |
