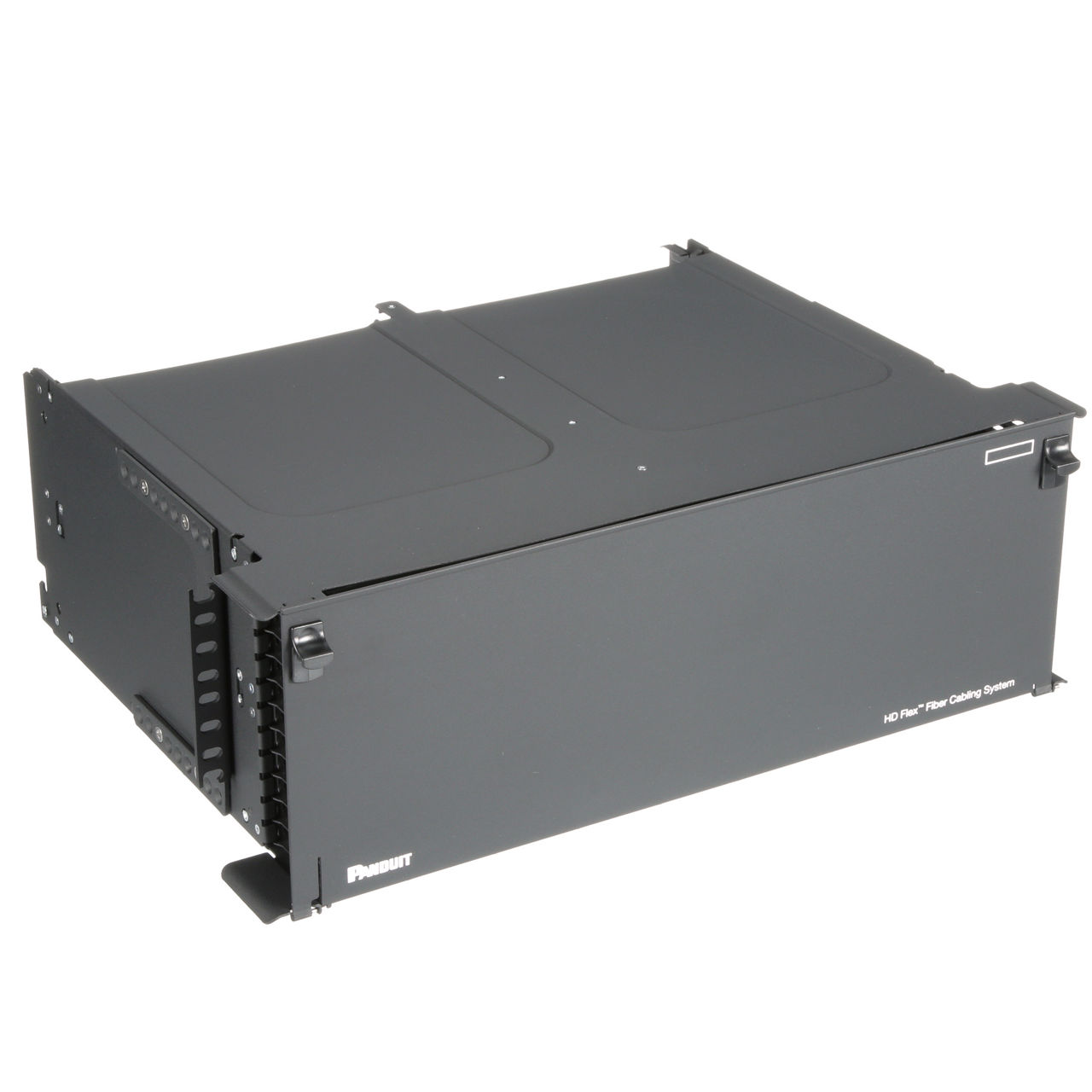

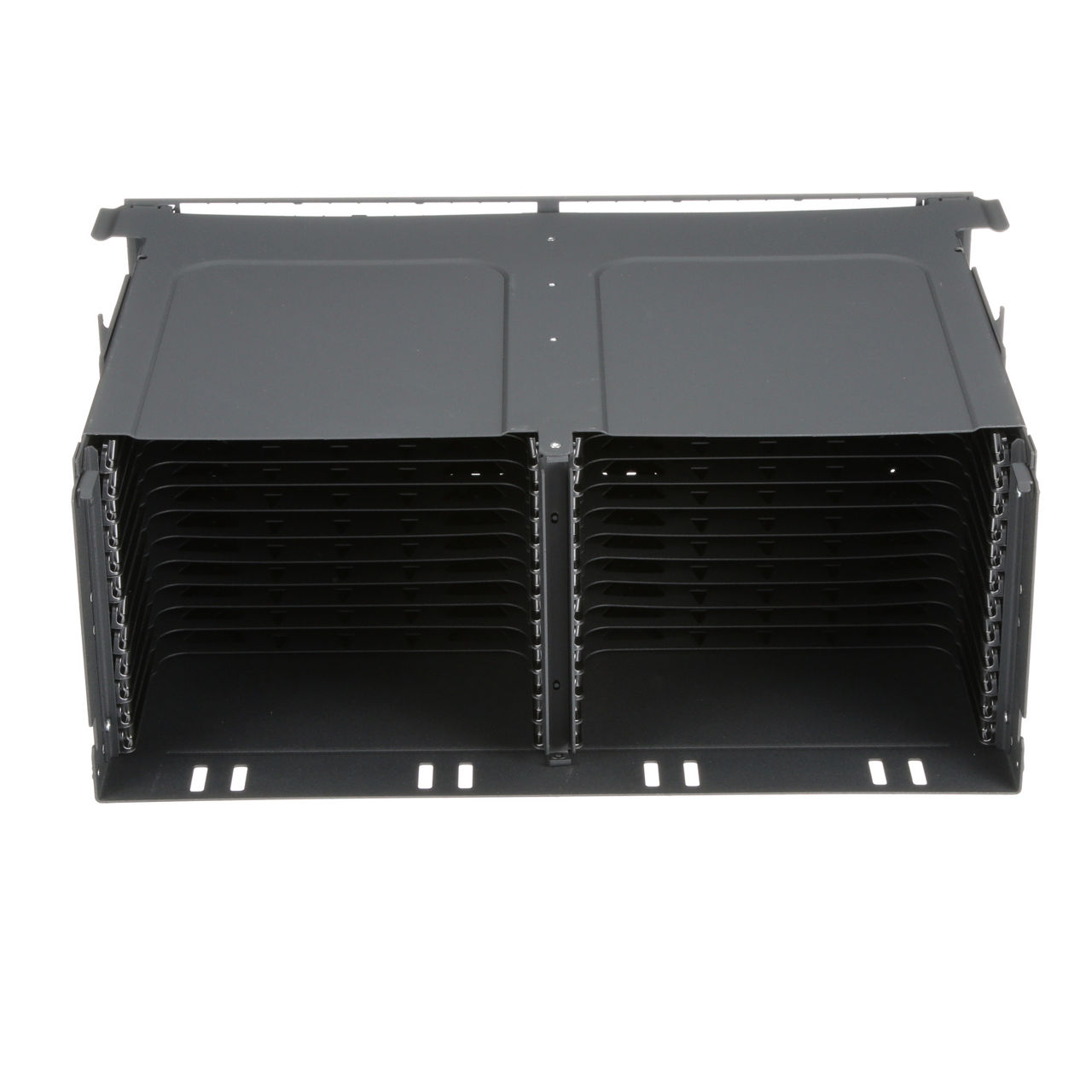

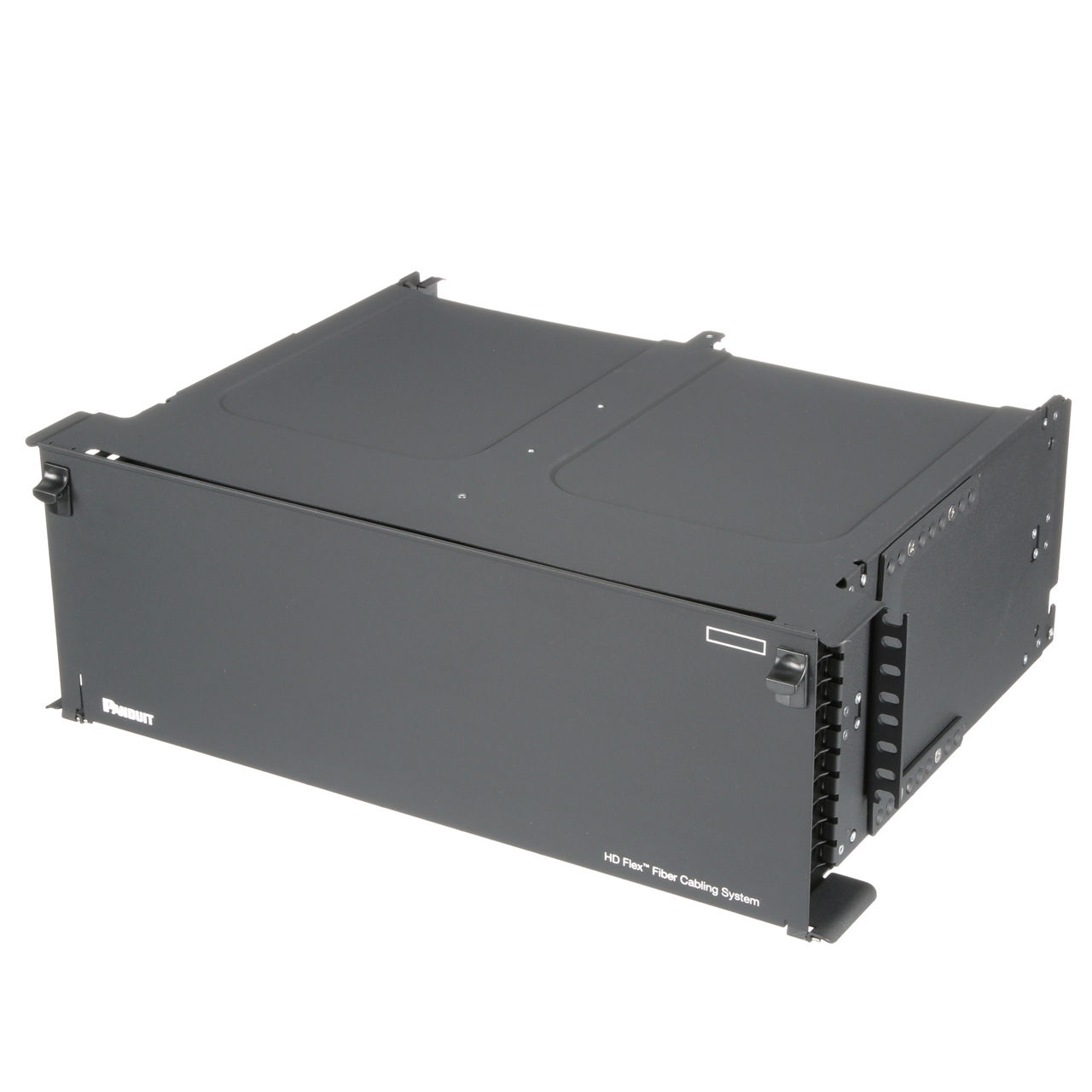

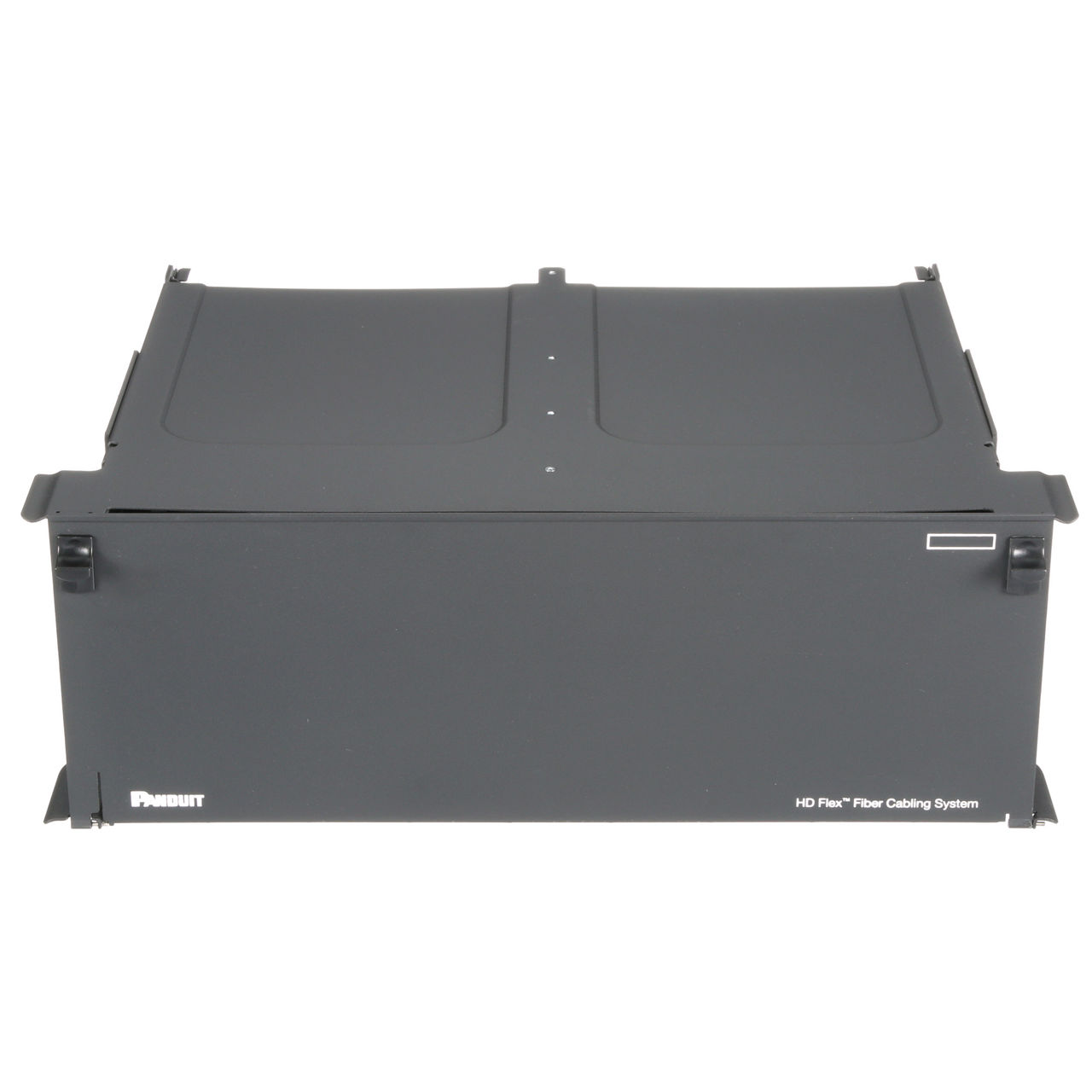

HD Flex™ Fiber Enclosure

HD FLEX 4 RU 12P ENCL

FLEX4U12

Print

Download Available Options

Enhance data center performance with our high-density enclosure. The modular design accepts various cassette sizes and split trays offer flexible cable management to terminations in a single unit.

Number of Rack Units: 4

Color: Black

Select product to view details, compare, or add to list:

HD Flex™ Fiber Enclosure, 4 RU, 6 Port, Black

FLEX4U06

The HD Flex™ Fiber Enclosure is 4 RU and is configured to accept 6 port HD Flex™ cassettes. The modular design accepts up to 12 HD Flex Fiber Cassettes per RU or Fiber Adapter Panels for a maximum density of 144 fibers per RU.

HD FLEX 4 RU 12P ENCL

FLEX4U12

The HD Flex™ Fiber Enclosure is 4 RU and is configured to accept 12-port HD Flex™ cassettes. The modular design accepts up to 24 HD Flex Fiber Cassettes or Fiber Adapter Panels for a maximum density of 576 fibers.

HD FLEX 4 RU 4P ENCL

FLEX4U04

The HD Flex™ Fiber Enclosure is 4 RU and is configured to accept 4-port HD Flex™ cassettes. The modular design accepts up to 72 HD Flex Fiber Cassettes or Fiber Adapter Panels for a maximum density of 576 fibers.

HD Flex™ Fiber Enclosure

FLEX4U

HD Flex™ Fiber Enclosure, 4RU, Black.

Select all options above to proceed

Add to List

Compare

Find a Distributor

HD FLEX 4 RU 12P ENCL

Specifications
Runtime Graph
Packaging Detail
Resources
Frequently Bought Together
Top of Page

Specifications

Product Type	Fiber Enclosure
Material	Steel/Plastic
Number of Rack Units	4
Overall Depth (In.)	15.11
Overall Depth (mm)	383.7
Overall Width (In.)	19.69
Overall Width (mm)	500.1
Overall Height (In.)	6.63
Overall Height (mm)	168.4
Standards Met	RoHS compliant
Sub Brand	HD Flex™
Application	Fiber Optic Cable Management
Color	Black
Part Features	Modular design accepts up to 12 HD Flex Fiber Cassettes or Fiber Adapter Panels per rack unit, Compatible with all HD Flex Fiber Cassettes and Fiber Adapter Panels, Rack/Cabinet Rail Mounting Cable Management Bracket, Front and Rear Accessible Enclosure Tray, Split Enclosure Tray, Multi-positional Enclosure Tray.

Runtime Graph

Configuration

Packaging Detail

UPC	61305614600
Std. Pkg. Qty.	1
Std. Pkg. Volume (cf)	2.7488
Std. Ctn. Qty.	0
Std. Ctn. Volume (cf)	0.0000

Resources

NOTE: Not all resources are available in your language.

If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.

Language

Specification Sheets	HD Flex™ Fiber Enclosures Specification Sheet FBSP92-WW-ENG	English	View PDF (325.74KB) Download PDF Share PDF
Specification Sheets	Distribuidores de Fibra HD Flex™ Hoja de Especificaciones FBSP92	Spanish (Español)	View PDF (160.40KB) Download PDF Share PDF
Data Sheets	Fiber Splicing Component Matrix Data Sheet FBFL37	English	View PDF (133.69KB) Download PDF Share PDF
Videos	HD Flex™ Enclosures Video	English	View MP4 (66.31MB) Download MP4 Share MP4
Videos	HD Flex Enclosures Installation Video	English	View MP4 (128.55MB) Download MP4 Share MP4
Part Drawings	HD Flex™ 4 RU Enclosure (FLEX4U12): DWG	English	View DWG (468.85KB) Download DWG Share DWG
Part Drawings	HD Flex™ 4 RU Enclosure (FLEX4U12): DXF	English	View DXF (4.06MB) Download DXF Share DXF
Part Drawings	HD Flex™ 4 RU Enclosure (FLEX4U**) Part Drawing 12F187UR-DC	English	View PDF (300.32KB) Download PDF Share PDF
Installation Documents	HD Flex Fiber Cassette Enclosures Installation Instructions FS127A	English	View PDF (2.64MB) Download PDF Share PDF
Brochures	HD Flex™ Fiber Cabling System	English	View PDF (23.43MB) Download PDF Share PDF
Selection Guides	HD Flex™ Fiber Cabling System Ordering Guide: D-FBCB45--SA-ENG	English	View PDF (1.59MB) Download PDF Share PDF
