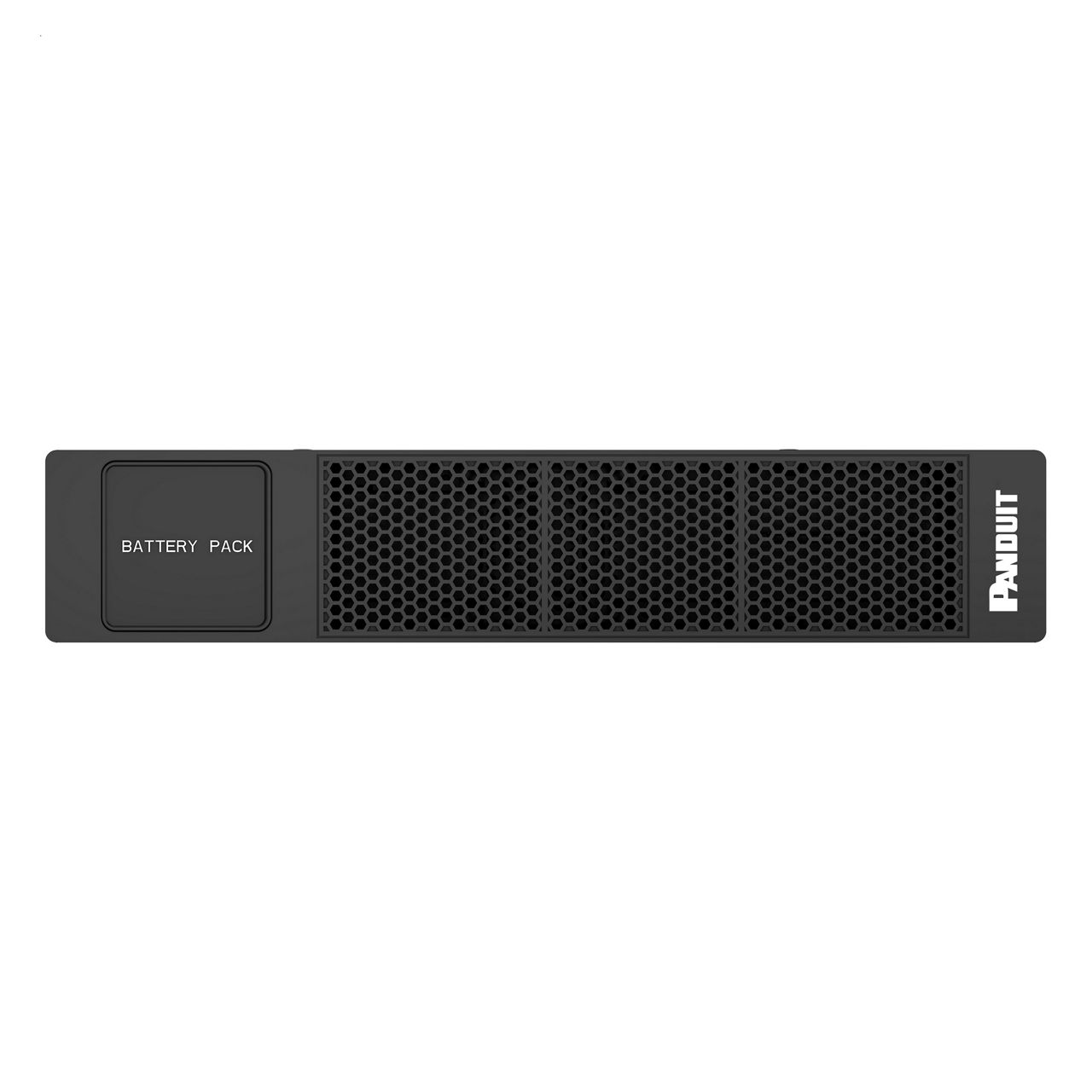

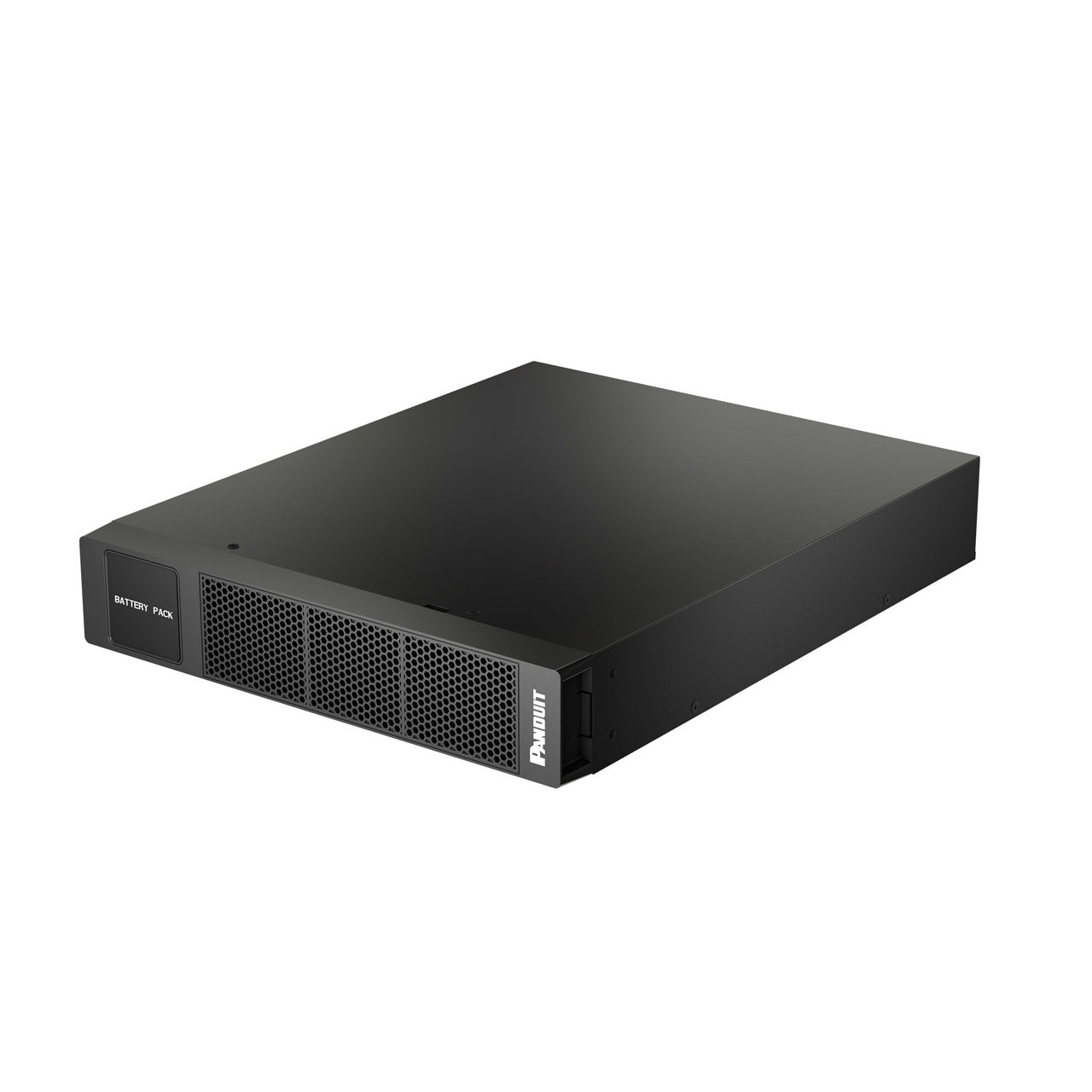

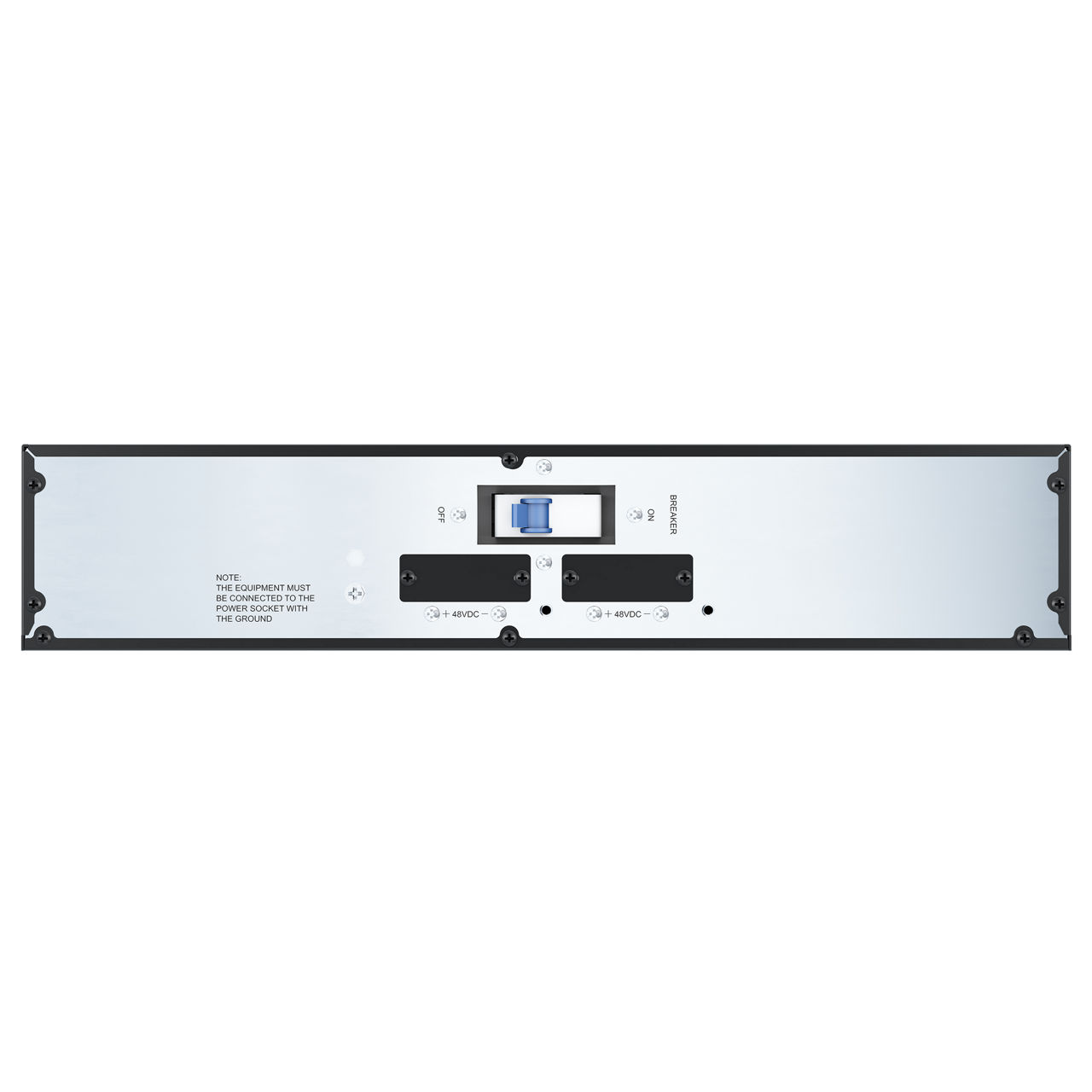

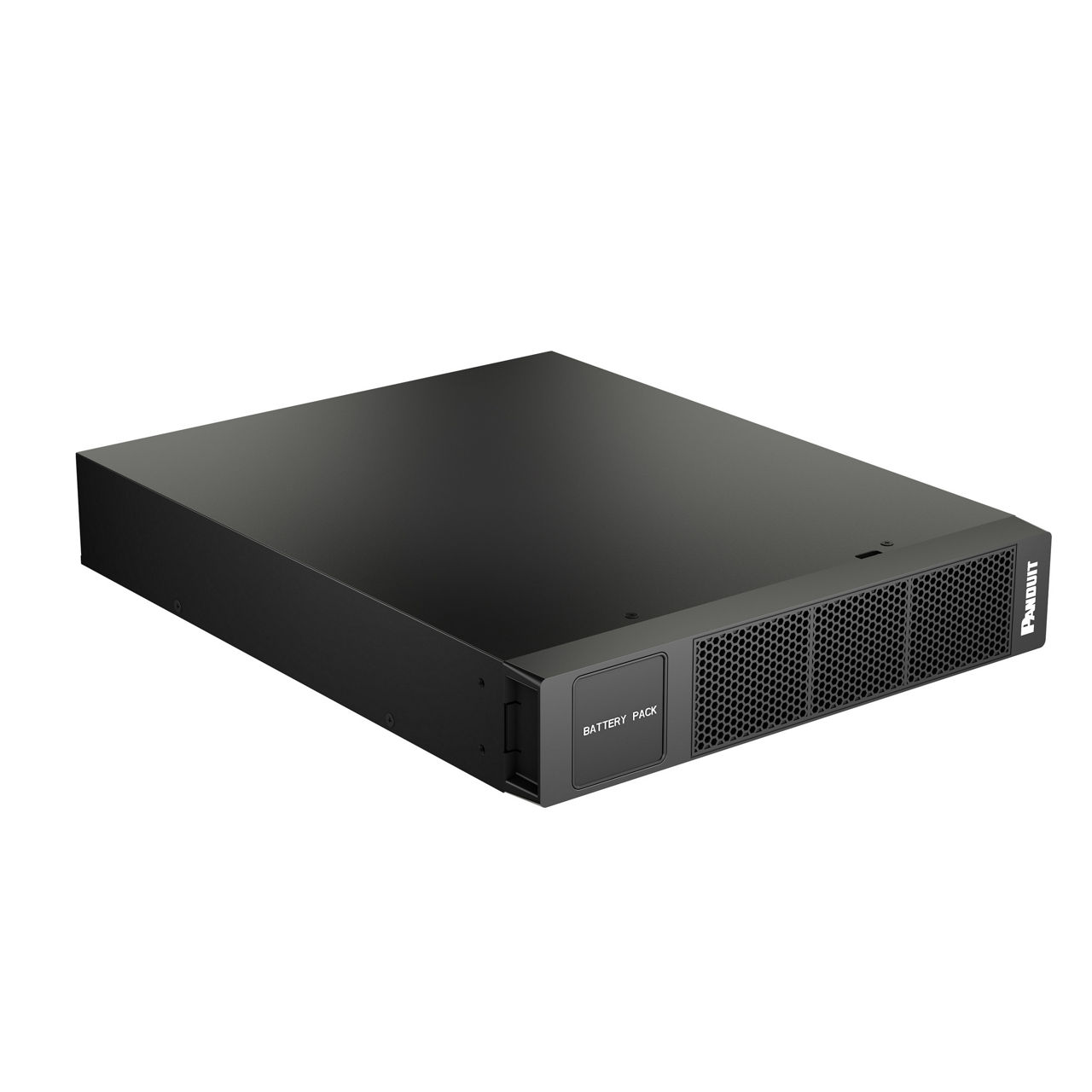

VRLA External Battery Pack
UPS External Battery Pack 48V chassis & batteries
UVP048
Ideal for critical systems requiring continuous power capacity, our VRLA external battery pack extends your UPS runtime and reliability.
Nominal Output Voltage (V): 48
Need help selecting the right product for you? Visit our Guided Selection Tool to find a Panduit solution that fits your needs.
Specifications
| Product Type | External Battery Pack |
| Sub Brand | SteadySine™ |
| Nominal Output Voltage (V) | 48 |
| Battery Type | VRLA |
| Battery Voltage (V dc) | 48 |
| Internal Battery Replacement Method | Hot Swap |
| Internal Replacement Battery Cartridge | UVD048 |
| Mount Orientation | Horizontal/Vertical |
| Number of Rack Units | 2 |
| Overall Depth (In.) | 21.65 |
| Overall Depth (mm) | 550 |
| Overall Height (In.) | 3.4 |
| Overall Height (mm) | 86.5 |
| Overall Width (In.) | 17.3 |
| Overall Width (mm) | 440 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Power Module Minimum Storage Temperature (°C) | -25 |
| Power Module Minimum Storage Temperature (°F) | -13 |
| Power Module Maximum Storage Temperature (°C) | 40 |
| Power Module Maximum Storage Temperature (°F) | 104 |
| Minimum Relative Humidity (%) | 0 |
| Maximum Relative Humidity (%) | 95 |
| Operating Elevation (ft.) | 9843 |
| Operating Elevation (m) | 3000 |
| Cold Start Support | Yes |
| Grounding Method | Lug |
| Compliance Certifications | cULus: UL 1778 5th Edition, CSA C22.2 No.107.3-14, NoM, CE, UKCA, RCM, RETIE ISTA Procedure 2B |
| For Use With | U02S12V, U02S11V, U02N12V, U02N11V |
| Product Warranty Period (Worldwide) | 2 Years |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 61305682561 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 4.7225 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
