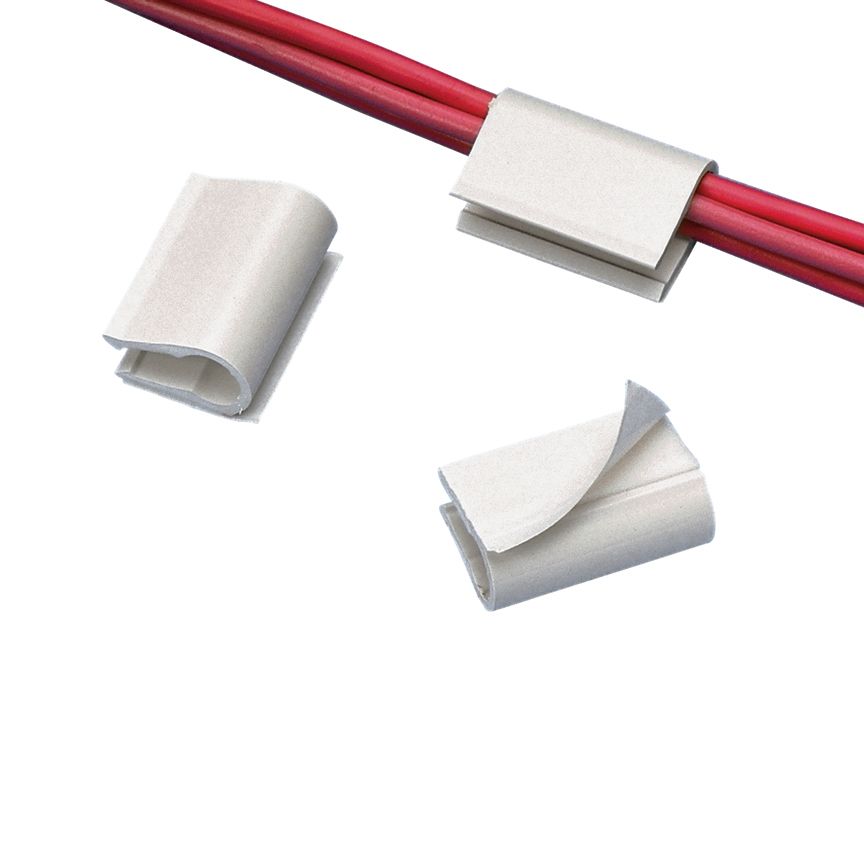

Adhesive Backed High Temperature Dual Cord Clip
ADCC31-AT-C10 Wire Clip
ADCC31-AT-C10
Our adhesive backed dual cord clip keep wires neat and secure, even in high-temperature environments like automotive, data centers, and other industrial settings.
Specifications
| Product Type | Wire Clip |
| Application | Route and Secure Cords and Cables |
| Adhesive Material | Acrylic |
| Body Material | NORYL |
| Color | White |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.33 |
| Maximum Bundle Diameter (mm) | 9 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 0.68 |
| Overall Length (mm) | 17.3 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Standards Met | RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.113 |
| Vertical Static Load Capacity (lb) | 0.25 |
| Horizontal Static Load Capacity (kg) | 0.113 |
| Horizontal Static Load Capacity (lb) | 0.25 |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498358527 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0462 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.2309 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Videos | Cable Accesories Overview Video 16:9 | English | |
| Part Drawings | ADCC31-At Adhesive Dual Cord Clip Part Drawing GB0239FR | English |
