Discontinued
It is the buyer’s responsibility to determine if the suggested replacement part is suitable for your application and intended use. Suggested Replacement Parts:
Select all options above to proceed

Specifications

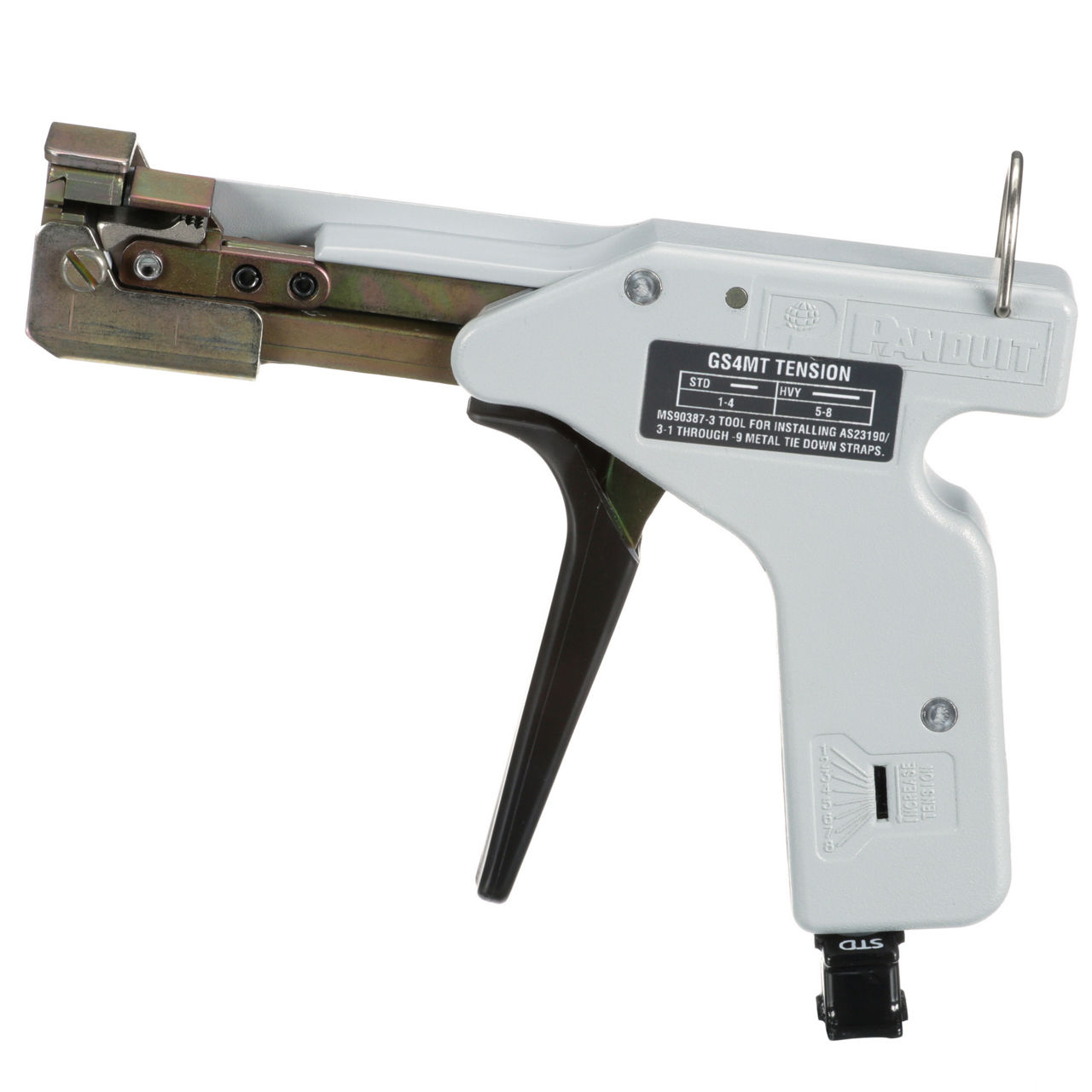

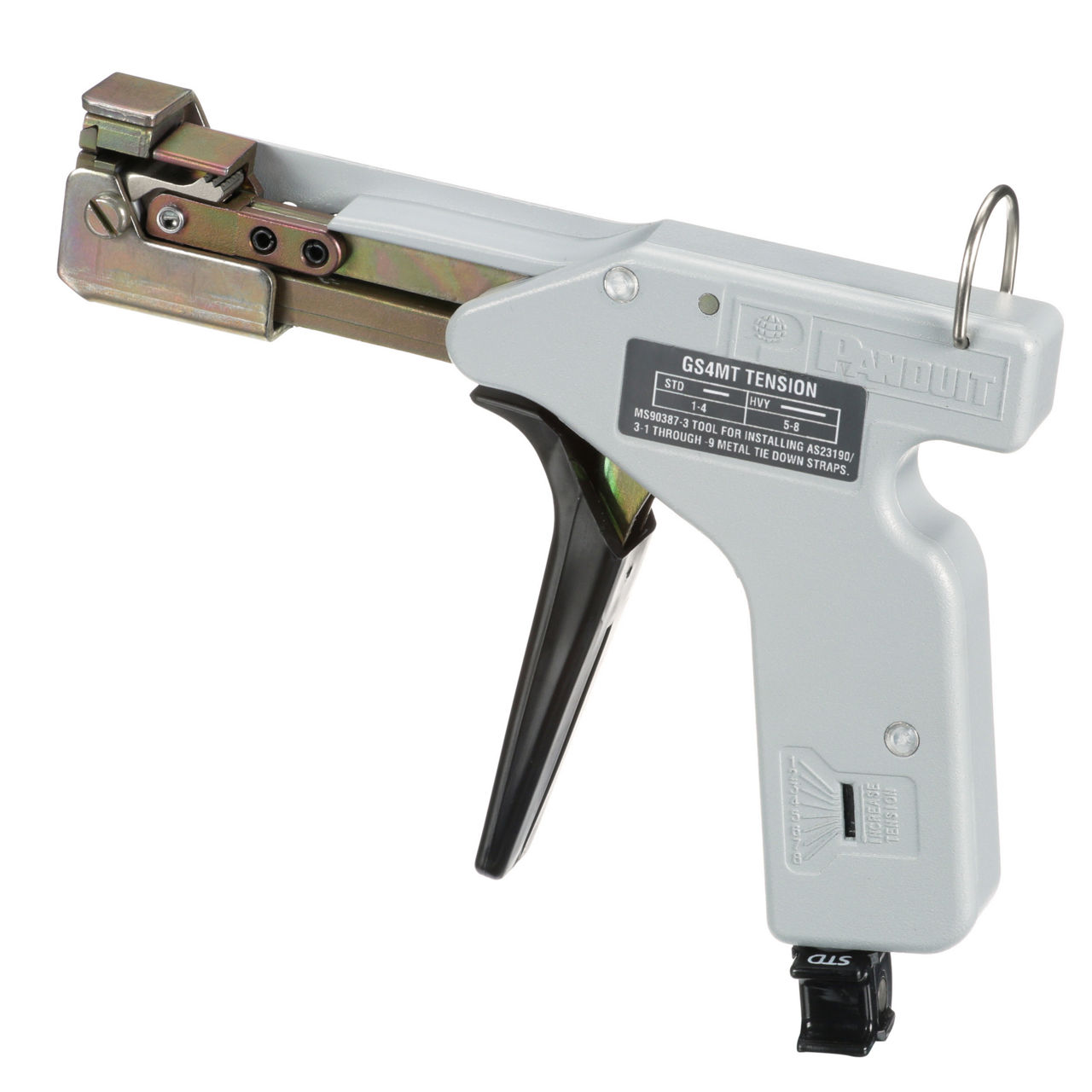

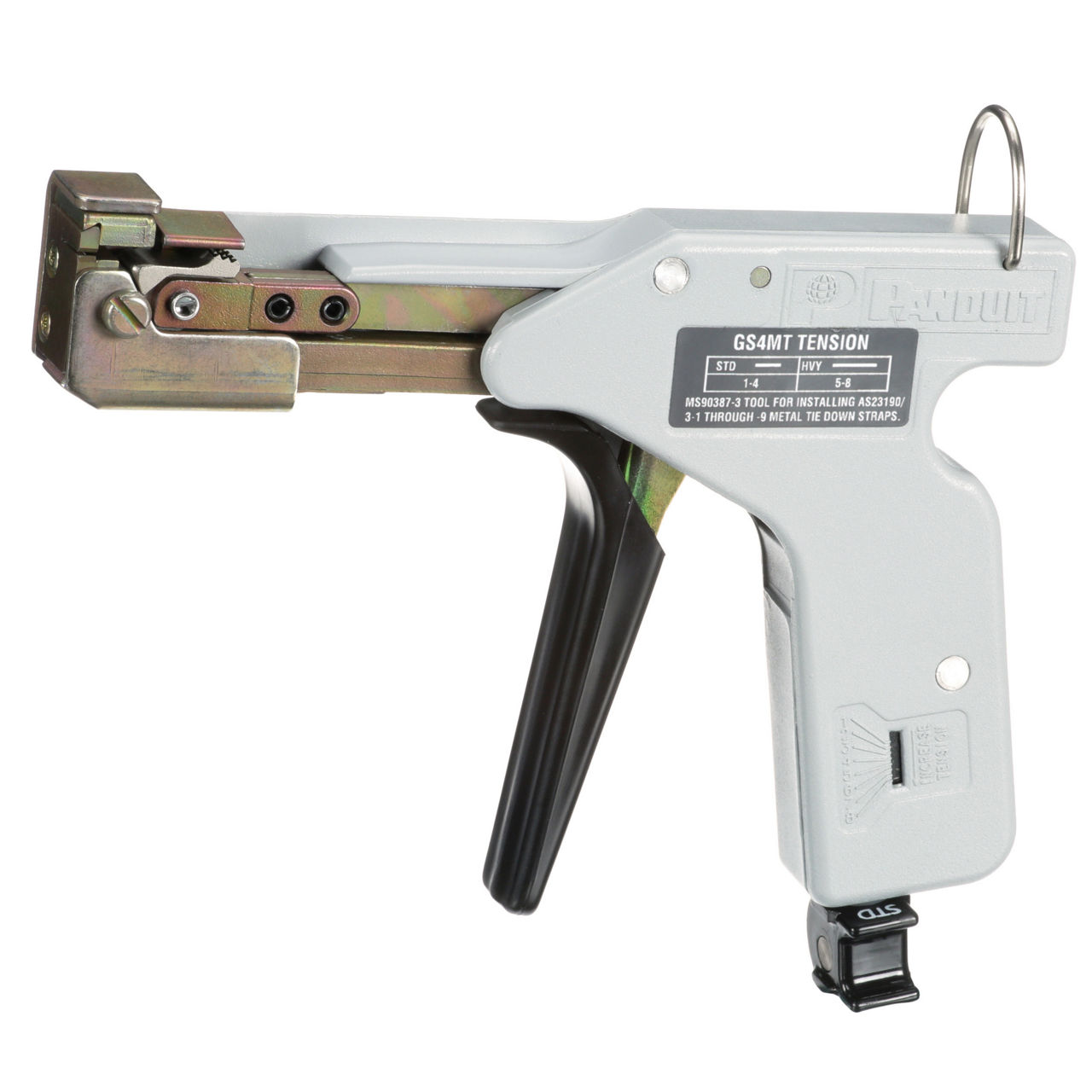

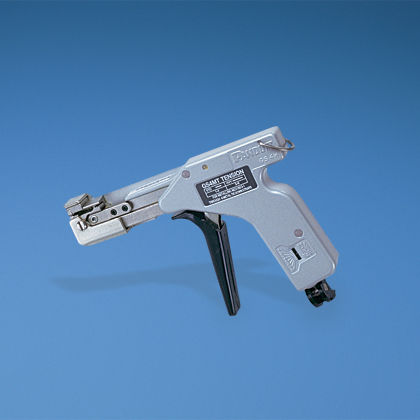

Product Type Stainless Steel Cable Tie Tool
Application Installation tool for stainless steel cable ties
Color Gray
For Use With Pan-Steel Cable Ties
Sub Brand Pan-Steel®
Overall Length (In.) 6.88
Overall Length (mm) 174.8
Overall Width (In.) 1.08
Overall Width (mm) 27.4
Overall Height (In.) 5.42
Overall Height (mm) 137.7
Tension Type Controlled Tension
Tool Type Manual clipping
Part Features Single handle operation for fast installation; Cable tie side entry for immediate positioning of tie and tool; controlled tension, fully adjustable; Easy removal of excess tie; Qualified product listed per MIL Standard MS90387-3; Automatically tensions and cuts off tie when predetermined tension is reached; Installs standard .18 inch (4.6mm), light-heavy .25 inch (6.4mm) and heavy .31 inch (7.9mm) cross section ties.

Runtime Graph

Configuration

Packaging Detail

UPC 07498376045
Std. Pkg. Qty. 1
Std. Pkg. Volume (cf) 0.0628
Std. Ctn. Qty. 0
Std. Ctn. Volume (cf) 0.0000
