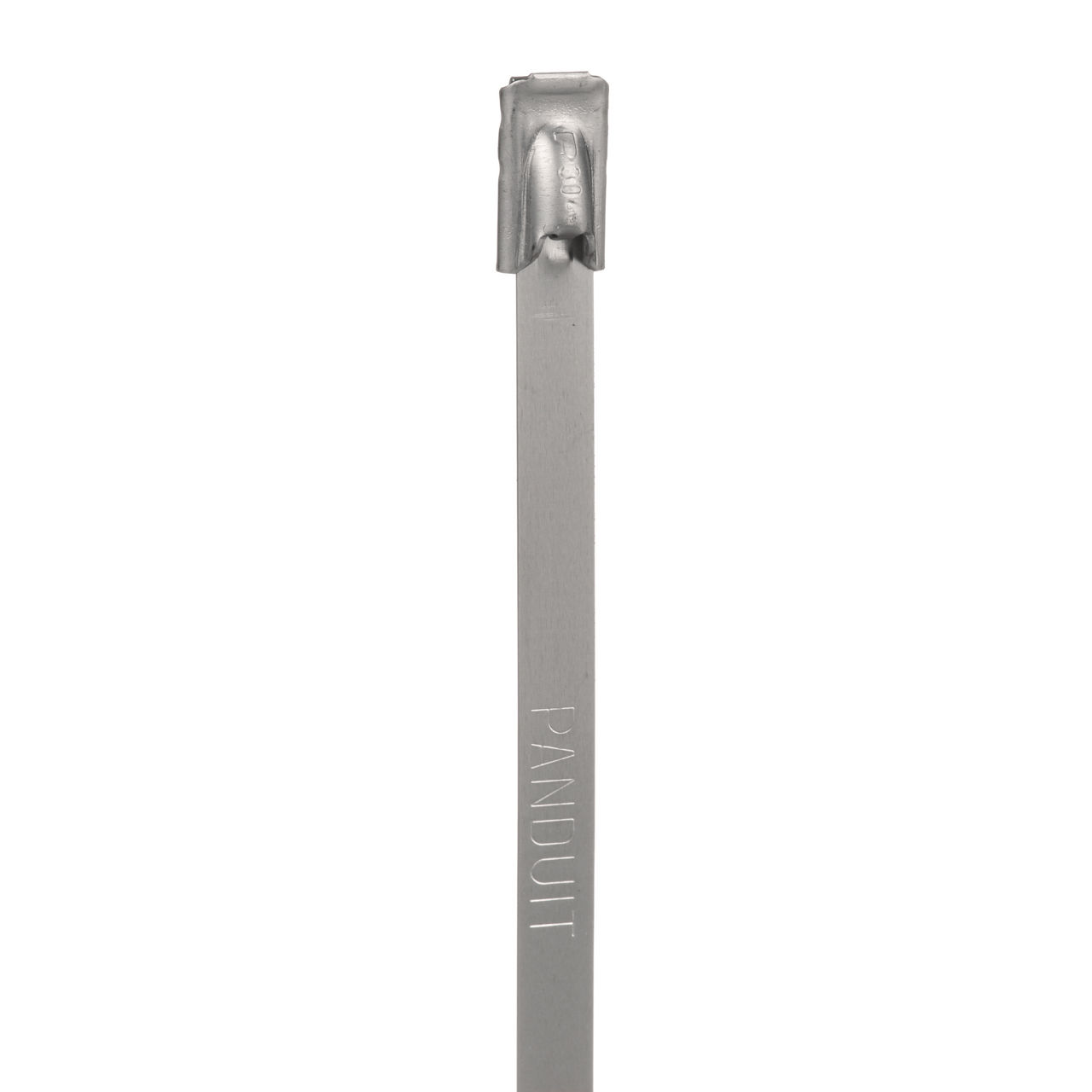

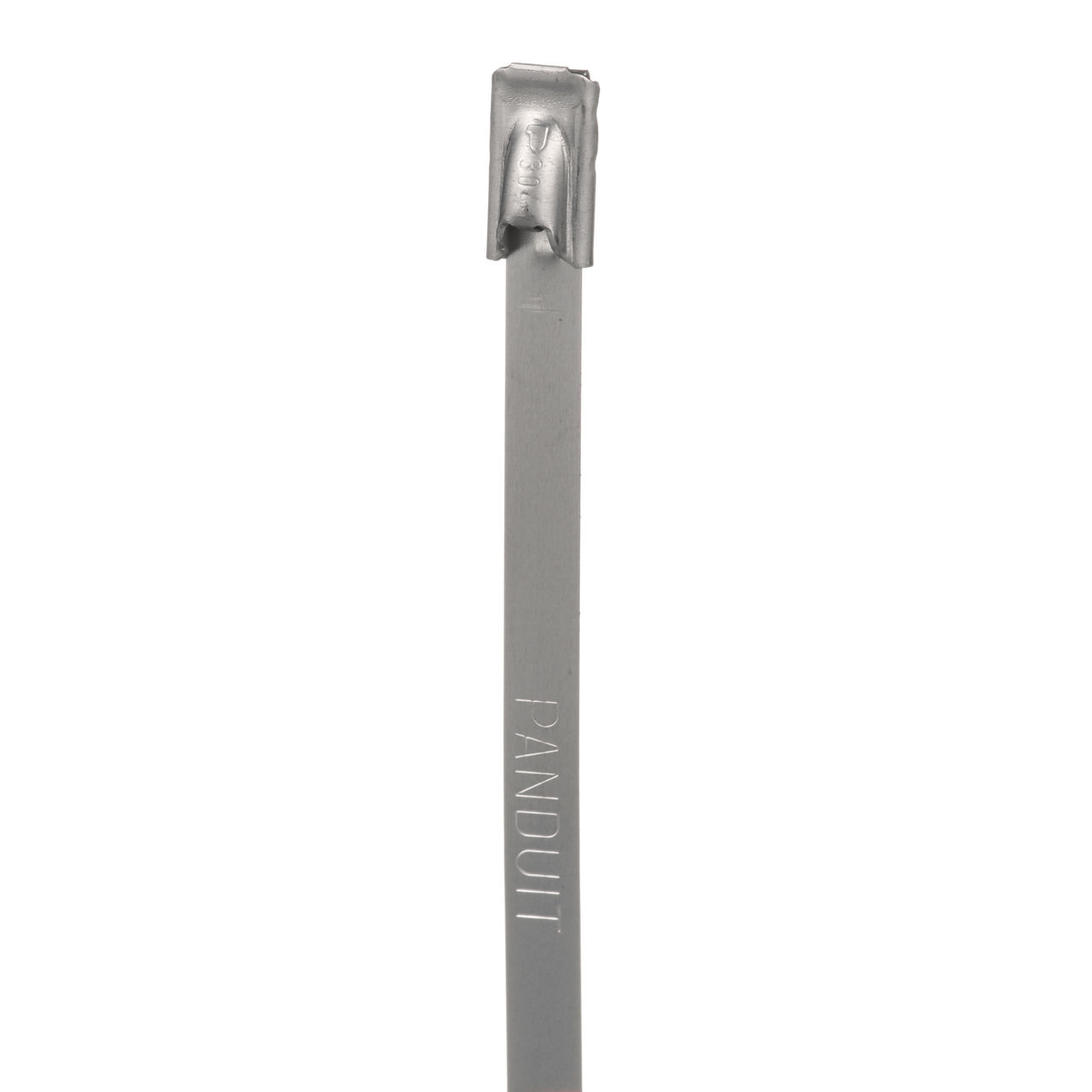

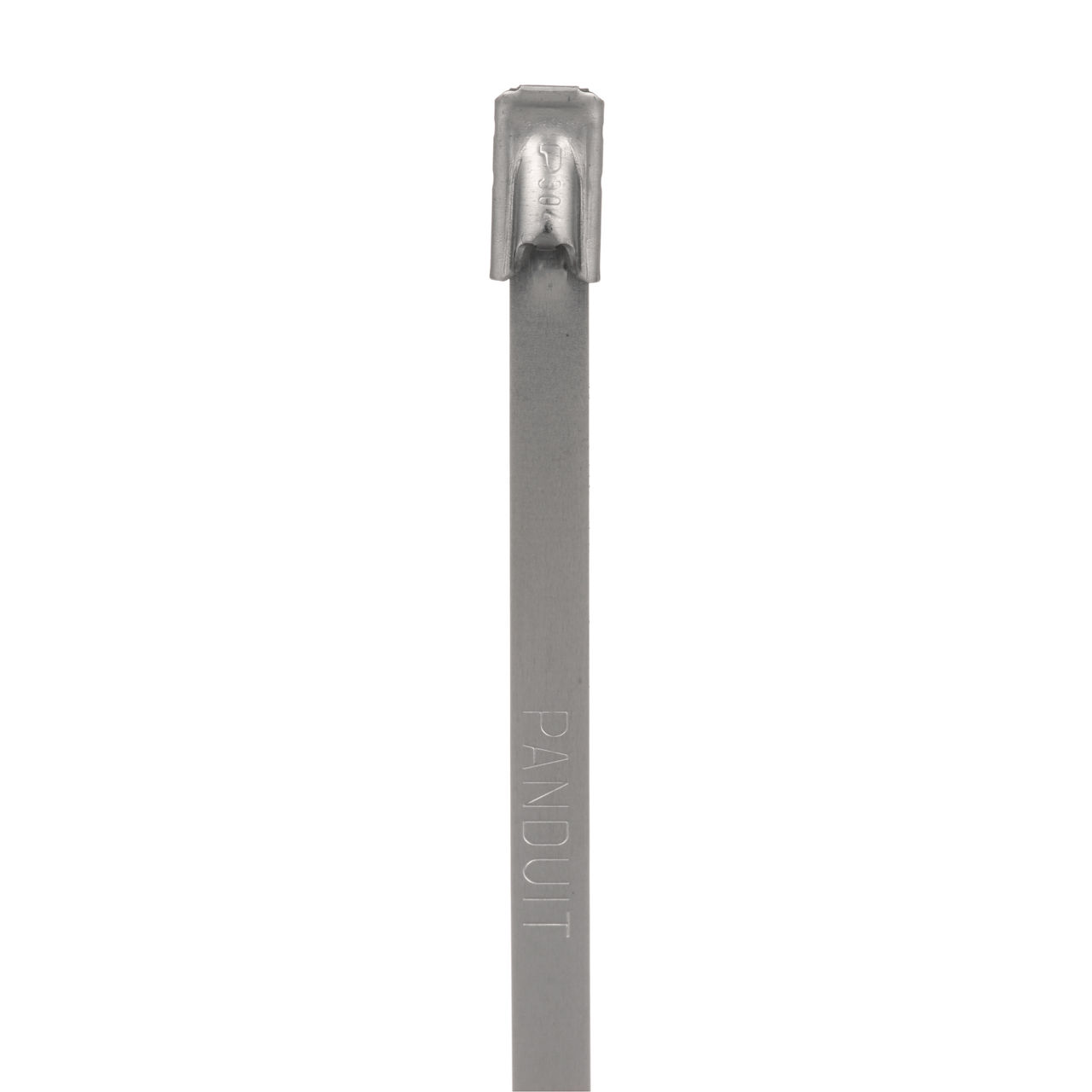

Pan-Steel® Self-Locking Cable Tie
Pan-Steel® MLT4S-CP Cable Tie, SS 304, Standard, 4" Dia., PK100
MLT4S-CP
Master complex cable management projects with our self-locking cable tie. Built from stainless steel for maximum durability, it excels in extreme conditions.
Minimum Loop Tensile Strength (lb): 200
Maximum Bundle Diameter (In.): 4
Material: Stainless Steel Type 304
Std. Pkg. Qty.: 100
Specifications
| Product Type | Cable Tie |
| Sub Brand | Pan-Steel® |
| Color | Metallic |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 362 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 890 |
| Minimum Loop Tensile Strength (lb) | 200 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,SAE,BV,LR,DNV |
| Military Cross Reference Number | M23190/3-2 |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | General |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498354402 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0238 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.1191 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Product Bulletins | Panduit Permanent Identification System Product Bulletin SSCB35--SA-ENG | English | |
| Videos | Stainless Steel Cable Tie Easy of Installation Comparison Video | English | |
| Videos | Panduit Self Locking Stainless Ties vs. Competitor Band/Buckle Video 16:9 MBH-MR | English | |
| Part Drawings | Metal Locking Tie Standard Series 304 N41119BS | English | |
| Application Guides | Stainless Steel Application Guide SSAG04--SA-ENG | English |
