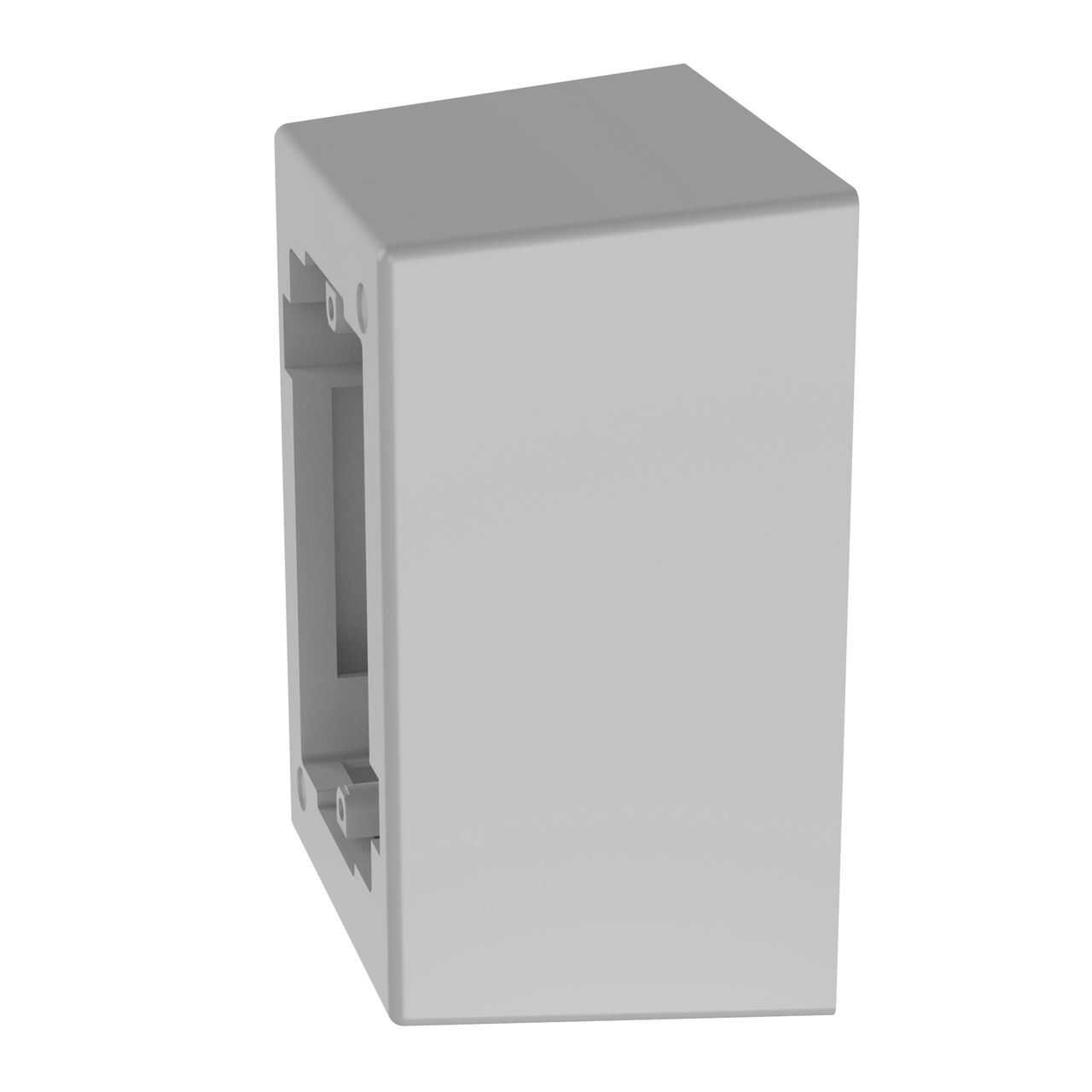

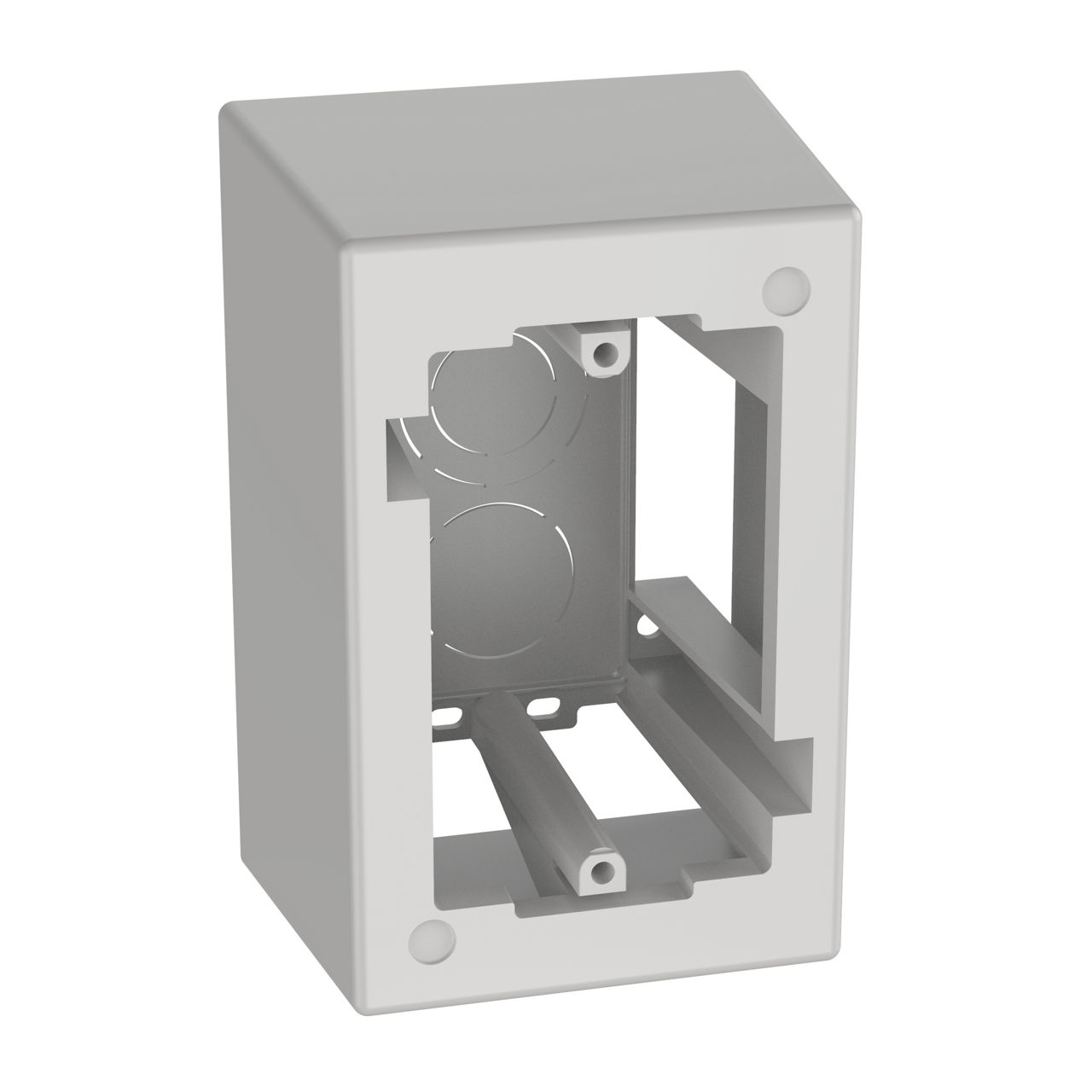

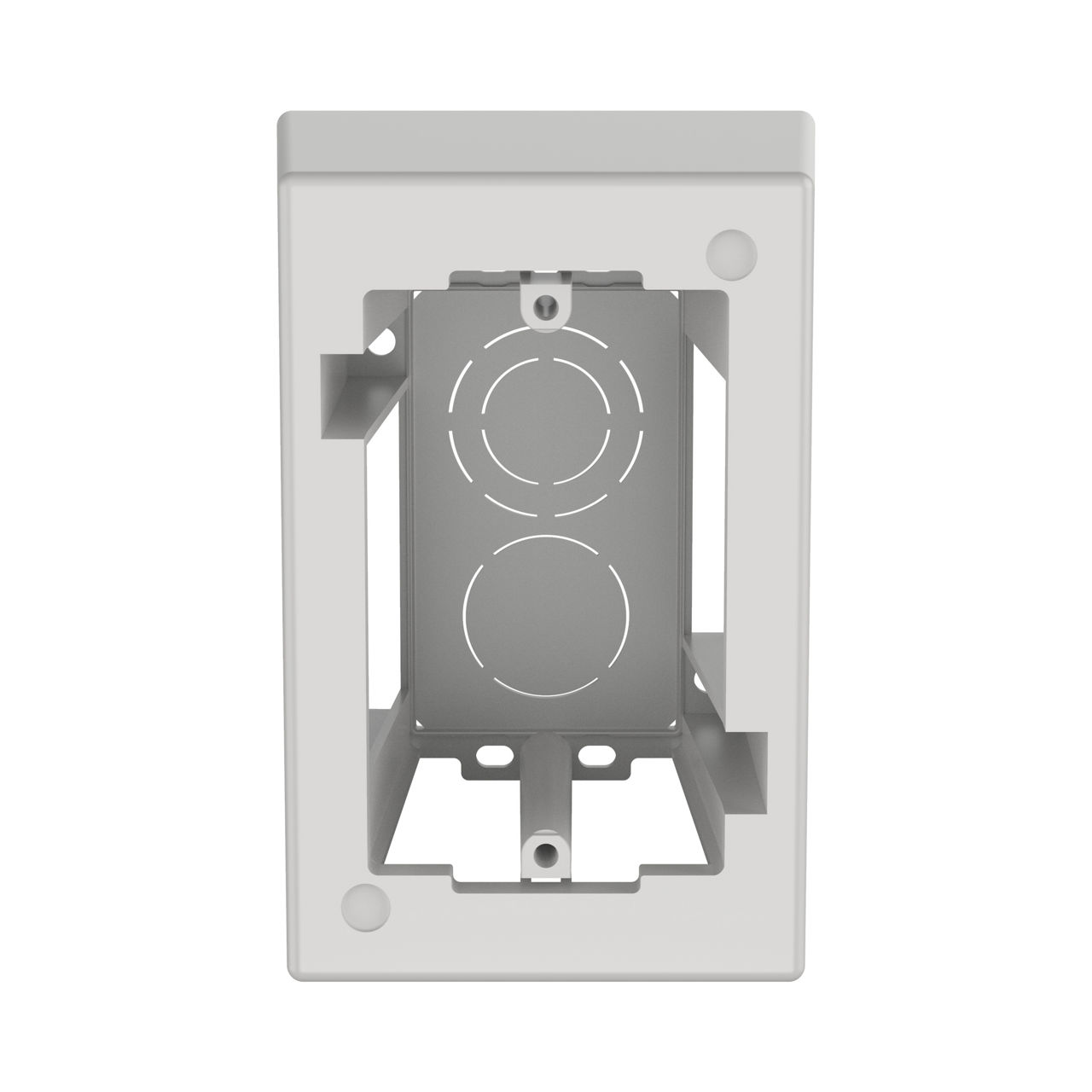

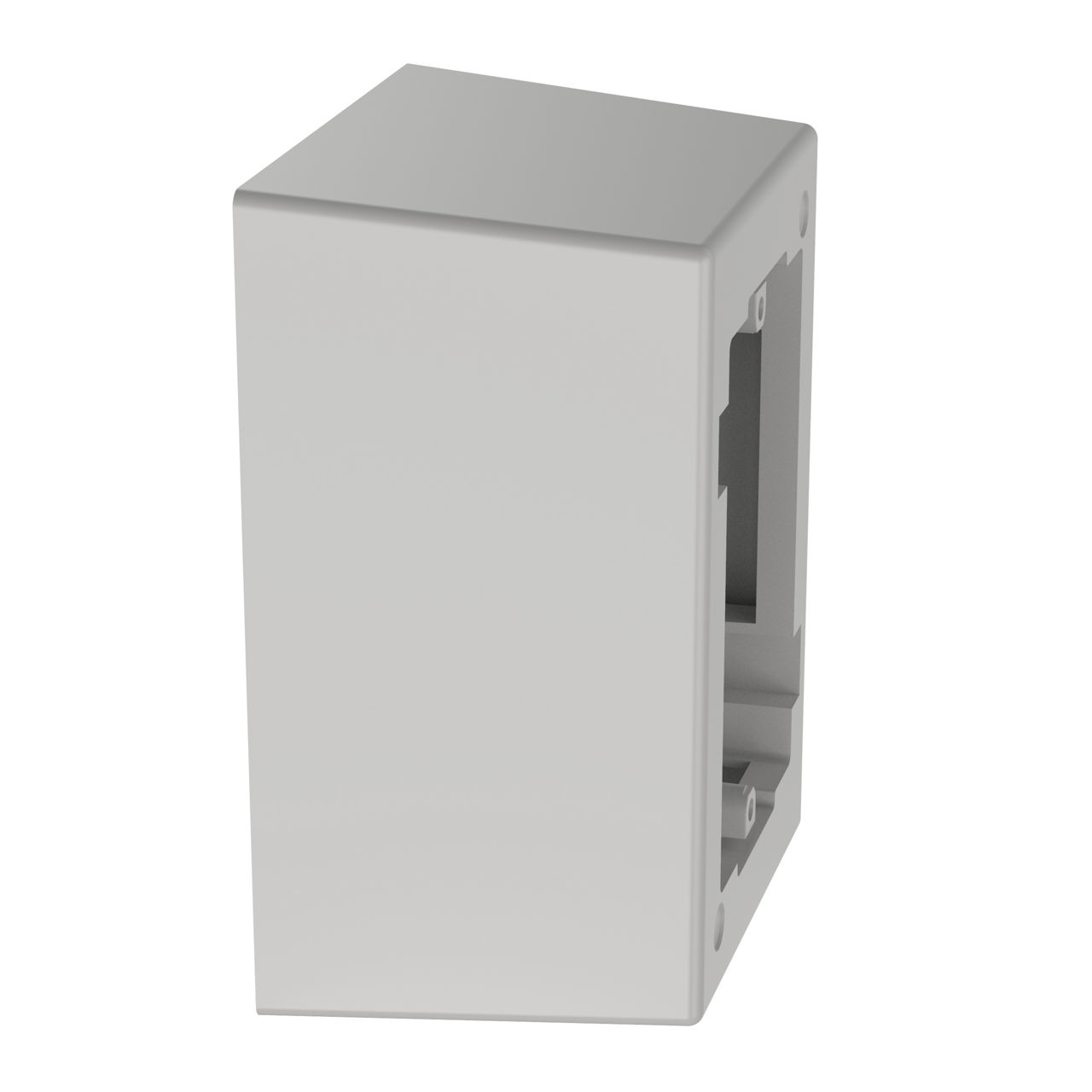

One-Piece Deep Junction Box, Low Voltage
Surface Raceway, Low Voltage Junction Box, 1-gang, White
JB1DWH-A
Simplify your low voltage installations with our one-piece deep junction box, featuring an adhesive backing for quick and easy installation and ideal for applications with higher wire density.
Color: White
Specifications
| Product Type | Junction Box |
| Color | White |
| Gang Opening Type | Single Gang |
| Material | ABS |
| Raceway Type | One-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Sub Brand | Pan-Way® |
| Overall Length (In.) | 5.23 |
| Overall Length (mm) | 133 |
| Overall Width (In.) | 3.48 |
| Overall Width (mm) | 88.5 |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.8 |
| Application | 1 Piece Junction Box |
| Part Features | Single gang one-piece deep outlet box with adhesive backing. (L=5.23in. W=3.48in. H=2.75in.) Box accepts Pan-Way screw-on faceplates or any NEMA standard 70mm single gang faceplate. |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498358293 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0744 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.7435 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Pan-Way® LD Surface Raceway System Spec Sheet RKSP229 | English | |
| Part Drawings | Part Drawing - DWG - JB1D-A_35541-54 | English | |
| Part Drawings | One Piece Junction Box Part Drawing 35541-53 | English | |
| Brochures | Canaleta de Superficie Pan-Way ® Folleto SRLC02 | Spanish (Español) | |
| Line Cards | Pan-Way® Surface Raceway Linecard SRLC02--WW-ENG | English |
