Pan-Lug™ Aluminum In-Line Splicer-Reducer

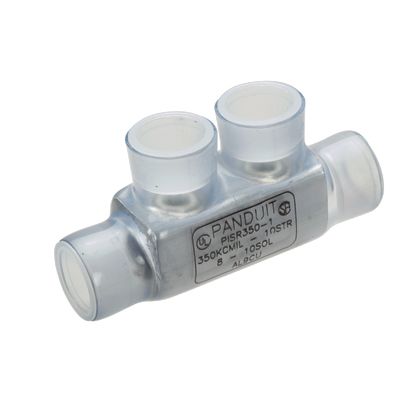

Pan-Lug™ PISR250-1 Multi-Tap Con, In-Line Splicer/Reducer, Tin Plt Al, PK1
PISR250-1
Our aluminum in-line splicer-reducer connects and reduce different wire sizes in electrical panels with its durable, with tin-plated construction and compact design.
Maximum Copper Conductor Size (AWG STR): Unspecified
Maximum Copper Conductor Size (kcmil): 250
Specifications
| Product Type | In-Line Splicer/Reducer Multi-Tap Connector |
| Base Material | Aluminum |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG SOL) | 8 |
| Maximum Copper Conductor Size (kcmil) | 250 |
| Minimum Copper Conductor Size (AWG SOL) | 10 |
| Minimum Copper Conductor Size (AWG STR) | 10 |
| Maximum Aluminum Conductor Size (kcmil) | 250 |
| Minimum Aluminum Conductor Size (AWG) | 10 |
| Insulation Material | Blue PVC |
| Screw Type | Hex |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.75 |
| Overall Height (In.) | 2.24 |
| Overall Height (mm) | 56.9 |
| Standards Met | UL listed and CSA certified for use up to 600V & UL Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Wire Strip Length (In.) | 1.12 |
| Wire Strip Length (mm) | 28.5 |
| Sub Brand | Pan-Lug™ |
| Part Features | Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation |
