NetKey® Classic Faceplate

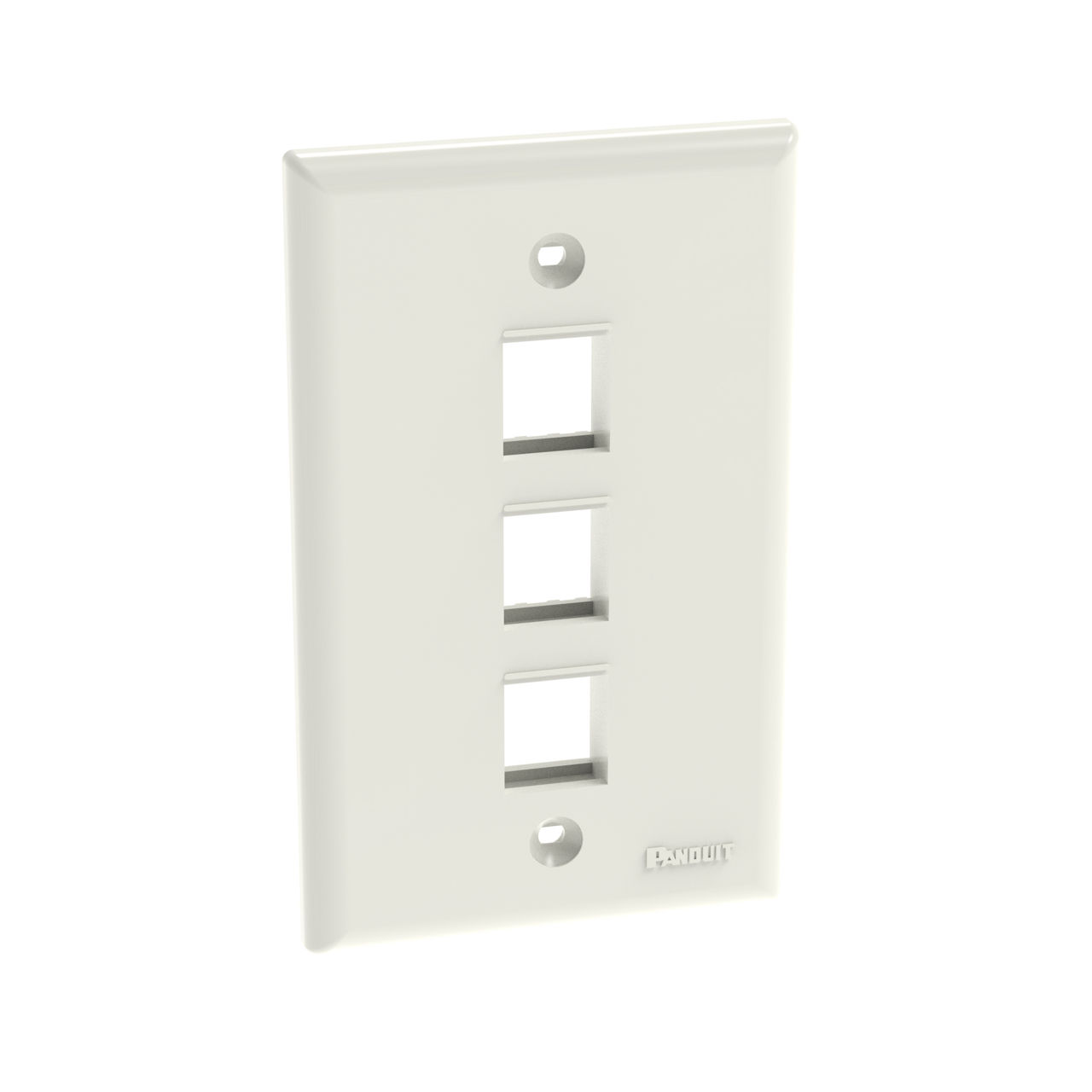

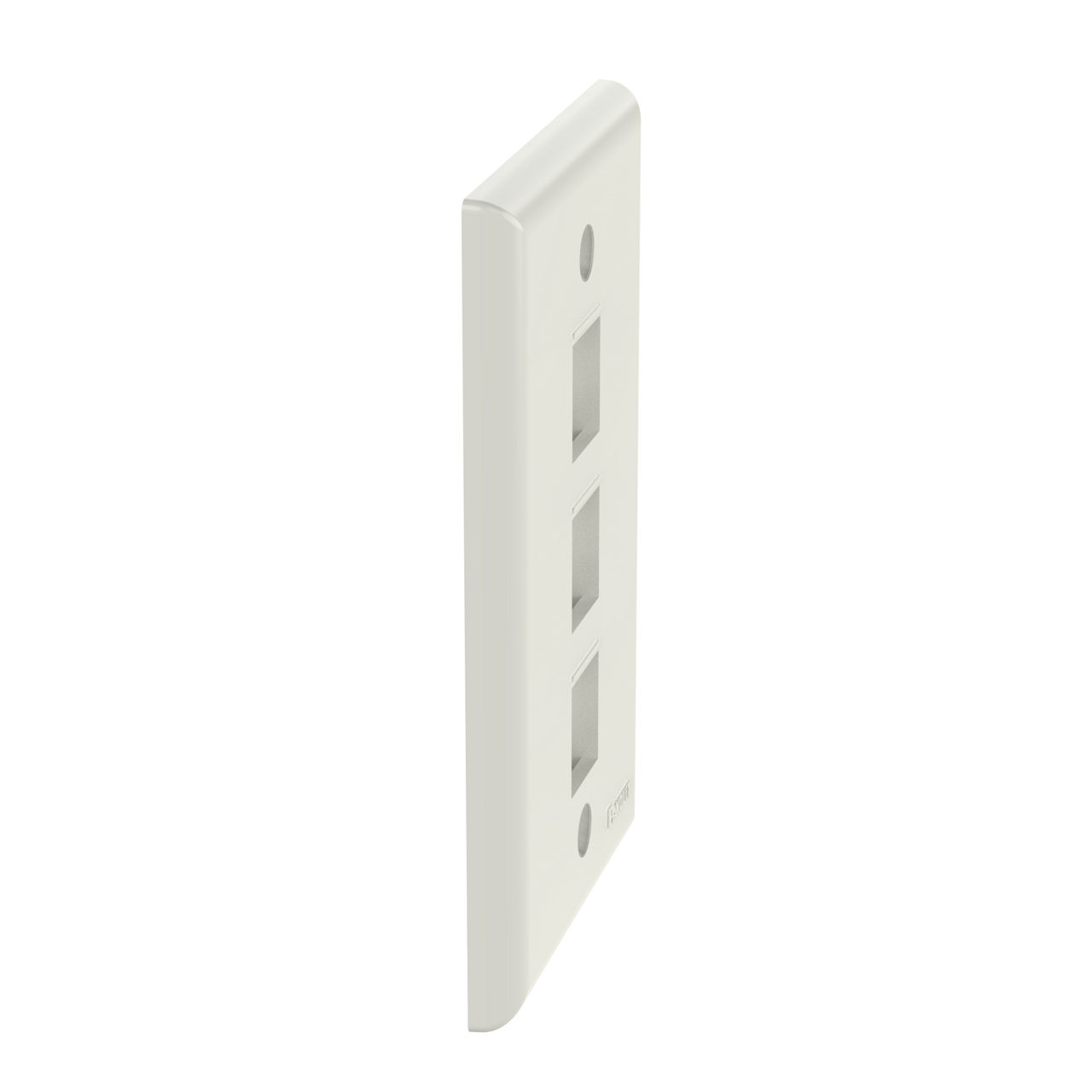

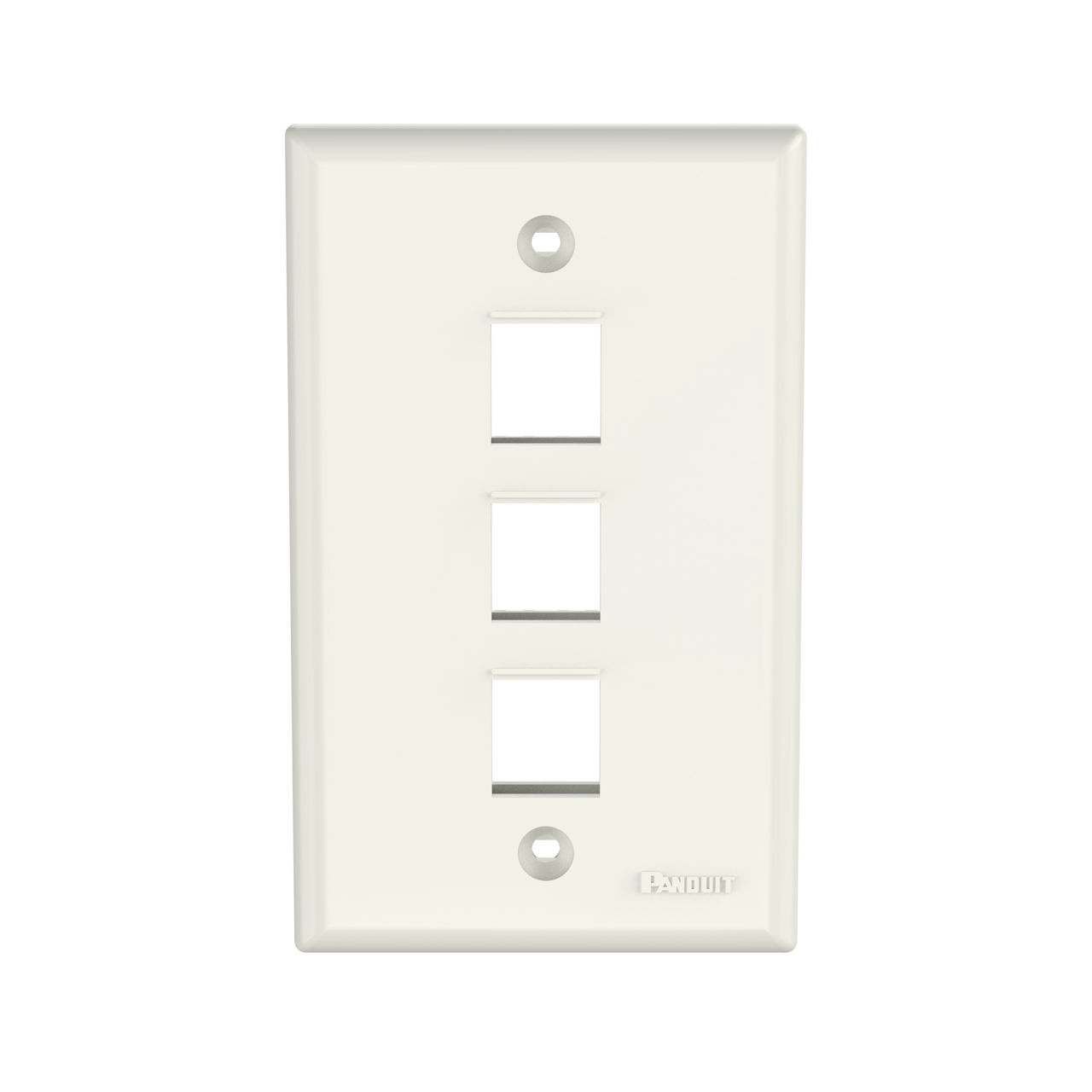

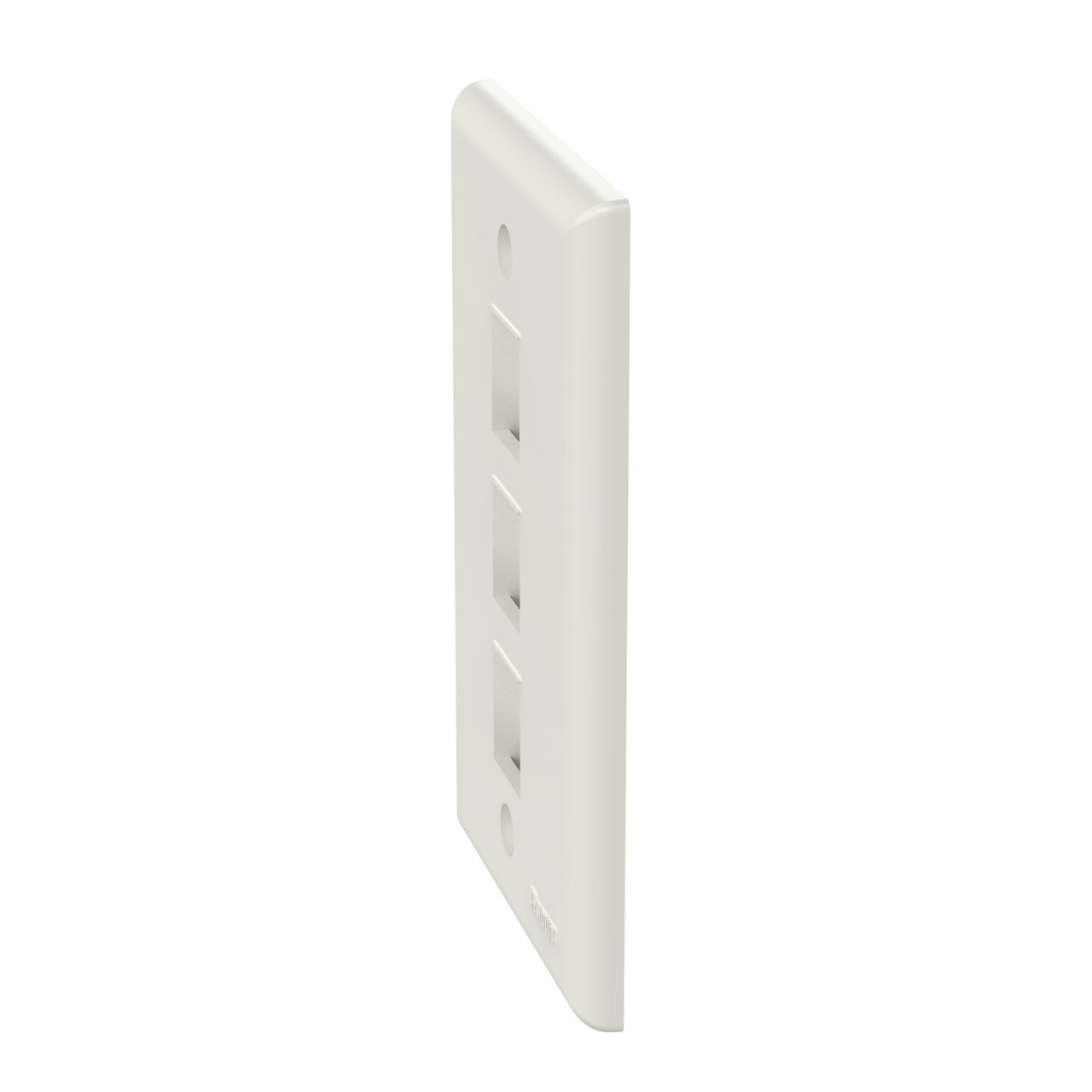

NetKey® Faceplate, 3-Port, International White
NK3FNIW
Organize data and voice connections with our classic faceplate. It is available in single or double gang configurations, with various module port sizes.
Number of Ports: 3
Gang Opening Type: Single Gang
Identification Type: Adhesive Label
Color: Off White
Specifications
| Product Type | Faceplate |
| Number of Ports | 3 |
| Module Type | Keystone |
| Sub Brand | NetKey® |
| Material | ABS |
| Color | Off White |
| Identification Type | Adhesive Label |
| Outlet Orientation | Flat |
| Overall Depth (In.) | 0.45 |
| Overall Depth (mm) | 11.43 |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.85 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498357565 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0077 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.0771 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | NetKey® Faceplates Spec Sheet COSP649 | English | |
| Data Sheets | Faceplates NetKey® Hoja de Datos NKDS70--WW-SPA | Spanish (Español) | |
| Part Drawings | Part Drawing - DWG - NK3FN | English | |
| Part Drawings | Part Drawing - DXF - NK3FN | English | |
| Part Drawings | Part Drawing - PDF - NK3FN | English | |
| Installation Documents | NetKey Screw-on Faceplates & Module Frames NK309F-Rev07 | English | |
| Line Cards | NetKey CablingSystem LATAM 2021 Line Card NKLC45 | English | |
| Line Cards | NetKey Cabling System APAC 2021 Card Line NKLC47 | English | |
| Line Cards | NetKey Cabling System EMEA 2021 Line Card NKLC46 | UK English | |
| Line Cards | Sistema de Cableado NetKey™ Latinoamérica Catálogo NKLC45 | Spanish (Español) | |
| Selection Guides | NetKey™ Cabling System Selection Guide COSG30-SA-ENG | English |
