Mini-Com® Surface Mount Box

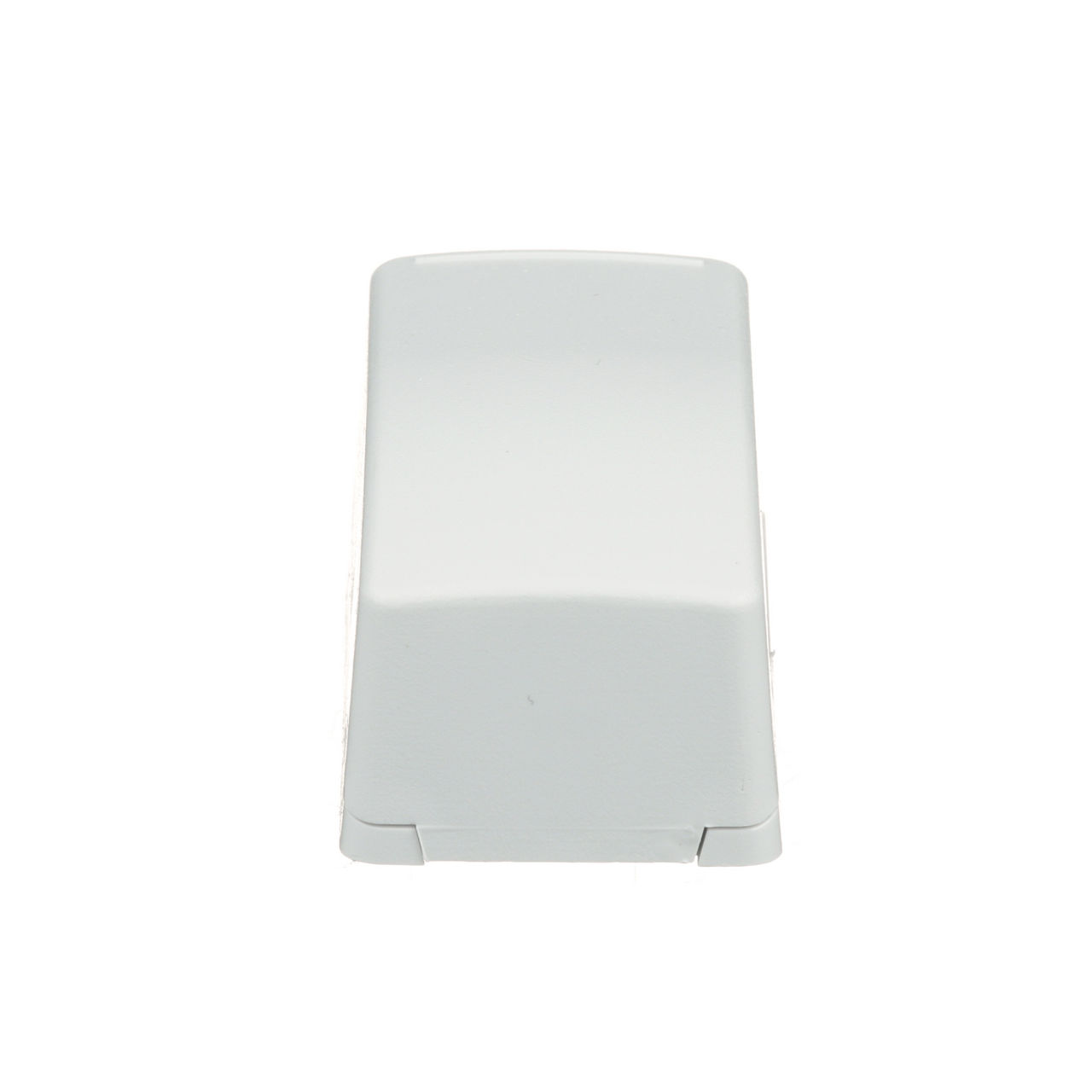

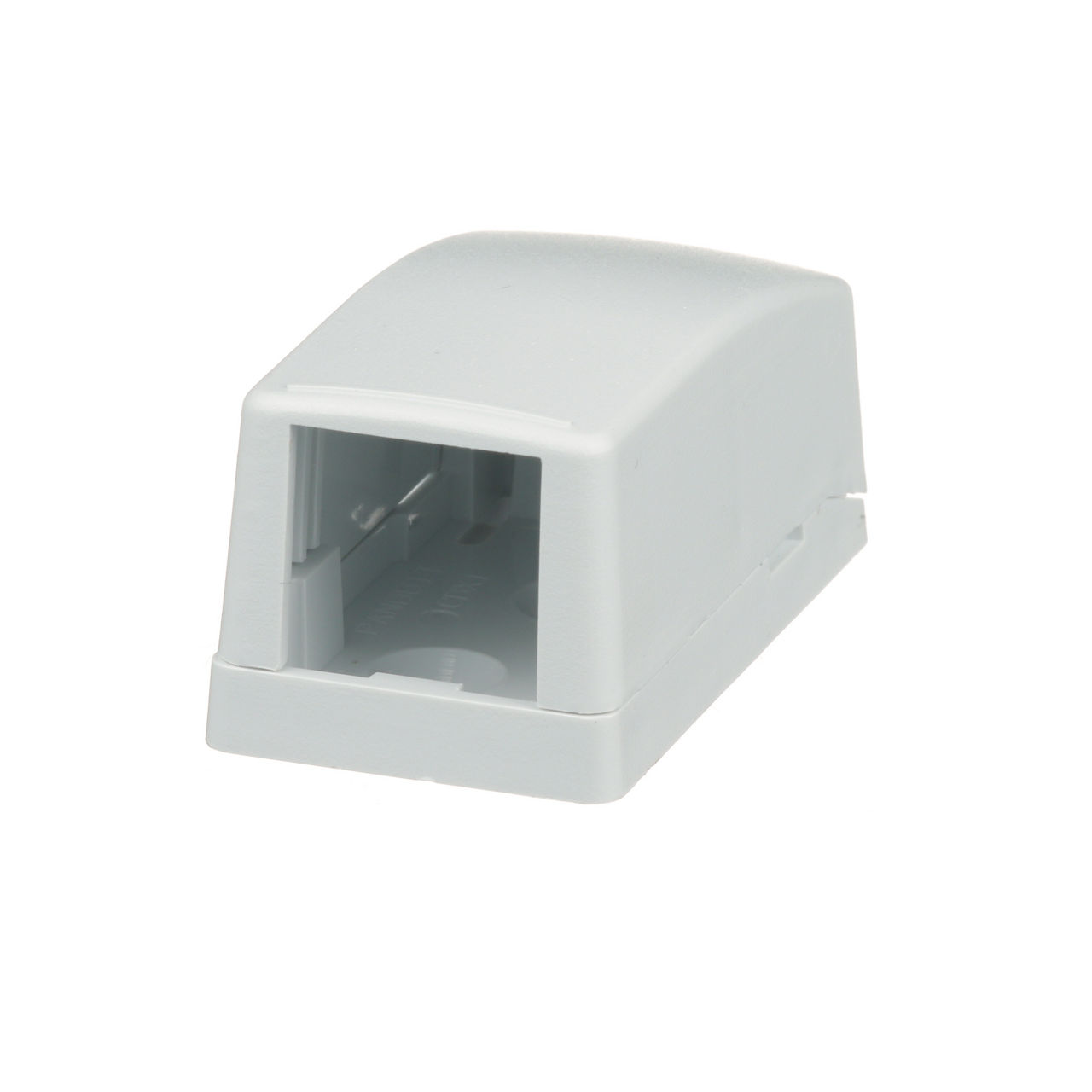

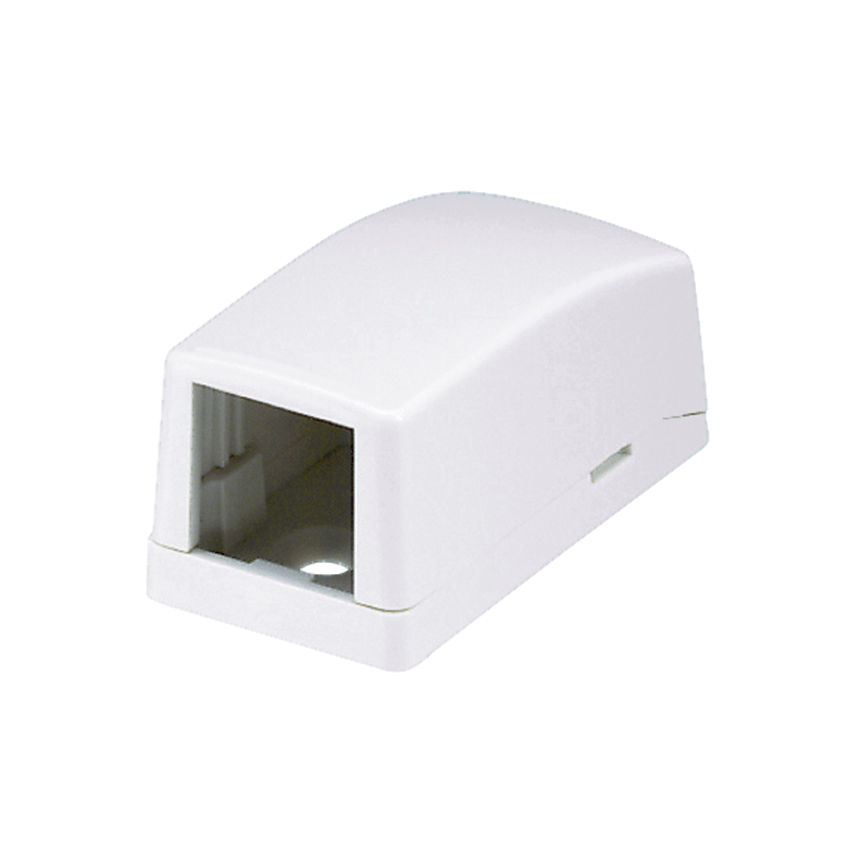

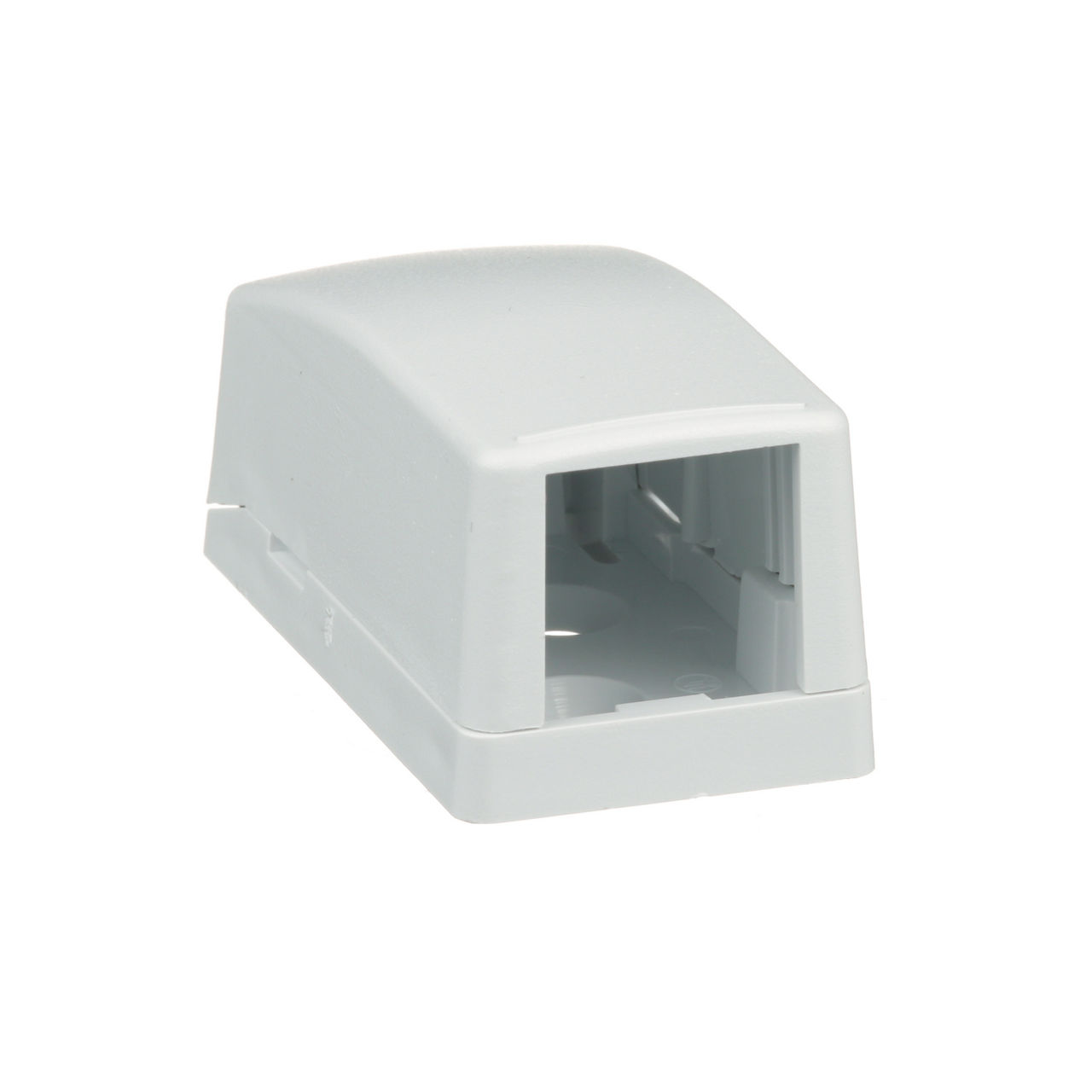

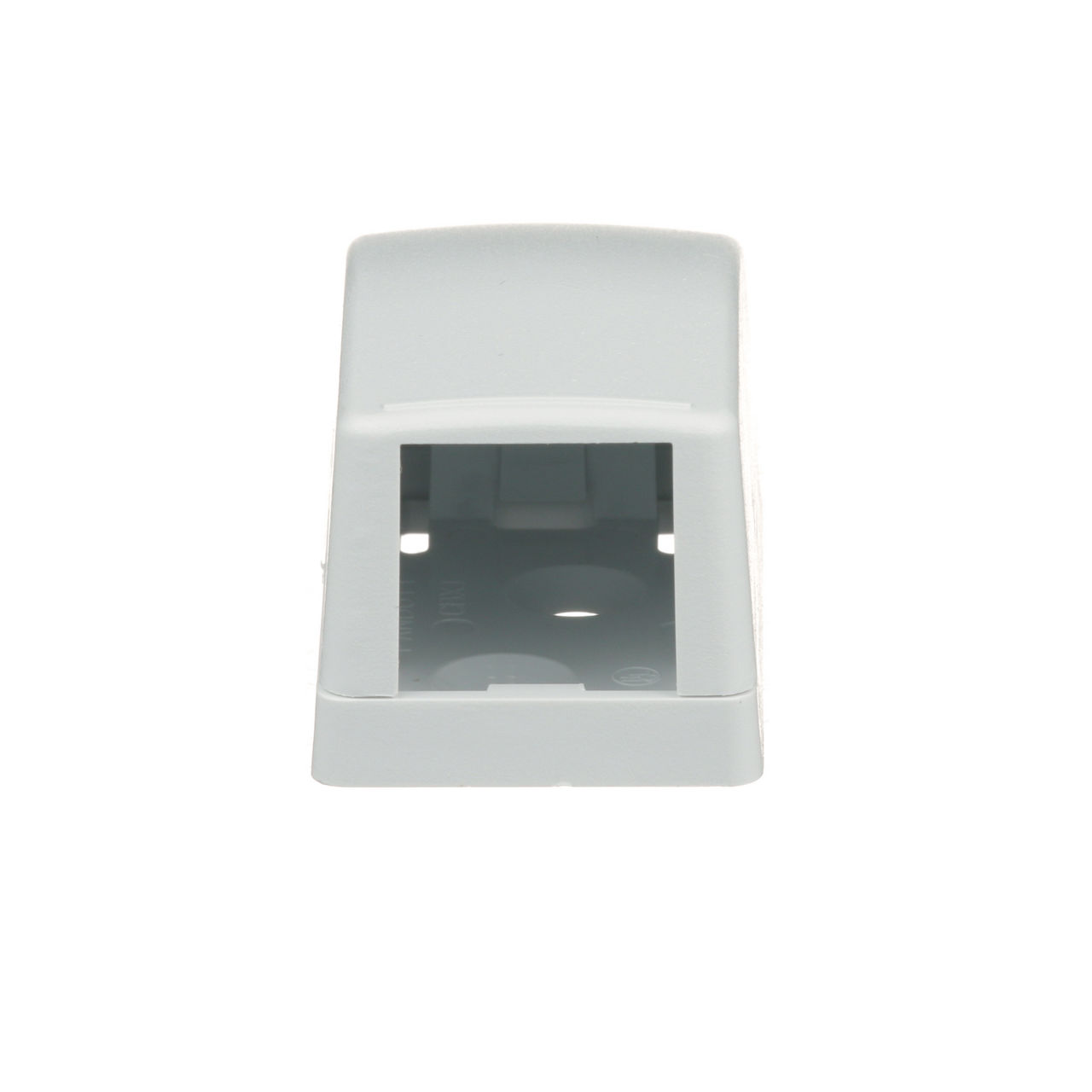

Mini-Com® Surface Mount Box, 1 Port, White
CBX1WH-A
Our surface mount box offers easy access to your data connections with a quick-release cover and labeling, all in a low-profile design for a clean look.
Number of Ports: 1
Color: White
Specifications
| Product Type | Low Profile Surface Mount Box |
| Number of Ports | 1 |
| Module Type | Mini-Com® |
| Color | White |
| Identification Type | Adhesive Label |
| Includes | 1 Adhesive Strips |
| Overall Length (In.) | 1.89 |
| Overall Length (mm) | 48.1 |
| Overall Width (In.) | 1.03 |
| Overall Width (mm) | 26.3 |
| Overall Height (In.) | 0.92 |
| Overall Height (mm) | 23.2 |
| Sub Brand | Pan-Net® |
| Raceway Opening | LD3/LDPH3 |
| Material | ABS |
| Standards Met | UL 1863; UL 2043; RoHS Compliant |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498375377 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0050 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.0501 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Mini-Com® Surface Mount Boxes Specification Sheet OTSP27--WW-ENG | English | |
| Videos | Mini-Com Surface Mount Boxes Spotlight Video | English | |
| Part Drawings | Part Drawing - DWG - CBX1 | English | |
| Part Drawings | Part Drawing - DXF - CBX1 | English | |
| Part Drawings | Mini-Com 1 Position Surface Mount Box COCBX1XX-A--ENG | English | |
| Installation Documents | Mini-Com Surface Mount Boxes - PN56J | English | |
| Application Guides | Plenum Network Infrastructure for In-Ceiling Applications: COAG01 | English | |
| Brochures | Soluciones de Infraestructura Educativa por Panduit y Atlona Folleto CPCB254 | Spanish (Español) | |
| Line Cards | Outlet Offerings for EMEA Line Card OTLC06--SA-UKE | UK English |
