Mini-Com® Surface Mount Box

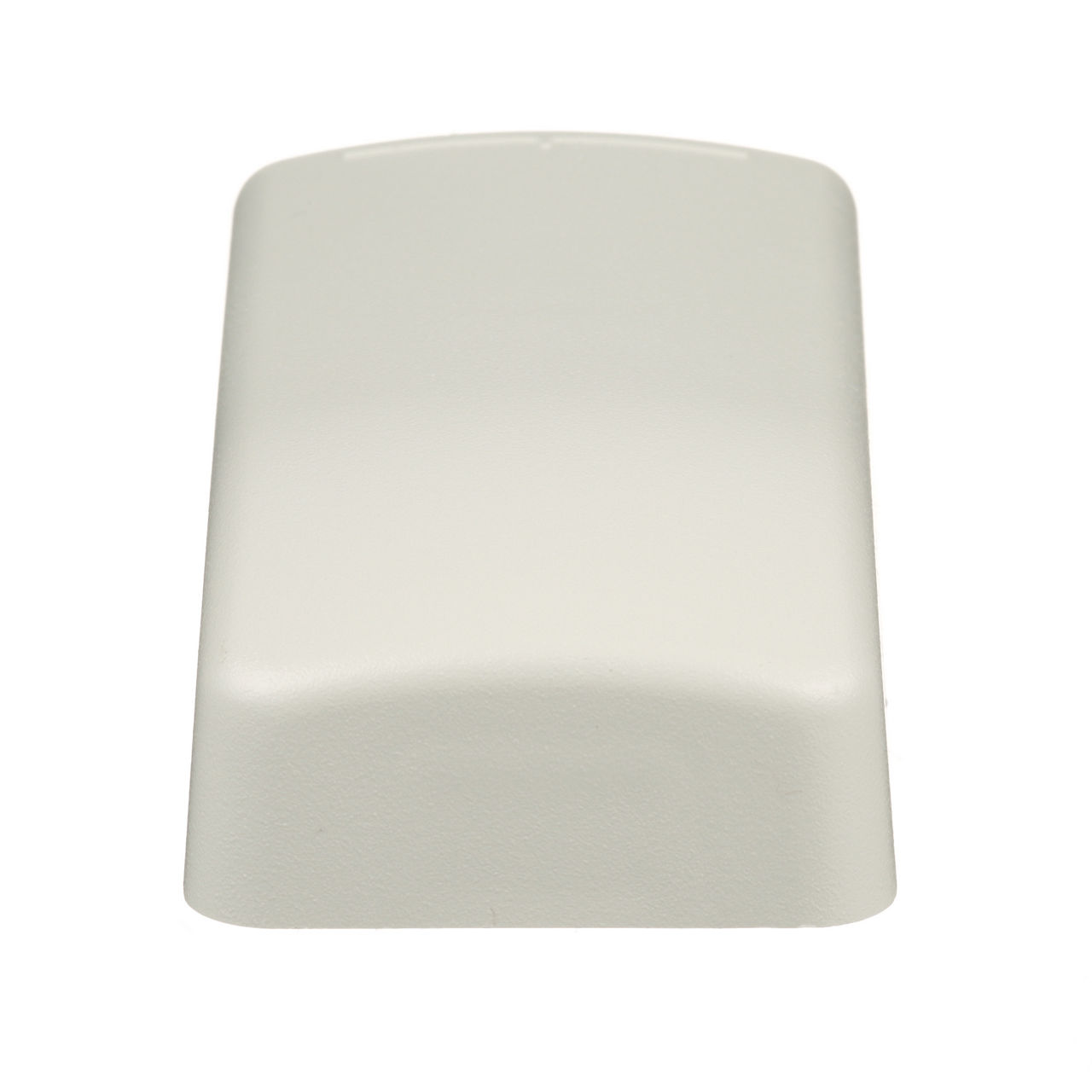

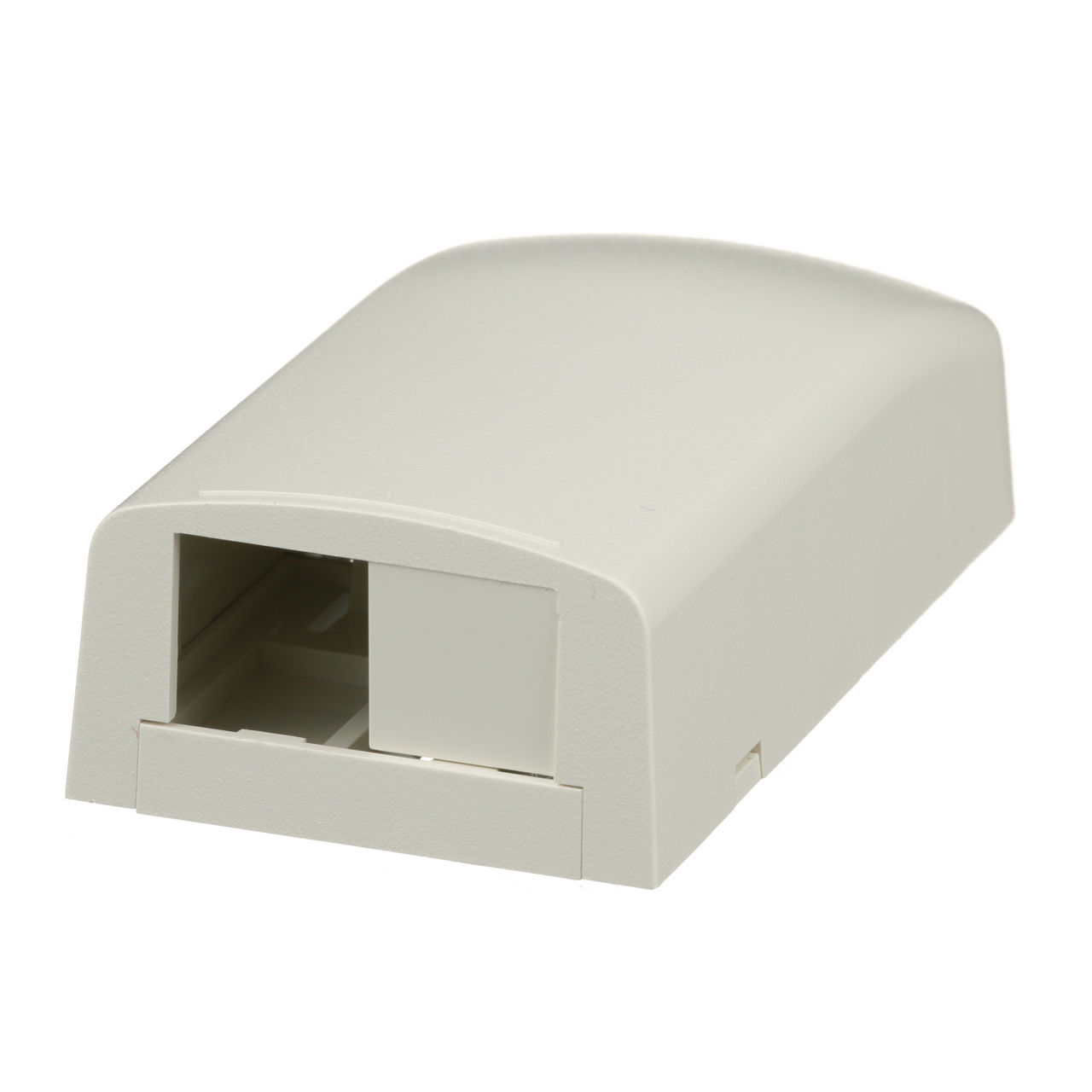

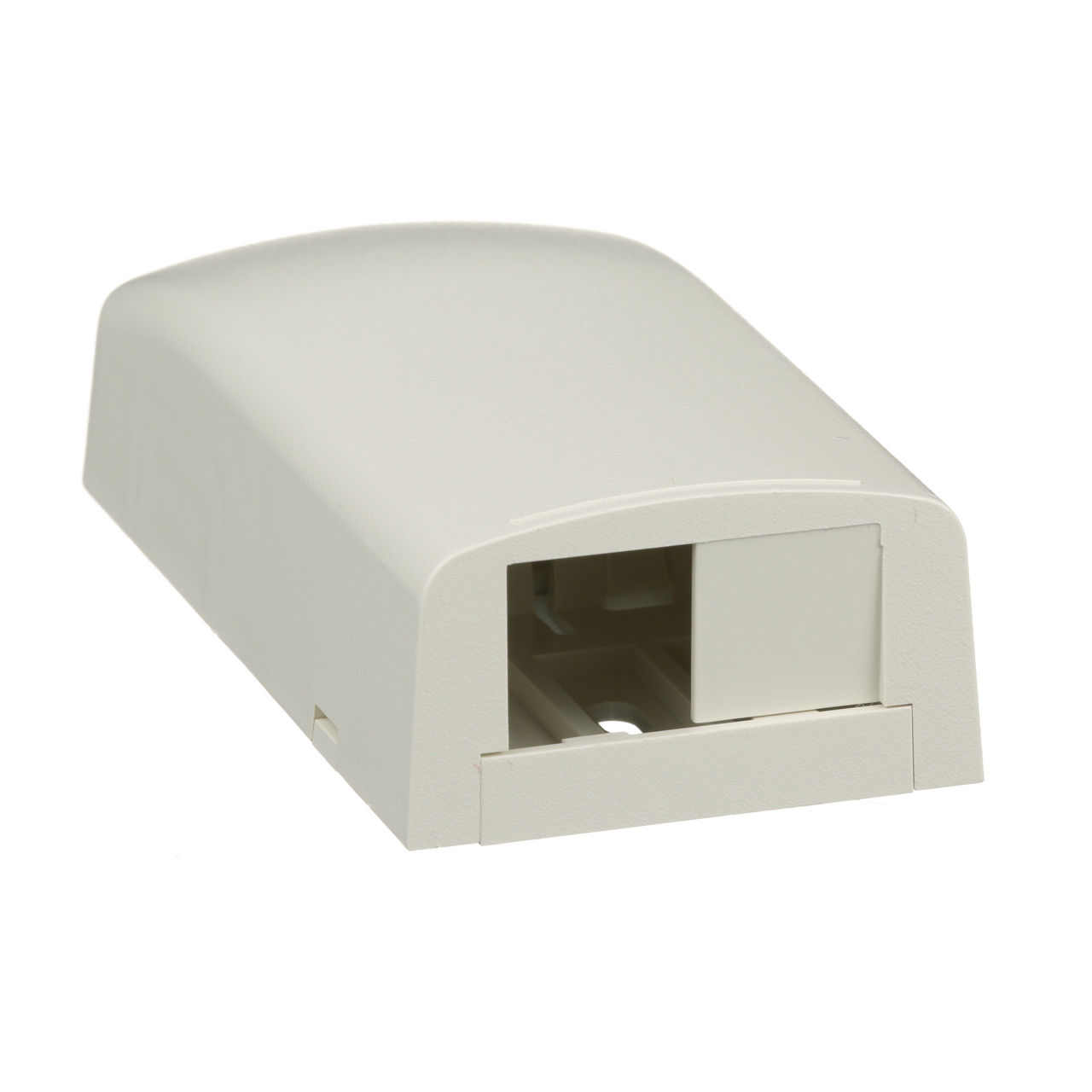

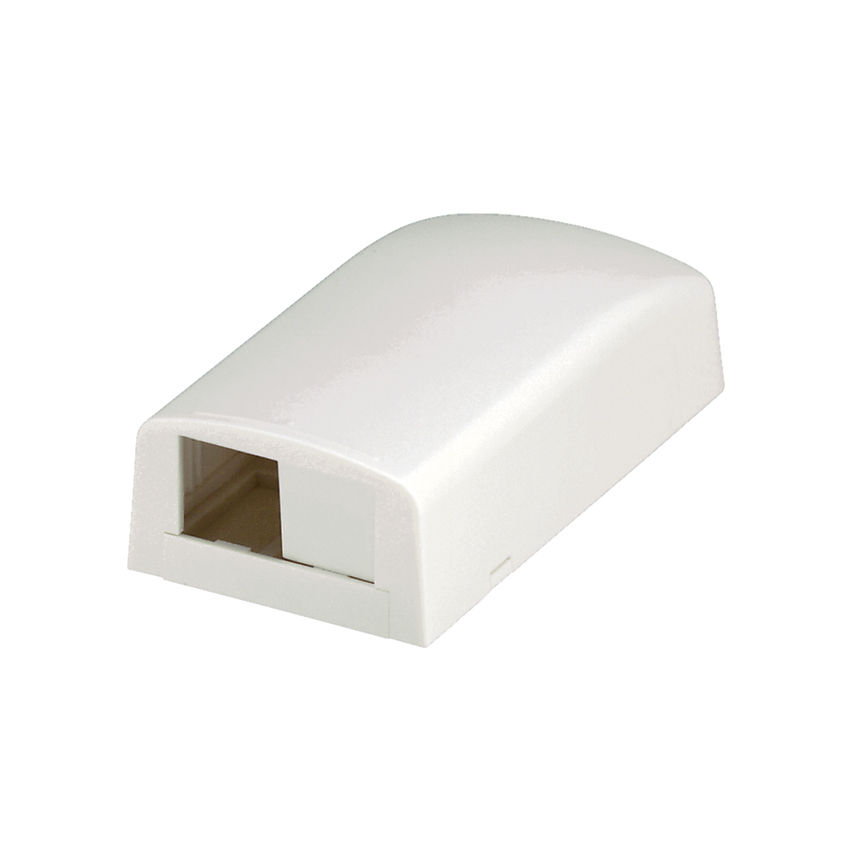

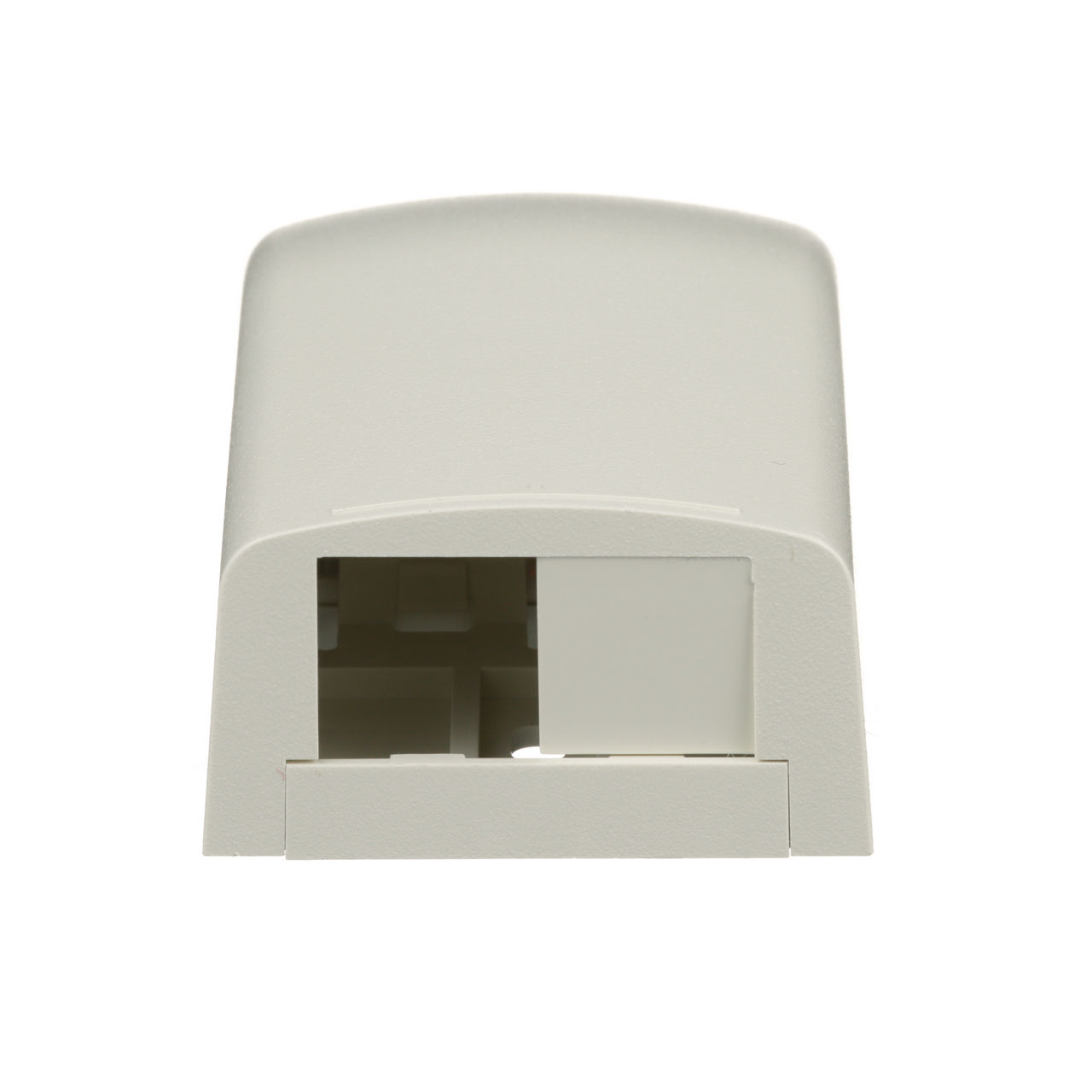

Mini-Com® Surface Mount Box, 2 Port, Off White
CBX2IW-AY
Our surface mount box offers easy access to your data connections with a quick-release cover and labeling, all in a low-profile design for a clean look.
Number of Ports: 2
Color: Off White
Specifications
| Note | Compatible with LD5/LDPH5 or LD3/LDPH3 Raceway |
| Product Type | Elongated Surface Mount Box |
| Number of Ports | 2 |
| Module Type | Mini-Com® |
| Color | Off White |
| Identification Type | Adhesive Label |
| Includes | (1) Box Base, (2) Box Cover, (3) PLT1.5I-C PAN-TY, (4) 2-Mounting Screw, (5) Strip of 3" X .75" Foam Tape for Mounting, (6) ID Label Kit |
| Overall Length (In.) | 3.65 |
| Overall Length (mm) | 92.7 |
| Overall Width (In.) | 1.95 |
| Overall Width (mm) | 49.5 |
| Overall Height (In.) | 1.06 |
| Overall Height (mm) | 27 |
| Sub Brand | Pan-Net® |
| Raceway Opening | LD3/LDPH3 |
| Material | ABS |
| Standards Met | UL 1863; UL 2043; RoHS Compliant |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498303202 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0175 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.1750 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Mini-Com® Surface Mount Boxes Specification Sheet OTSP27--WW-ENG | English | |
| Videos | Mini-Com Surface Mount Boxes Spotlight Video | English | |
| Part Drawings | Part Drawing - DWG - CBX2 | English | |
| Part Drawings | Part Drawing - DXF - CBX2 | English | |
| Part Drawings | Mini-Com 2 Position Surface Mount Box COCBX2XX-AY--ENG | English | |
| Installation Documents | Mini-Com Surface Mount Boxes - PN56J | English | |
| Line Cards | Outlet Offerings for EMEA Line Card OTLC06--SA-UKE | UK English |
