Sta-Strap® Cable Tie
Sta-Strap® SSPM2.5HP-TL300 Sta-Strap Center Pilot, Blk, High Heat UV PA6.6
SSPM2.5HP-TL300
Effortlessly secure and release cables with our Cable Tie. Featuring a miniature cross section, it ensures precise, reliable bundling for any installation.
Select product to view details, compare, or add to list:
Specifications
| Product Type | Cable Tie |
| Sub Brand | Sta-Strap® |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Resistance Properties | Heat-Resistant, UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 10.1 |
| Overall Length (mm) | 257 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.062 |
| Body Thickness (mm) | 1.6 |
| Maximum Bundle Diameter (In.) | 2.76 |
| Maximum Bundle Diameter (mm) | 70 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | 70 |
| Minimum Installation Temperature (°F) | -40 |
| Standards Met | CSA Certified, UL Compliant 62275 Type 1, UL Recognized (File #E56854), RoHS Compliant |

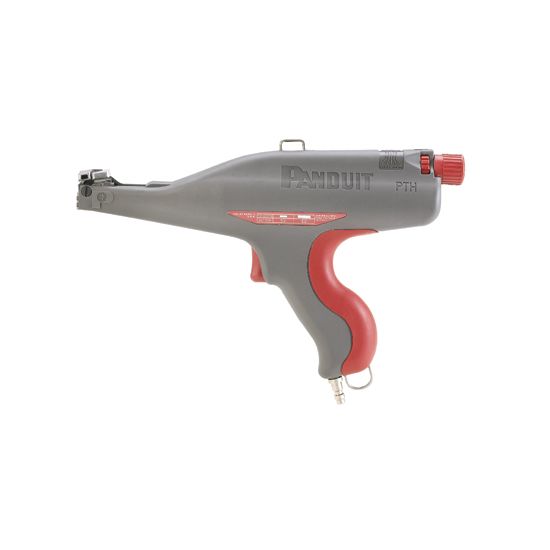

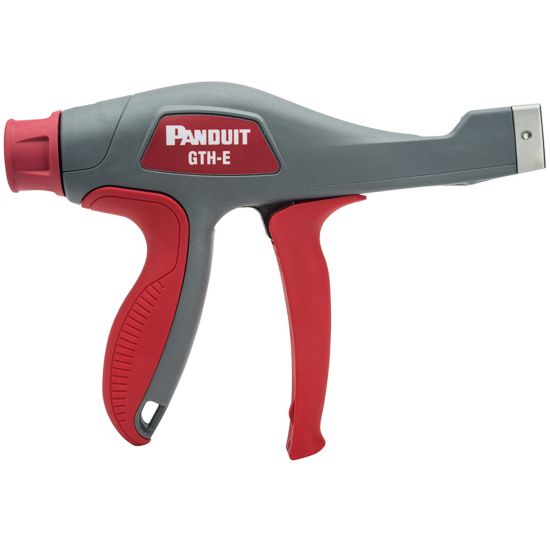

| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Application | High Temperature |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498322374 |
| Std. Pkg. Qty. | 250 |
| Std. Pkg. Volume (cf) | 0.2559 |
| Std. Ctn. Qty. | 2500 |
| Std. Ctn. Volume (cf) | 2.5587 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Catalog Cut Sheets | Catalog Cut Sheet - SSPM2.5H-L300 Product Page | English | |
| Videos | Premium Cable Ties | English | |
| Part Drawings | Sta-Strap® Chassis/Panel Mount Tie Drawing | English | |
| 3D CAD Models | Sta-Strap® Chassis/Mount Tie 3D STP File | English | |
| Selection Guides | Comprehensive Cable Tie Solutions Selection Guide - FRSG3 | English |
