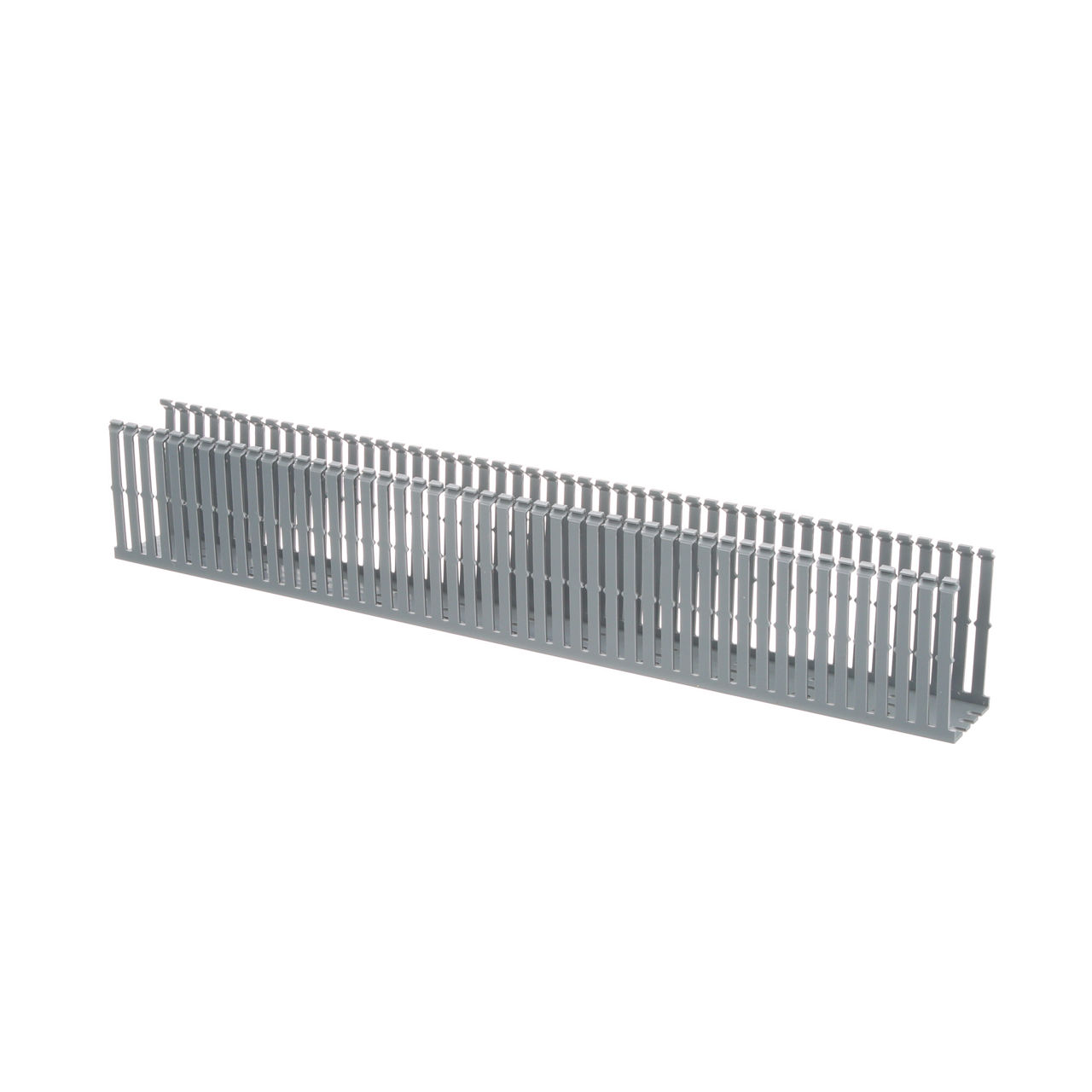

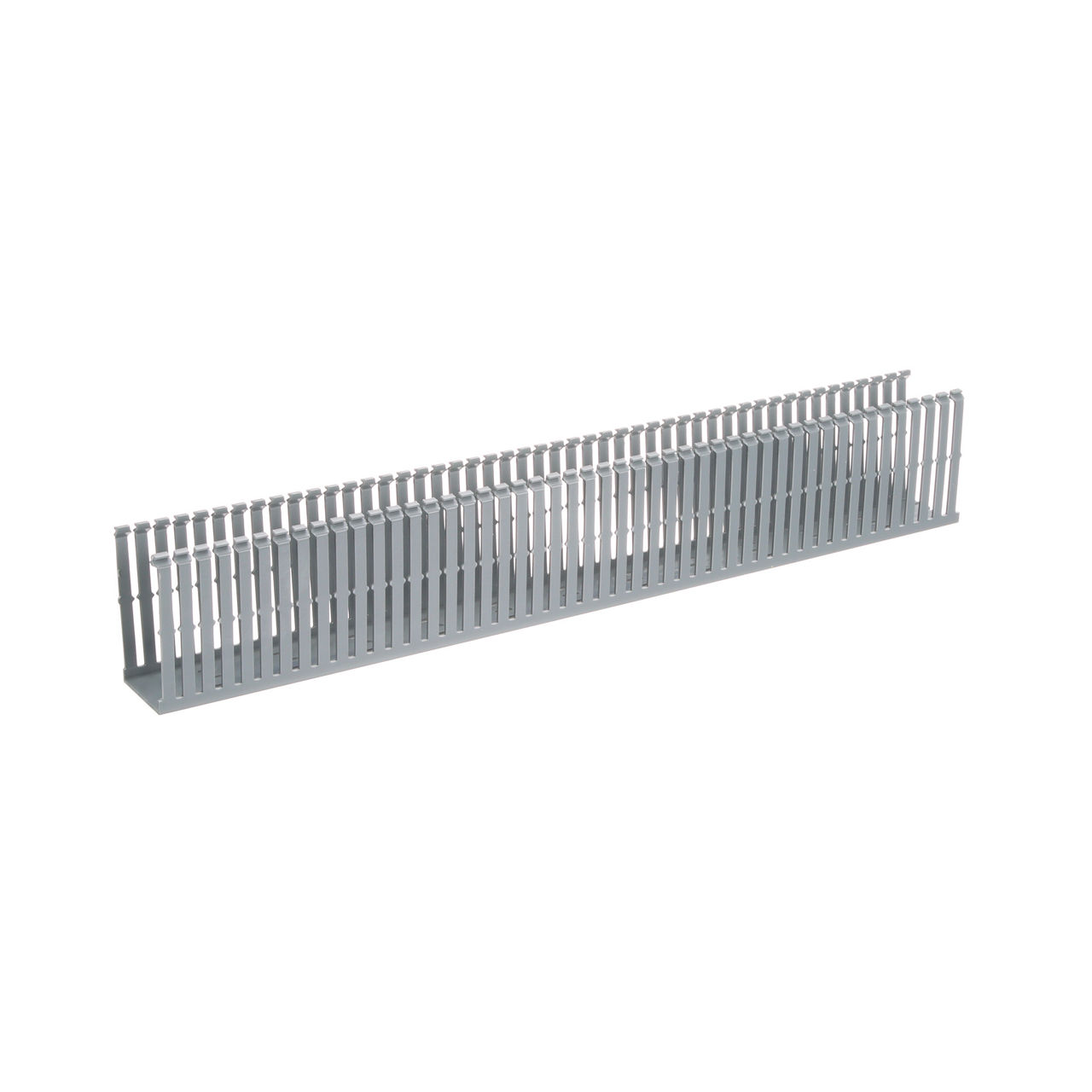

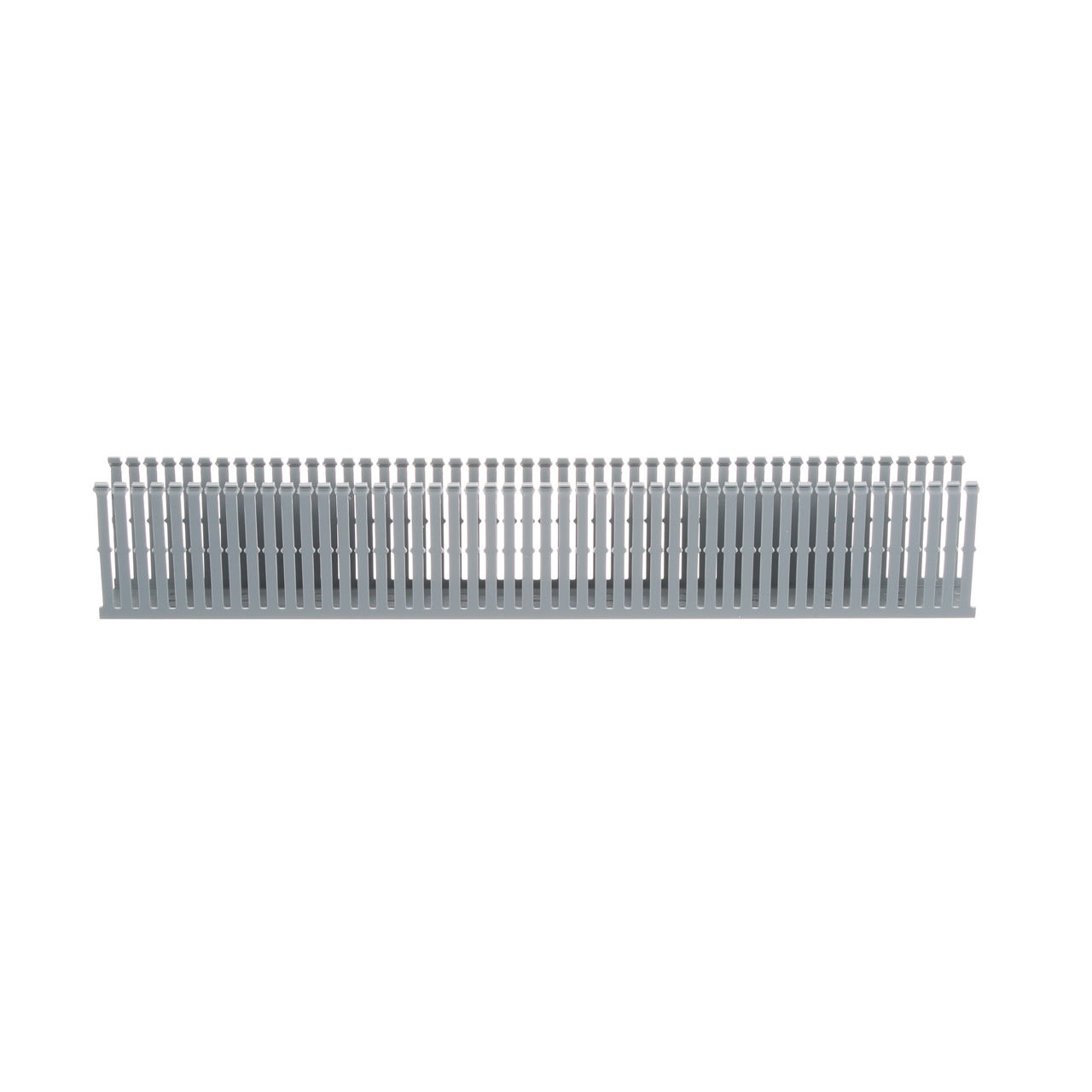

Panduct® Type F Narrow Slot Wiring Duct
Panduct® F2X4LG6 Base Wiring Duct
F2X4LG6
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.
Color: Light Gray
Duct Dimensions (In.): 2.25W x 4.1H
Specifications
| Duct Dimensions (In.) | 2.25W x 4.1H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104.1 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct® |
| Part Features | Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498337561 |
| Std. Pkg. Qty. | 6 |
| Std. Pkg. Volume (cf) | 0.2755 |
| Std. Ctn. Qty. | 60 |
| Std. Ctn. Volume (cf) | 2.7551 |
