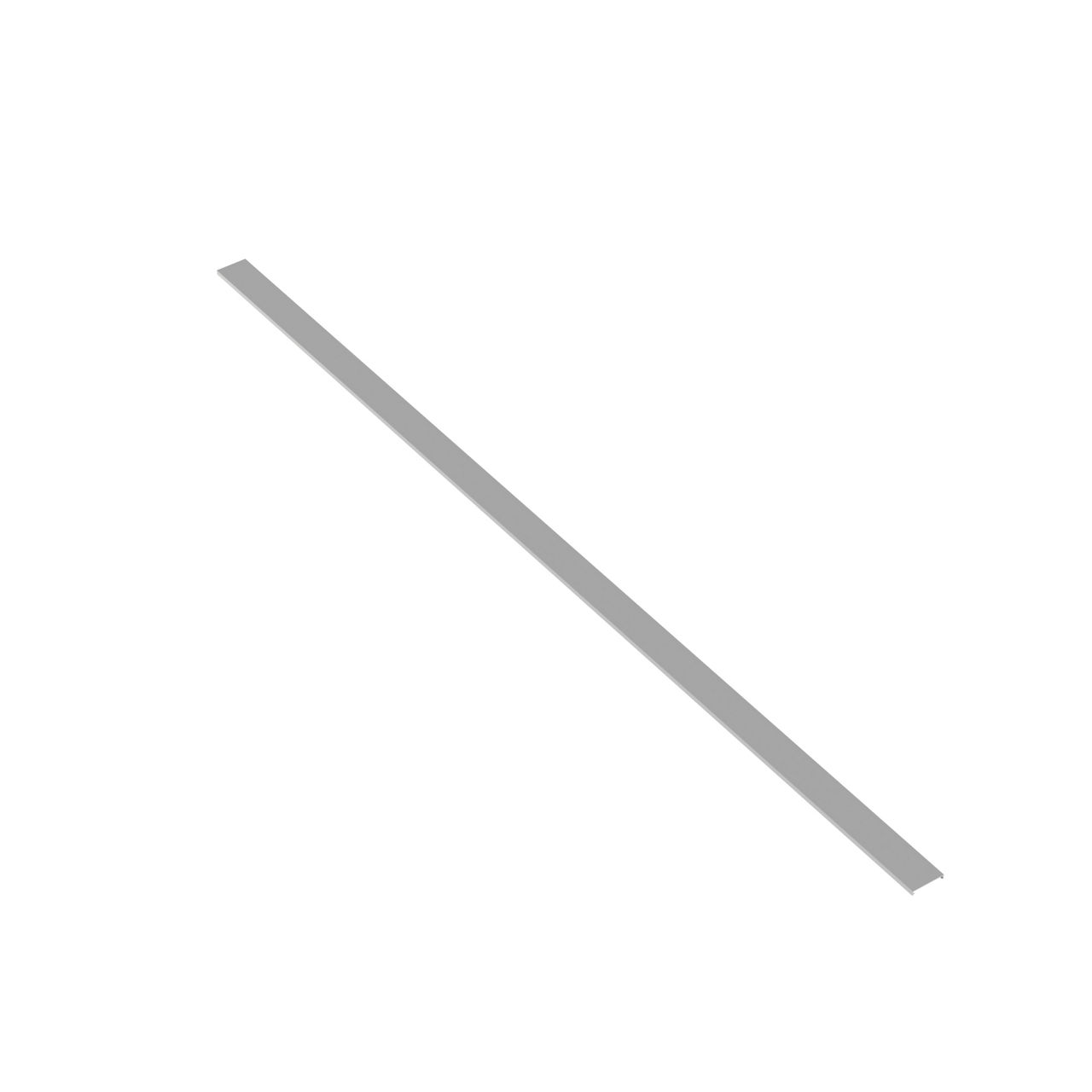

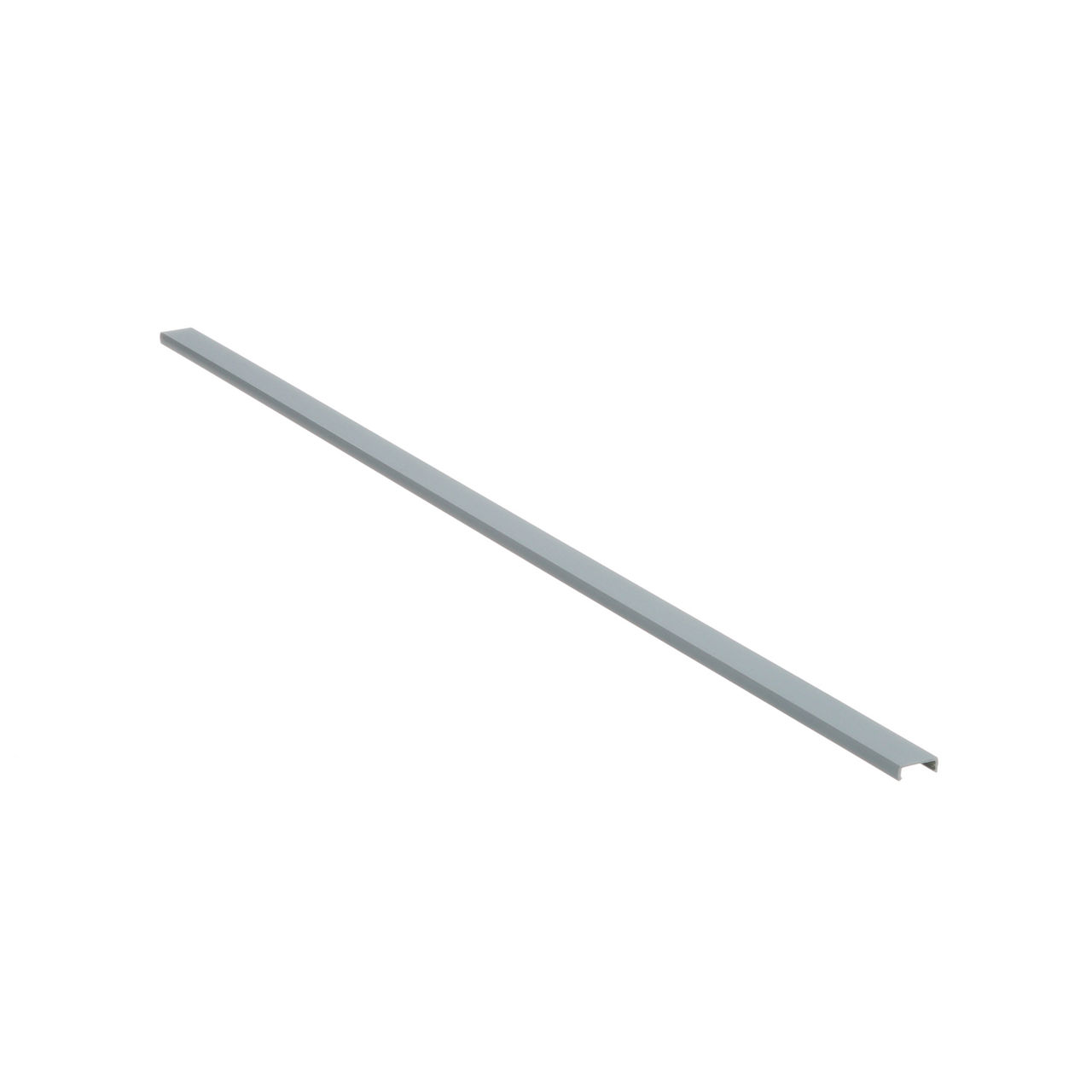

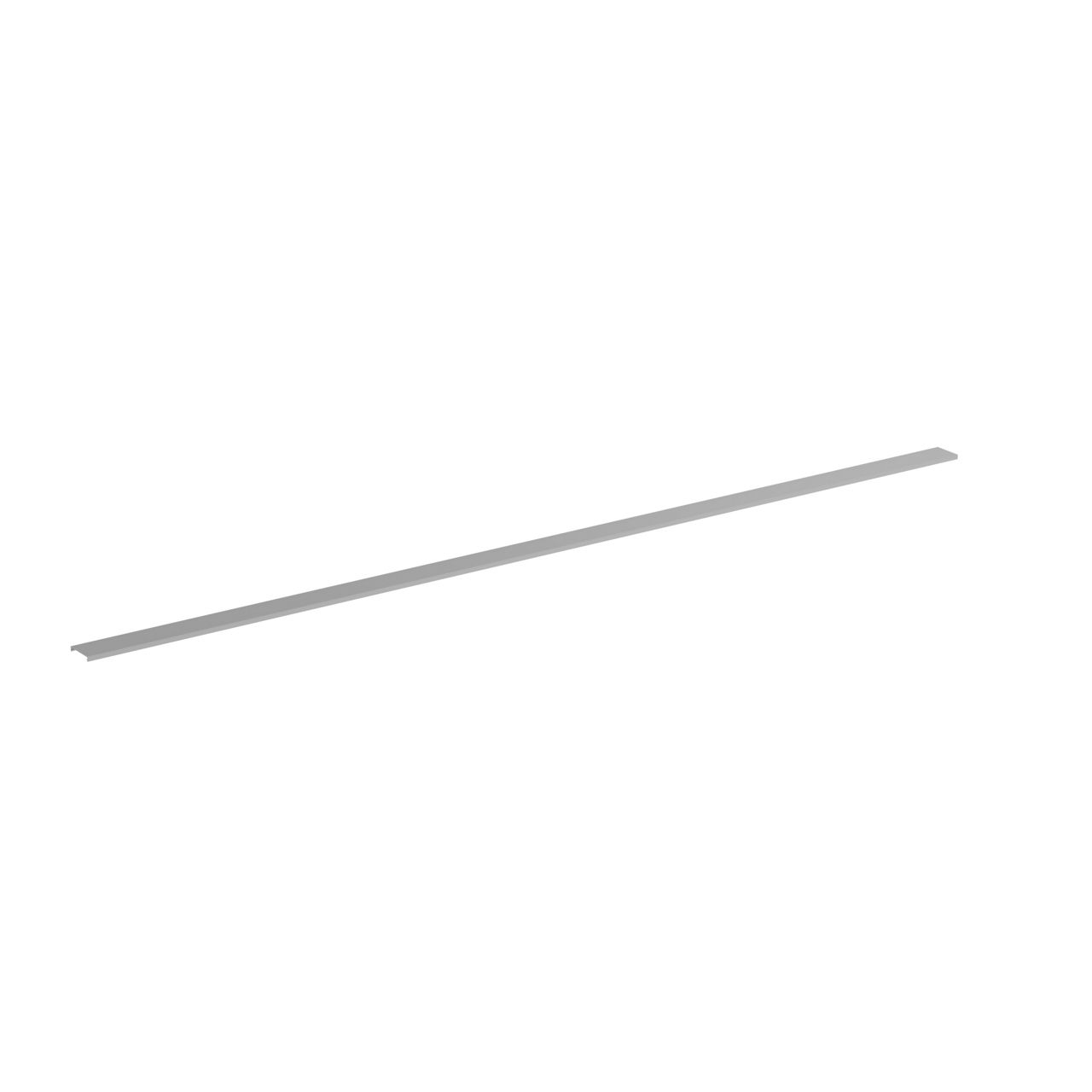

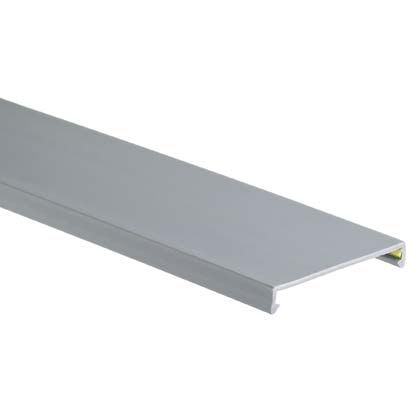

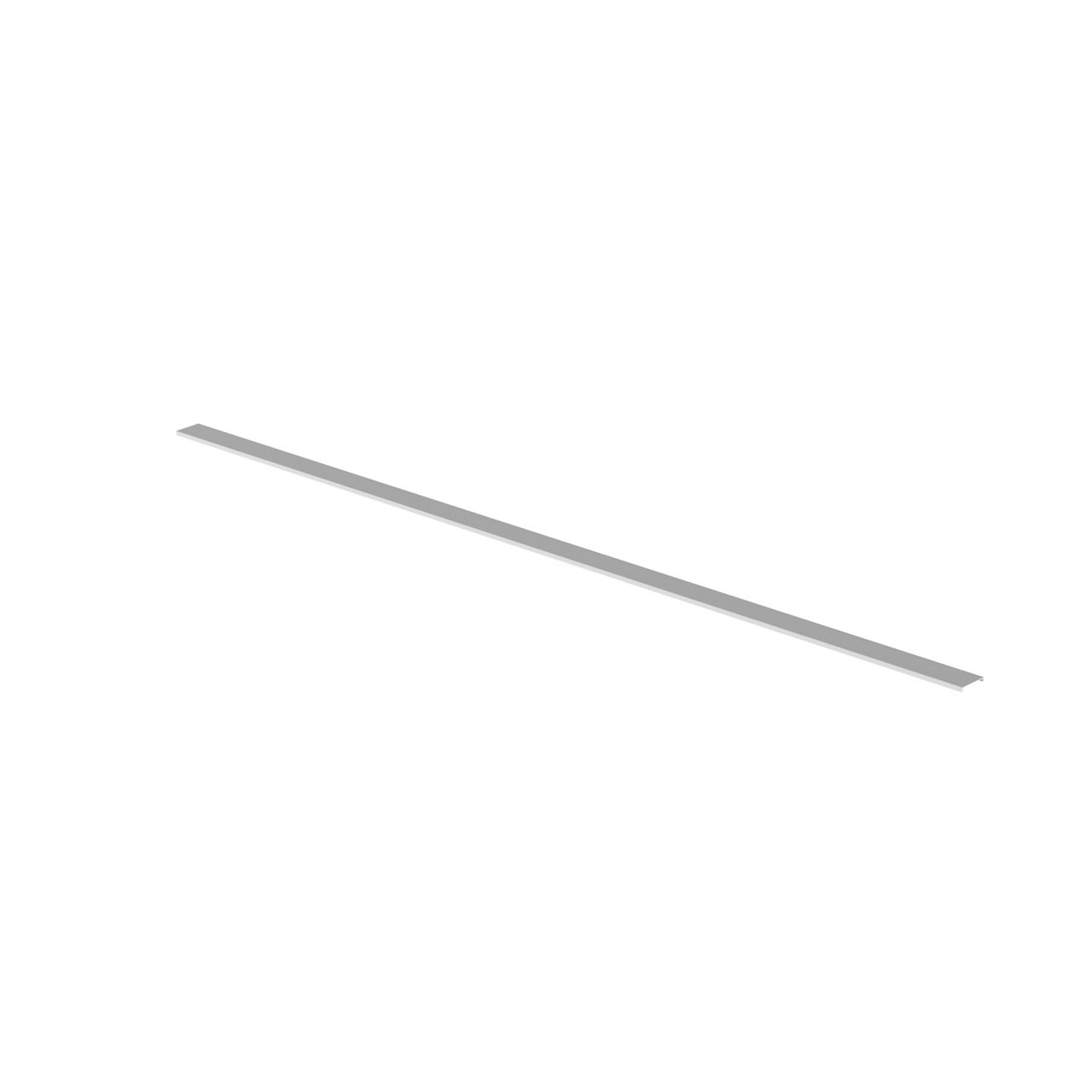

Panduit | C2LG6

Specifications

Note	Base and Cover Sold Separately.
Product Type	Flushed Duct Cover
Sub Brand	Panduct®
Application	Cover for Wiring Duct
Color	Light Gray
For Use With	Type G, Type F, Type D and Type FS Duct Base; PanelMax Corner Wiring Duct
Material	PVC
Material Properties	Lead-Free
Standards Met	UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant
Compatible Duct Width (In.)	2
Compatible Duct Width (mm)	50.8
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	2.25
Overall Width (mm)	57.2
Overall Height (In.)	0.35
Overall Height (mm)	8.9
Mount Method	Snap-On
Wiring Duct Style	Flush Cover
Part Features	Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material

Configuration

NOTE: Not all resources are available in your language.

If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.

Language

Videos	OEM Solutions Video	English	View MP4 (17.64MB) Download MP4 Share MP4
Videos	Wiring Duct (Part 2) Video	English	View MP4 (10.07MB) Download MP4 Share MP4
Videos	Wiring Duct Spotlight Video	English	View MP4 (343.46MB) Download MP4 Share MP4
Part Drawings	Wiring Duct Cover - C-WDC2-36897rev01	English	View DWG (65.60KB) Download DWG Share DWG
Part Drawings	Wiring Duct Cover - C-WDC2-36897rev01	English	View DXF (224.24KB) Download DXF Share DXF
Part Drawings	Wiring Duct Cover - C-WDC2-36897rev01	English	View PDF (94.49KB) Download PDF Share PDF
3D CAD Models	C2LG6 STP Model Drawing	English	View STP (29.92KB) Download STP Share STP
Flyers	Wiring Duct One-Page Overview WD-OPO-DIG	English	View PDF (4.08MB) Download PDF Share PDF
Selection Guides	Wiring Duct Product Selection Guide - FRSG4	English	View PDF (1.26MB) Download PDF Share PDF
Technical References	Chemical Resistance Information	English	View PDF (670.90KB) Download PDF Share PDF
