Tool-less Blanking Panel

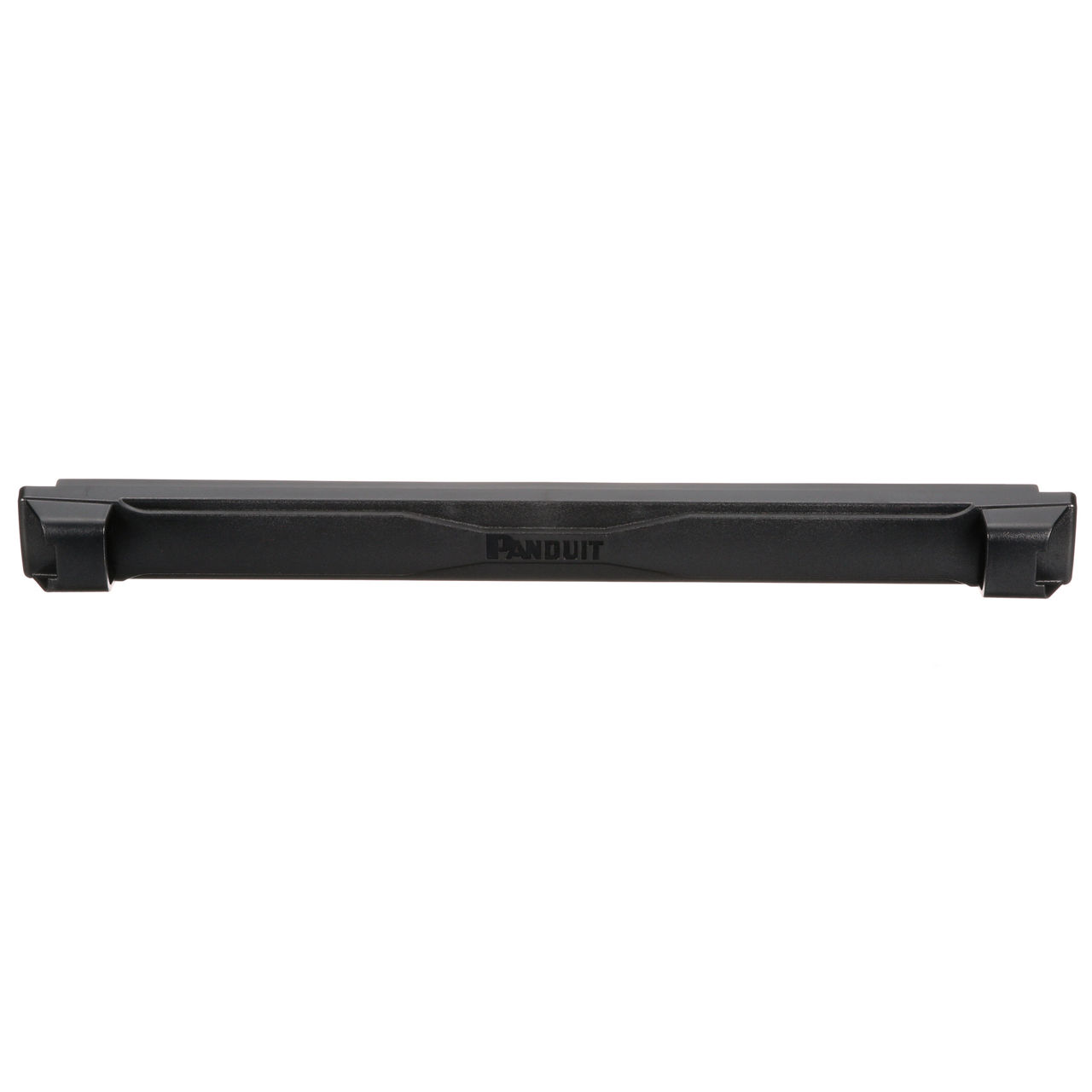

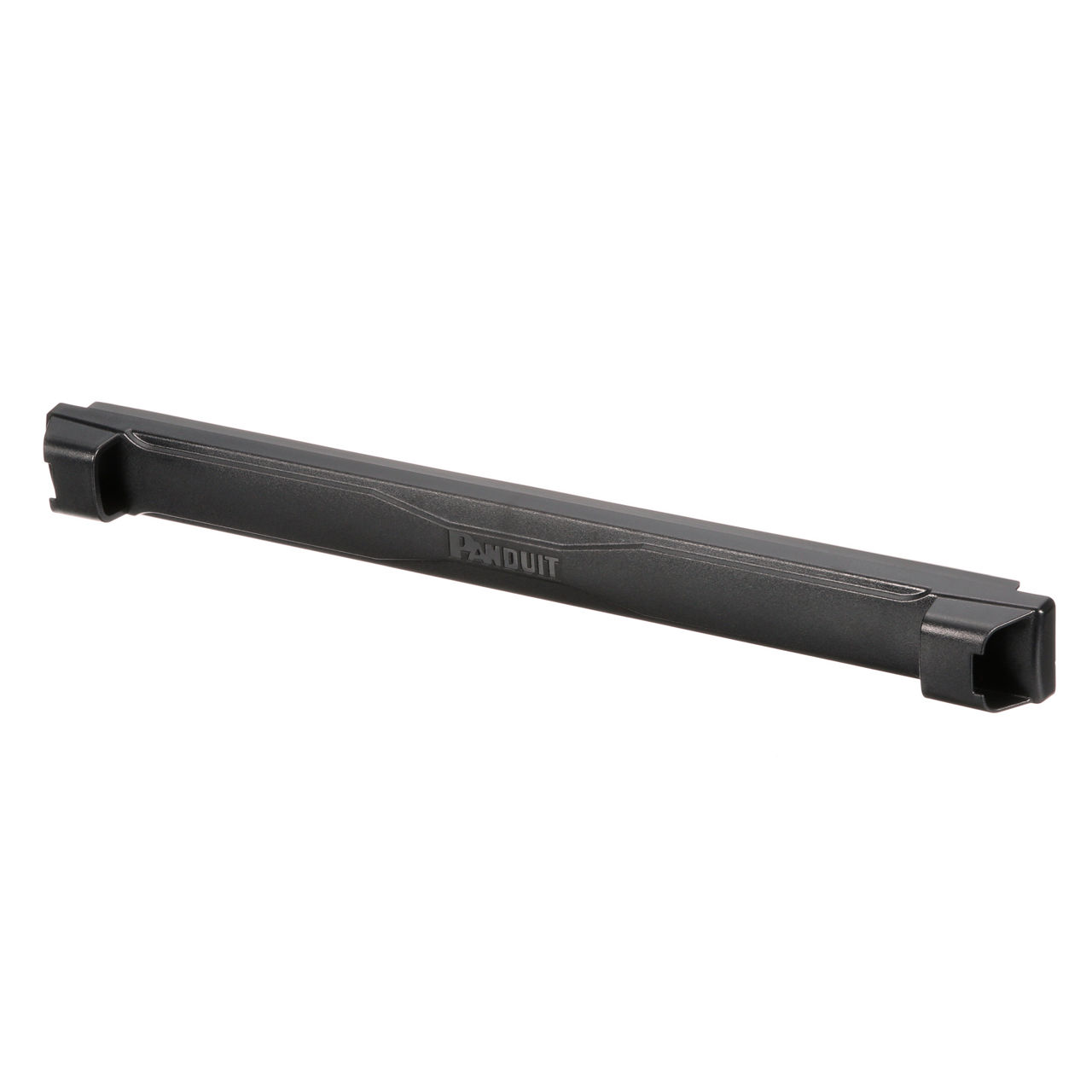

Tool-less Blanking Panel, 1 RU, Black
TLBP1S-V
Maintain a clean aesthetic and optimize airflow with the toolless blanking panel. By filling empty spaces, you can prevent hot air bypass and improve cooling efficiency.
Number of Rack Units: 1
Color: Black
Select product to view details, compare, or add to list:
Specifications
| Product Type | Blanking Panel |
| Compatible Rack System | 19 |
| Material | ABS |
| Mounting Bolt Method | Cage Nut |
| Overall Depth (In.) | 2 |
| Overall Depth (mm) | 50.8 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Overall Height (In.) | 1.76 |
| Overall Height (mm) | 44.7 |
| Color | Black |
| Standards Met | CEA 310-E Compliant; RoHS Compliant |
| Accessory Type | Tool-Less Blanking Panels |
| Number of Rack Units | 1 |
| Part Features | Non-metallic material with snap-in feature, sealing vanes tween rack units to prevent bypass air to improve energy efficiency. |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498332297 |
| Std. Pkg. Qty. | 5 |
| Std. Pkg. Volume (cf) | 0.1707 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Tool-Less Blanking Panels: WASP39--WW-ENG | English | |
| Specification Sheets | Paneles Ciegos que No Requieren Herramientas Hoja de Especificaciones WASP39 | Spanish (Español) | |
| Videos | Thermal Management - Video 16:9 | English | |
| Part Drawings | Part Drawings - PDF - GB3634DA_19A | English | |
| Part Drawings | TLBP1S-V DWG | English | |
| Part Drawings | TLBP1S-V DXF | English | |
| Application Guides | Net-Contain™ and Net-Direct™ Thermal Management Solution: RKAG01--WW-ENG | English | |
| Brochures | Net-Access™ Data Center Cabinet and Net-Containment Systems | English | |
| Brochures Non Product | Space-Saving Cable Management Rack System Brochure RKCB46-SA-ENG | English | |
| Selection Guides | Blanking Solutions Selection Guide RKSG12 | English |
