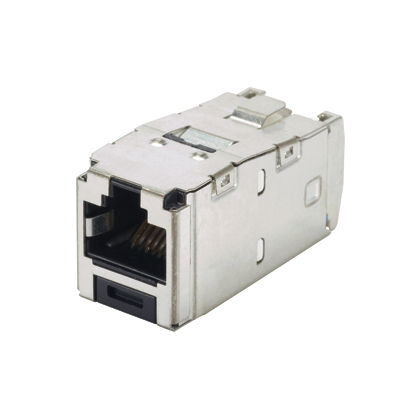

Mini-Com® TX6A™ 10Gig™ STP RJ45 28/30 AWG TG Jack Module
Mini-Com® STP RJ45 Cat 6A 28/30 AWG TG Jack Module, Black
CJST6X88TGY
Ensure top-notch performance and shielding against interference in your network with our jack module, ideal for high-speed data transfer applications.
Color: Black
Specifications
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - 28AWG |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Black |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.73 |
| Overall Height (mm) | 18.5 |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 61305602226 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0032 |
| Std. Ctn. Qty. | 50 |
| Std. Ctn. Volume (cf) | 0.1604 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Mini-Com® TX6A™ 28/30 AWG Shielded Jack Modules Spec Sheet COSP394 | English | |
| Part Drawings | TX5e/6/6A Shielded 28/30 AWG Jack Module Part Drawing PDF | English | |
| Part Drawings | Part Drawing DXF 00075SAS-02_00A | English | |
| Part Drawings | Part Drawing - DWG - 00075SAS-02_00A | English | |
| Installation Documents | Mini-Com Shielded 28/30 AWG Jack Modules - TG Style Termination: PN613 | English | |
| Installation Documents | Mini-Com Shielded 28/30 AWG Jack Modules - TG Style Termination (Japanese): PN613-JP | Japanese (日本語) | |
| Flyers | TG-Style Tools Guide Flyer COFL55-SA-ENG | English | |
| Flyers | Guía de Herramientas Estilo TG COFL55 | Spanish (Español) | |
| Selection Guides | Guía de Selección 28 AWG - Categoría 5e, 6 y 6A Guia de Seleccion COSG10--WW-SPA | Spanish (Español) | |
| Selection Guides | Mini-Com® Jack Module Selection Guide – “TG Style” Termination COSG25 | English |
