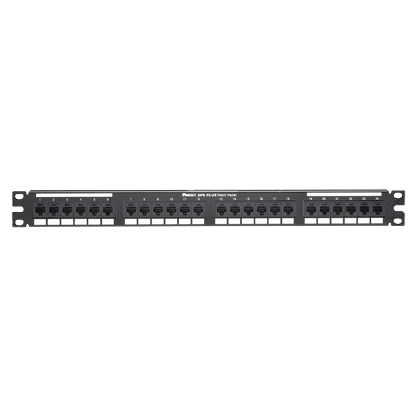

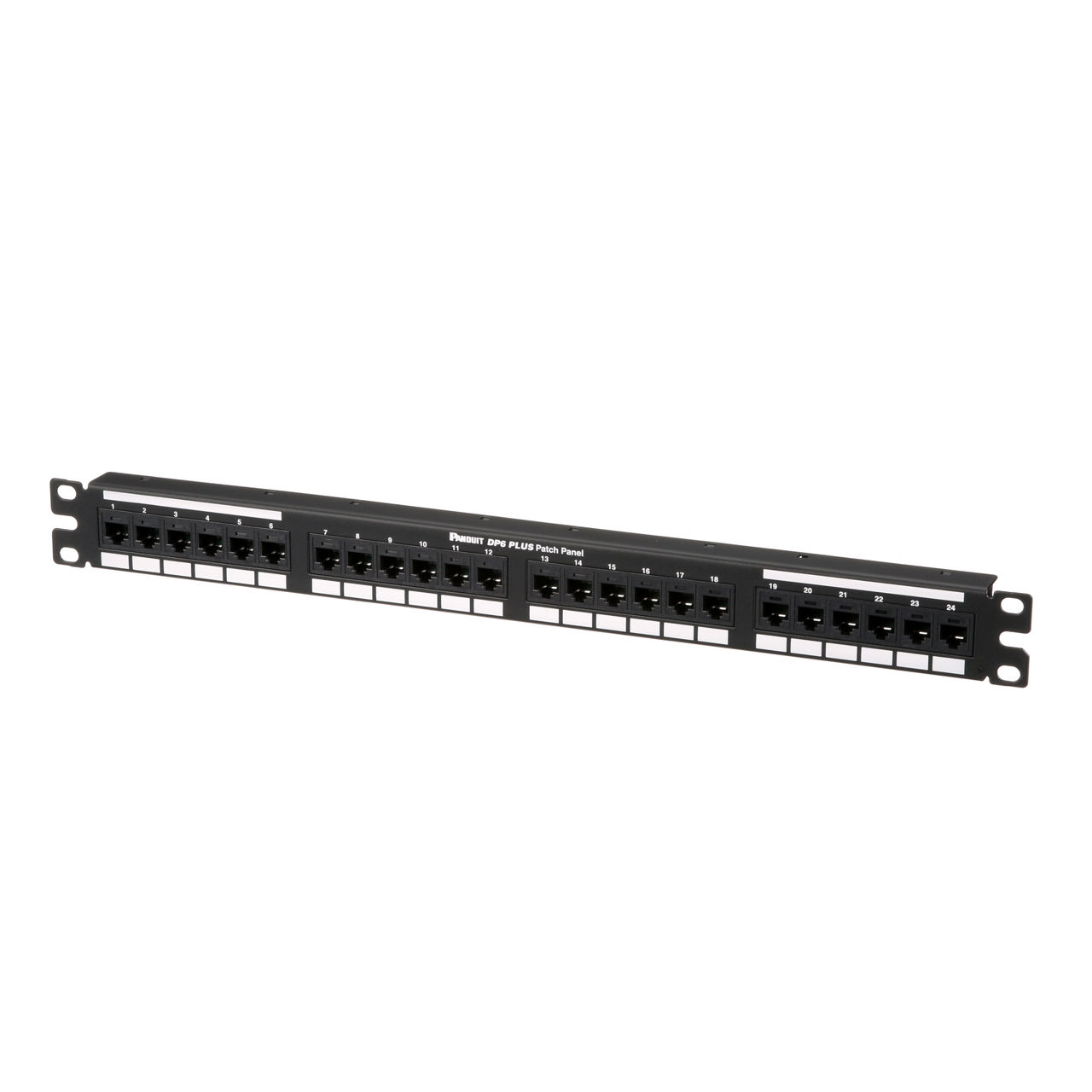

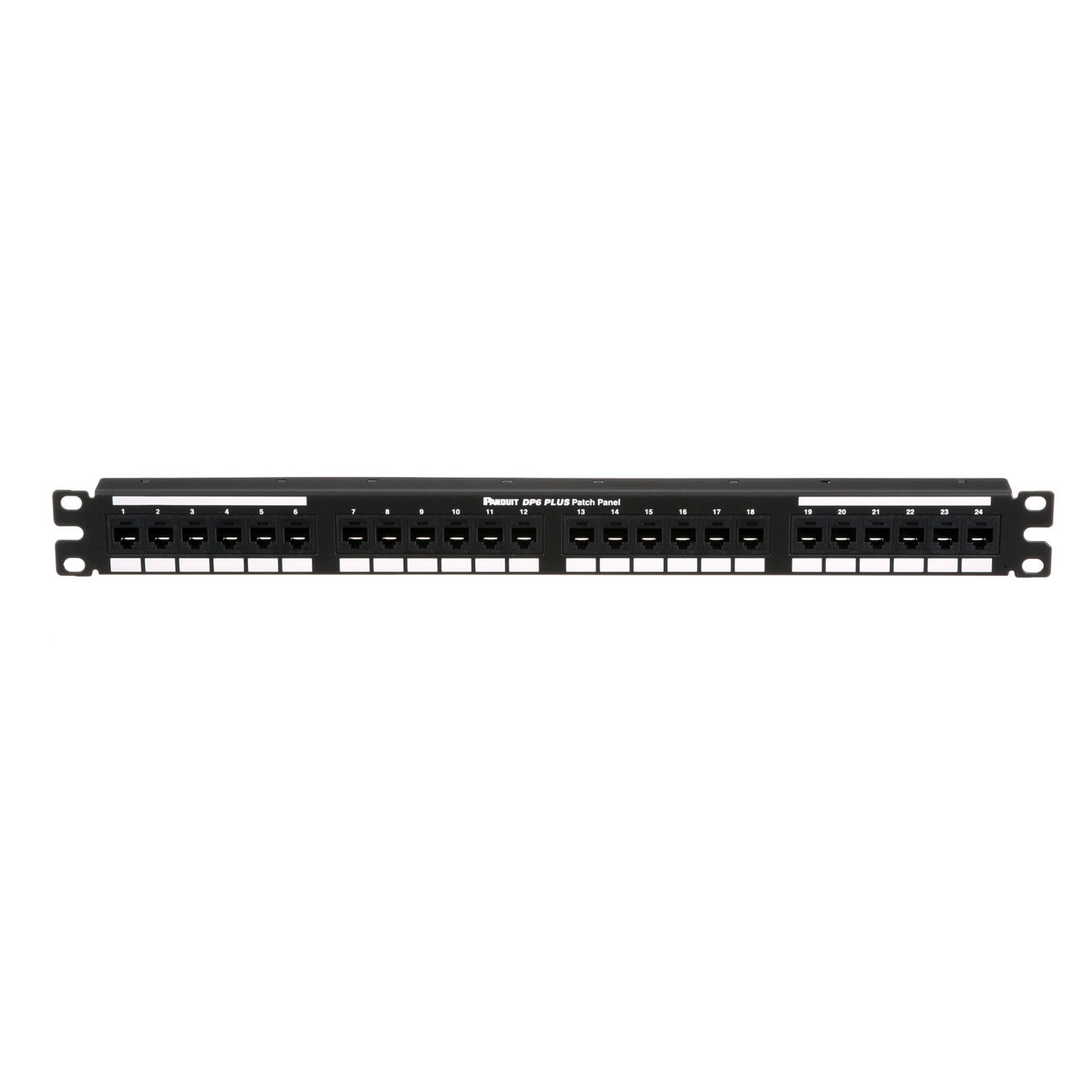

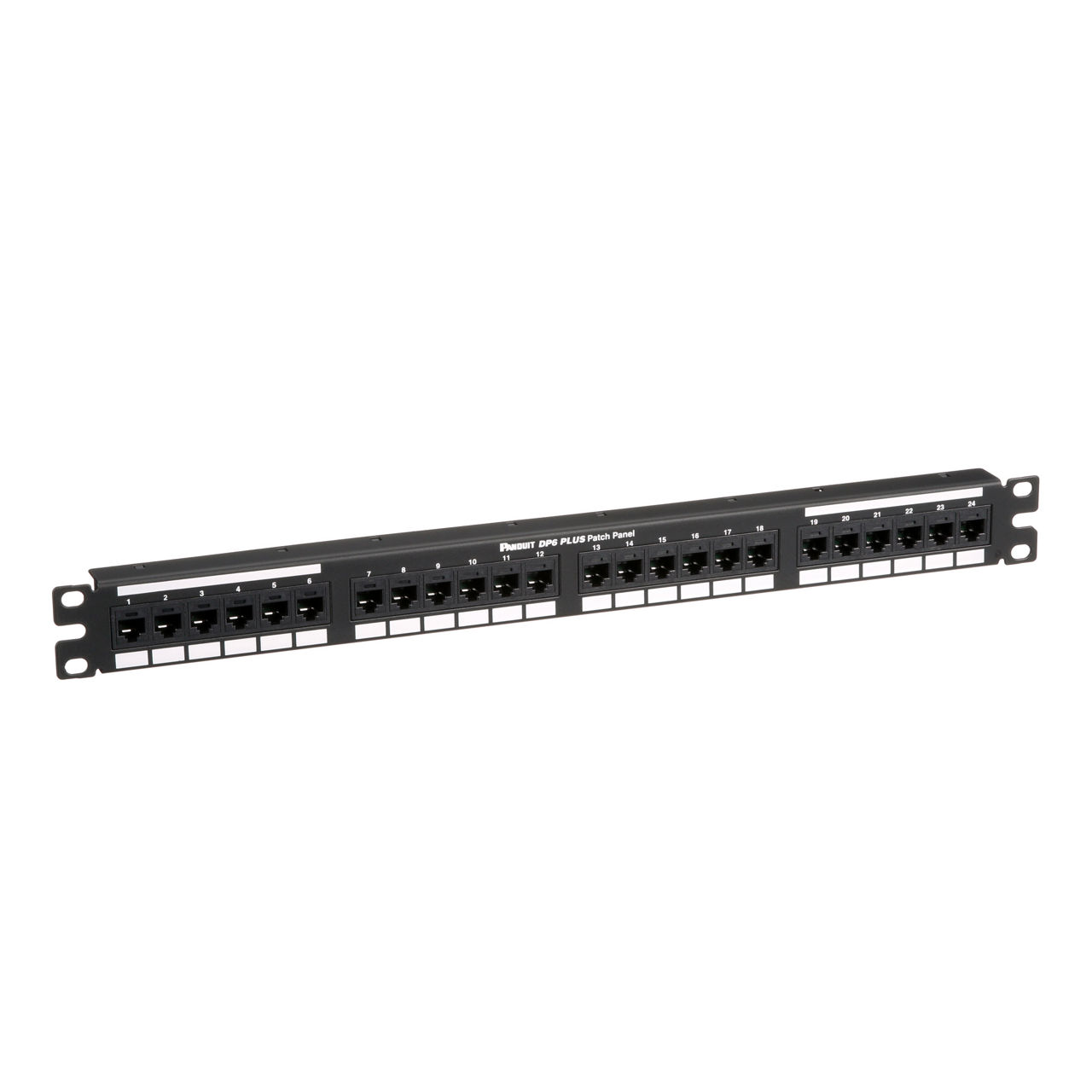

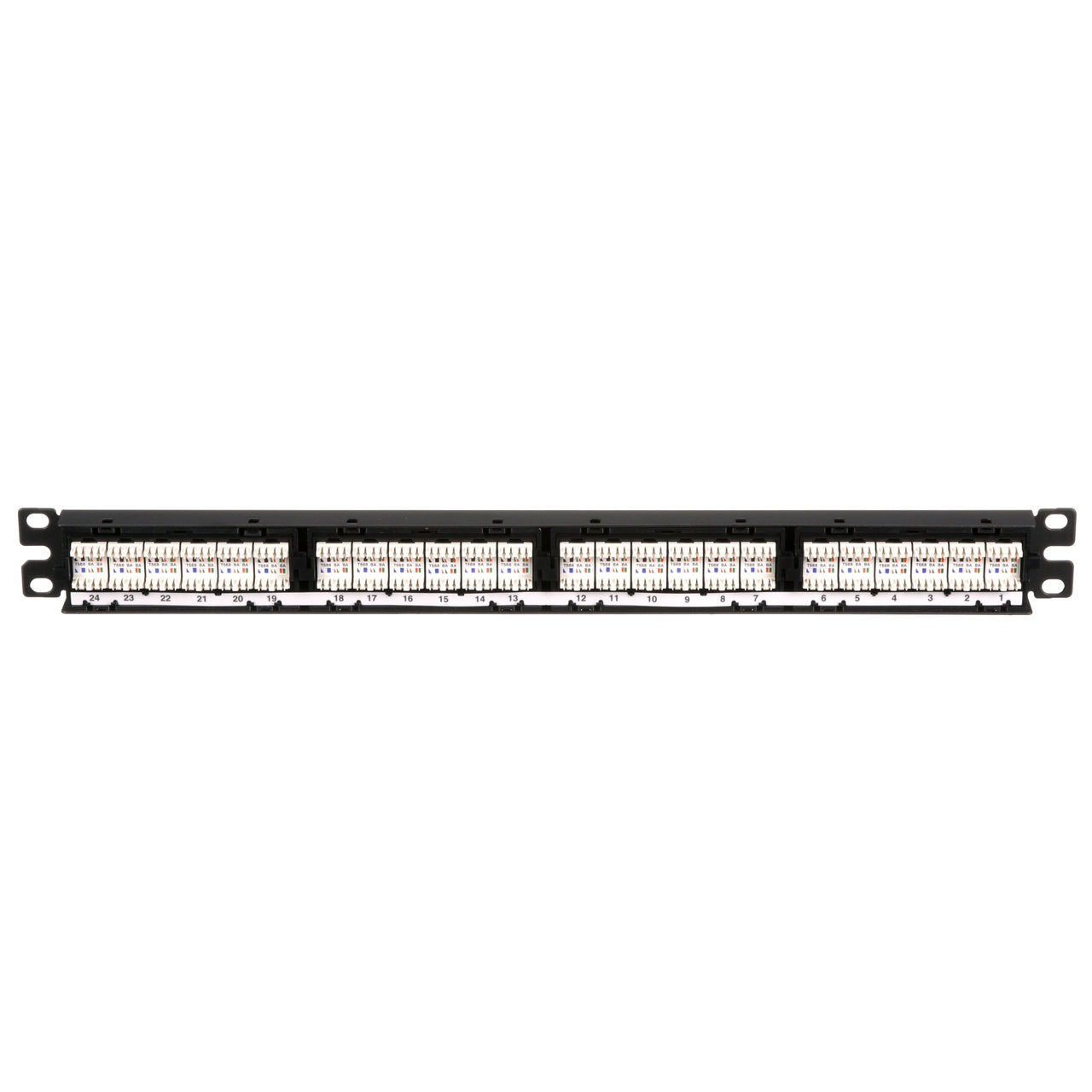

Data-Patch™ DP6™ PLUS Flat Punchdown Patch Panel
Cat 6 Punchdown Patch Panel, 24 Ports, 1 RU, Black
DP24688TGY
Our innovative Cat 6 flat punchdown patch panel delivers exceptional performance, organization with clear labeling, and universal compatibility. Ideal for network installations and upgrades.
Number of Ports: 24
Color: Black
Specifications
| Product Type | Patch Panel Kit |
| Termination Style | Punchdown |
| Patch Panel Style | Flat |
| Performance Level | Category 6 |
| Material | CRS |
| Wiring Scheme | T568A/T568B |
| Number of Ports | 24 |
| Number of Rack Units | 1 |
| Overall Length (In.) | 1.17 |
| Overall Length (mm) | 29.7 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Overall Depth (In.) | 1.17 |
| Overall Depth (mm) | 29.7 |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.7 |
| Sub Brand | Pan-Net® |
| Identification Type | Adhesive Label |
| Color | Black |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz. Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved, RoHS Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | -14 |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498303706 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.1619 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 1.6189 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | DP6™ PLUS Punchdown Patch Panels Spec Sheet COSP398 | English | |
| Videos | Panduit Copper Connectivity Video | English | |
| Part Drawings | Part Drawing - DWG - DP24688TGY | English | |
| Part Drawings | Part Drawing - DXF - DP24688TGY | English | |
| Part Drawings | DP6 Plus 24 Port Patch Panel | English | |
| Installation Documents | Punchdown Patch Panels: PN379F-ENG | English | |
| Brochures | Copper Cabling Systems - COCB29 | English | |
| Brochures | Sistemas de Cableado de Cobre - COCB29 | Spanish (Español) | |
| System Warranty | Category 6 UTP Guaranteed Headroom Platform North America | English |
