QuickNet™ MTP Fiber Optic Cassette

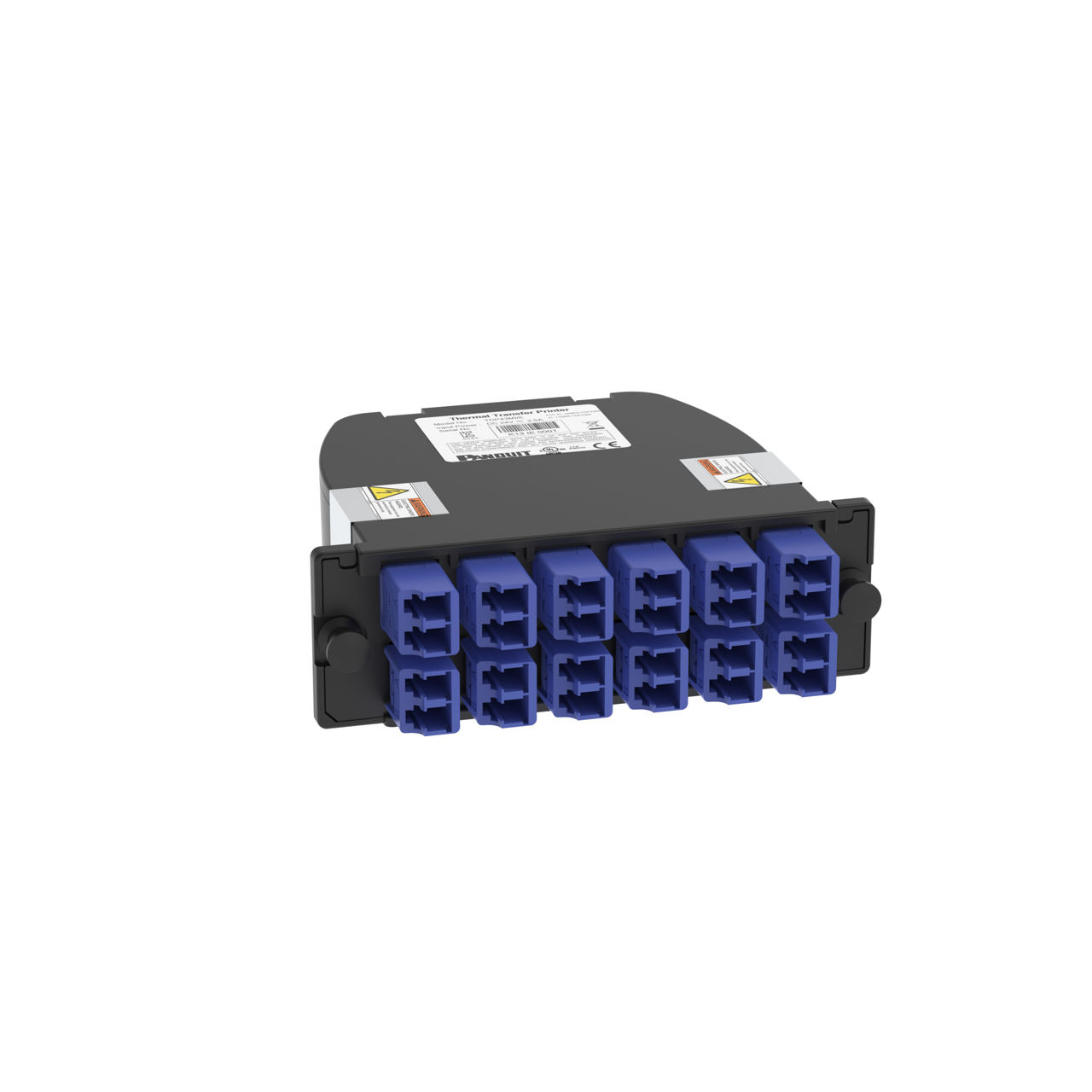

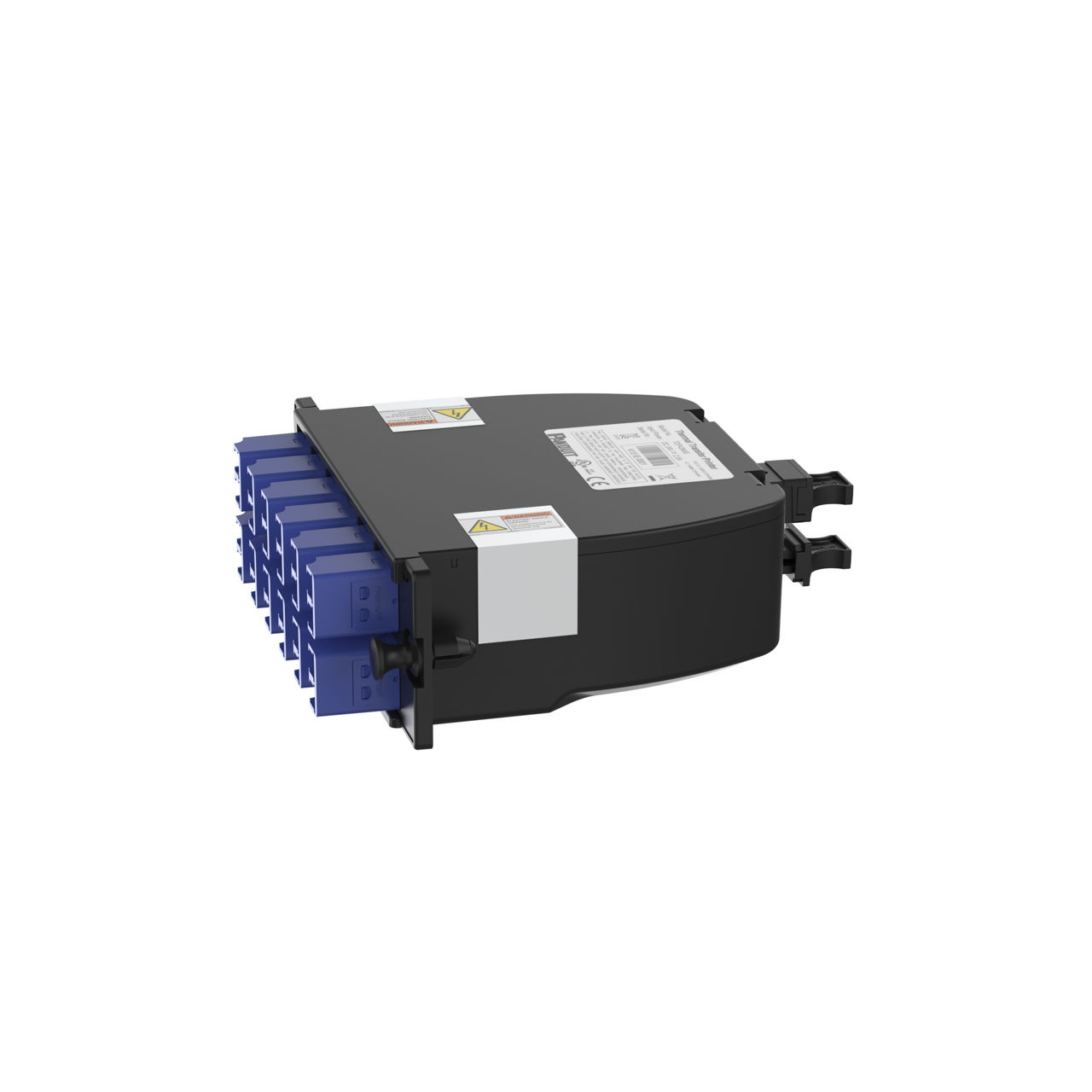

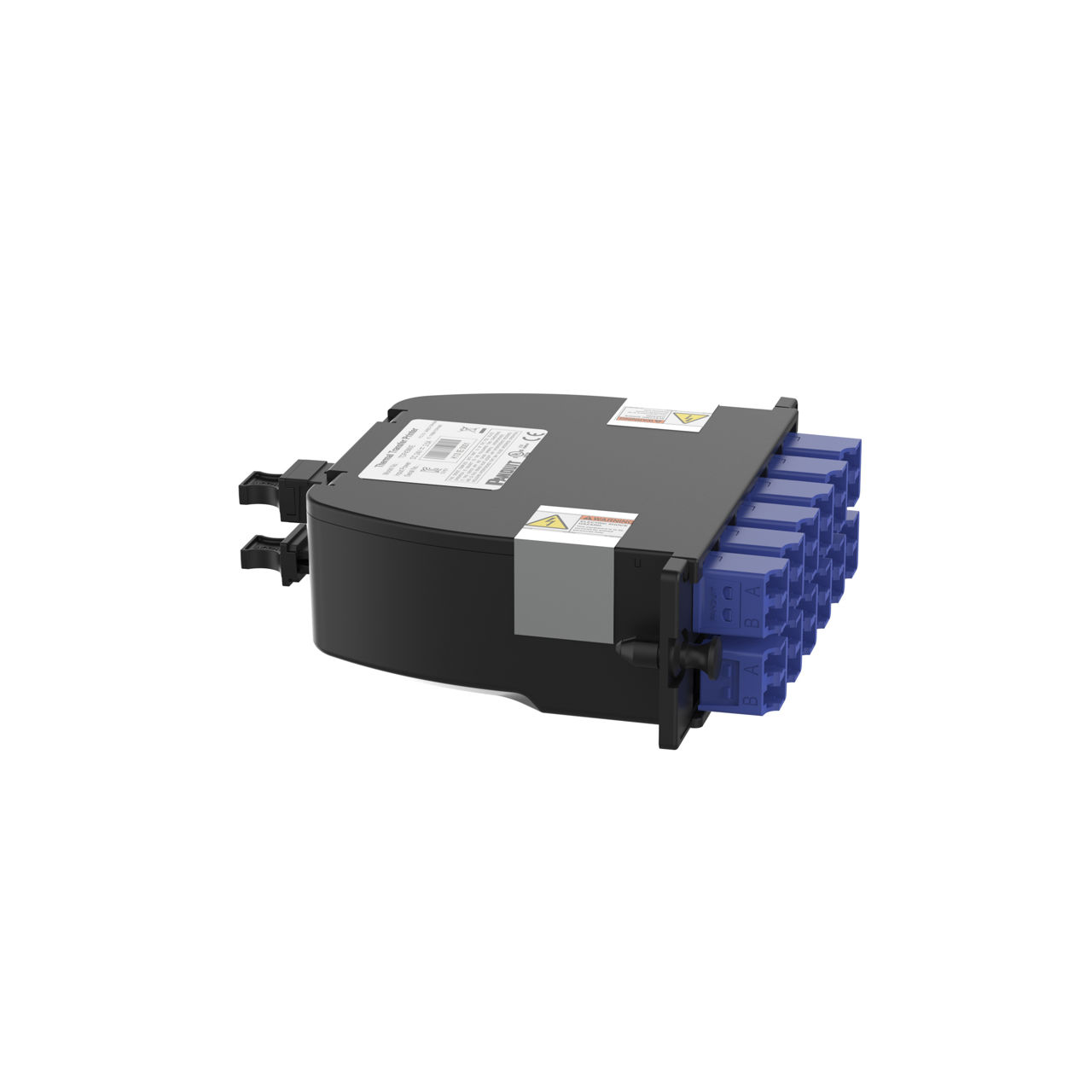

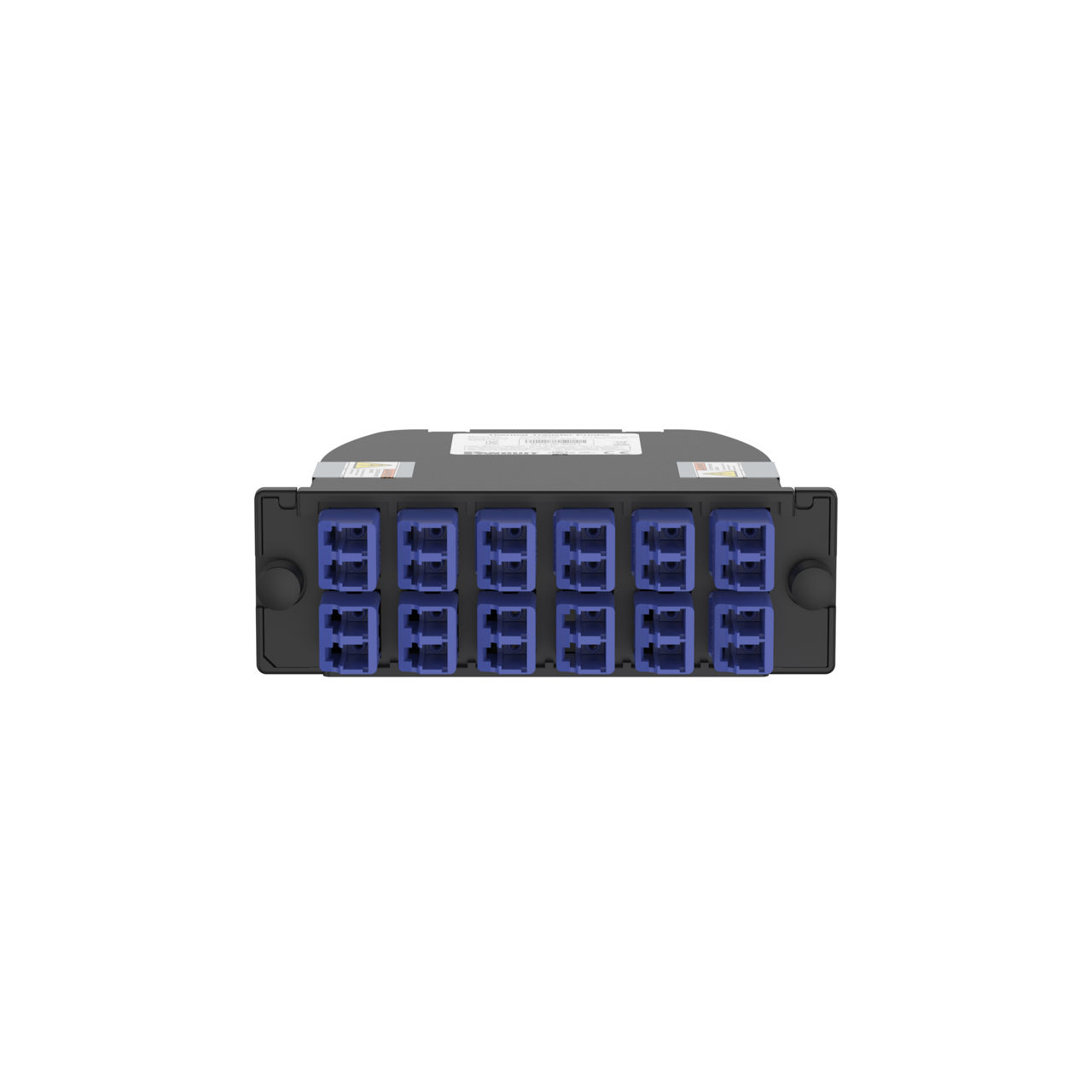

OptiCom® MPO-LC Fiber Cassette OS2, 24 Fiber, Method A
FC29N-24-10AS
Streamline your high-density data center connections with our pre-terminated MTP fiber optic cassette. Flexible offering of LC, SC, or simplex adapter options, all within a space-saving design.
Fiber Type: OS2
Number of Fibers: 24
Connector 1 Type: LC Duplex
Select product to view details, compare, or add to list:
Specifications
| Fiber Type | OS2 |
| Sub Brand | Opticom® |
| Number of Fibers | 24 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO Male |
| Adapter Color | Blue |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 55 |
| Product Type | Fiber Cassette |
| Part Features | Quick and easy deployment in high density applications and provide efficient utilization of rack space and design flexibility. |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498395133 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0666 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.6661 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Product Bulletins | Guía de Conectividad del Centro de Datos FBCB49 | Spanish (Español) | |
| Specification Sheets | QuickNet™ MTP Fiber Optic Cassettes Specification Sheet FBSP71--WW-ENG | English | |
| Specification Sheets | Casetes de Fibra Óptica QuickNet™ MTP* Hoja de Especificaciones FBSP71--WW-SPA | Spanish (Español) | |
| Part Drawings | 24 Fiber Duplex Lc Cassette Method A And Modified Method A, Pair Flipped | English | |
| Installation Documents | QuickNet MPO Fiber Optic Cassettes: FS037A | English | |
| Application Guides | QuickNet™ Fiber Cabling In Data Center: FBAG01--WW-FRA | French (Français) | |
| Application Guides | Deploying Fiber Cabling in the Data Center | English | |
| Application Guides | Implementando Cableado de Fibra en el Centro de Datos Guia De Aplicacion FBAG03 | Spanish (Español) | |
| Technical References | Troubleshooting a Permanent Link: FBTR117--WW-ENG | English |
