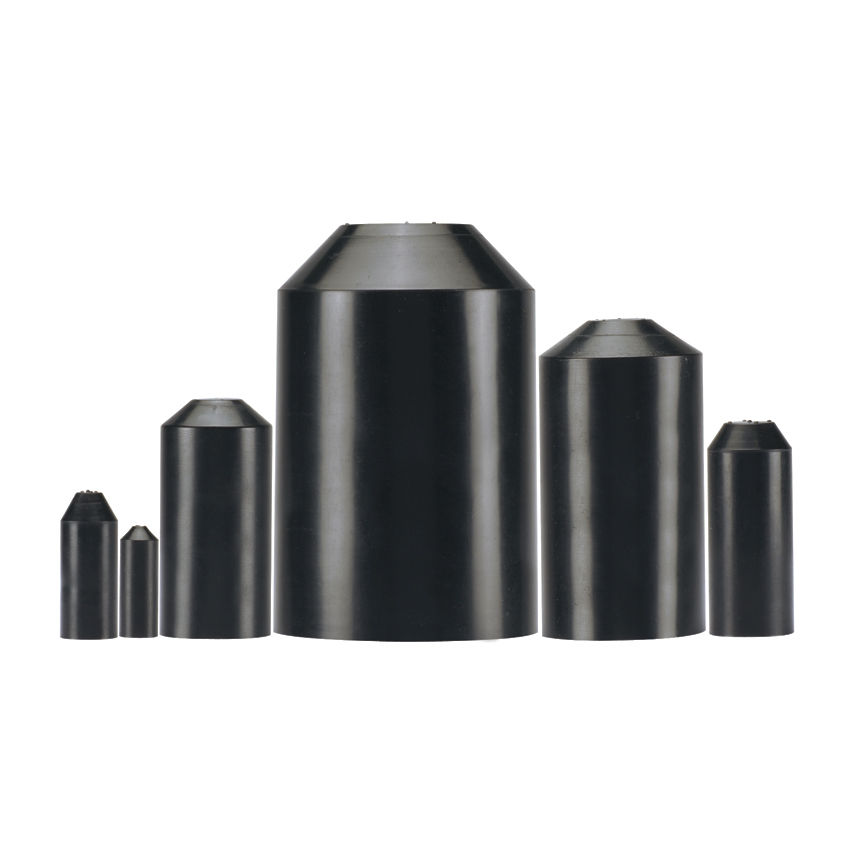

Heat Shrink Thick Adhesive Lined End Cap
HSEC4.0-2 Heat Shrink End Cap
HSEC4.0-2
Our heat-shrinkable end cap seals and protects wires, cables, pipes, and conduits in wet environments, offering a durable, flame-retardant barrier with an easy adhesive application.
Minimum Expanded Inside Diameter (In.): 3.92
Resistance Properties: Abrasion-Resistant
Shrink Ratio: 2.5:1
Specifications
| Product Type | Heat Shrink End Cap |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Resistance Properties | Abrasion-Resistant |
| Shrink Ratio | 2.5:1 |
| Standards Met | RoHS Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Recovered Inside Diameter (In.) | 1.78 |
| Maximum Recovered Inside Diameter (mm) | 45.2 |
| Minimum Expanded Inside Diameter (In.) | 3.92 |
| Minimum Expanded Inside Diameter (mm) | 99.6 |
| Nominal Recovered Wall Thickness (In.) | 0.15 |
| Nominal Recovered Wall Thickness (mm) | 3.8 |
| Overall Length (In.) | 5.37 |
| Overall Length (mm) | 136.4 |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 07498340699 |
| Std. Pkg. Qty. | 2 |
| Std. Pkg. Volume (cf) | 0.2640 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 1.3201 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Videos | Abrasion Protection Products Video | English | |
| Part Drawings | Heat Shrink Thick Wall End Caps GB0239KF | English | |
| Selection Guides | Heat Shrink Selection Guide | English | |
| Selection Guides | Wire Abrasion Protection Selection Guide FRSG8-WW-ENG | English | |
| Technical References | Abrasion Protection Shelf Life | English |
