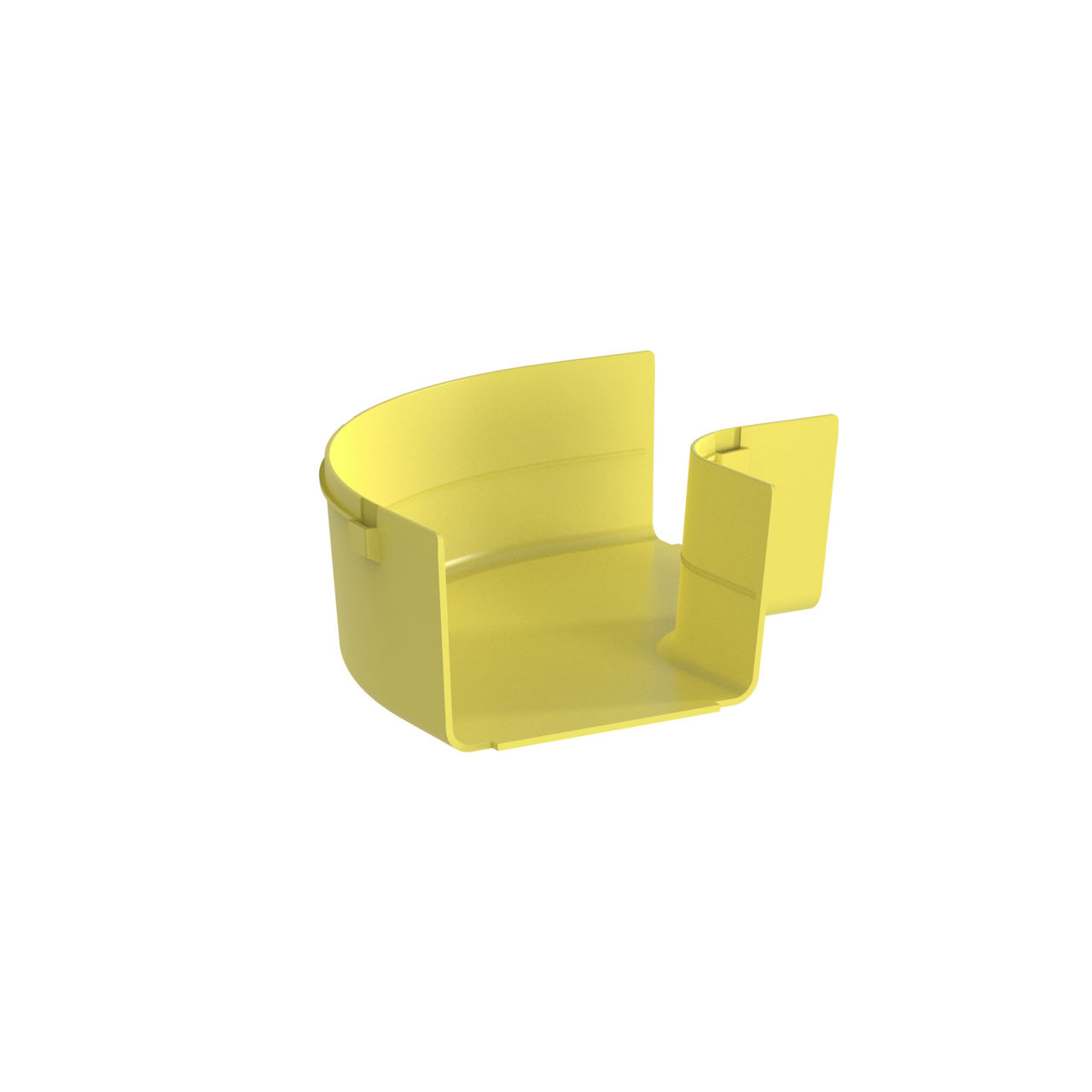

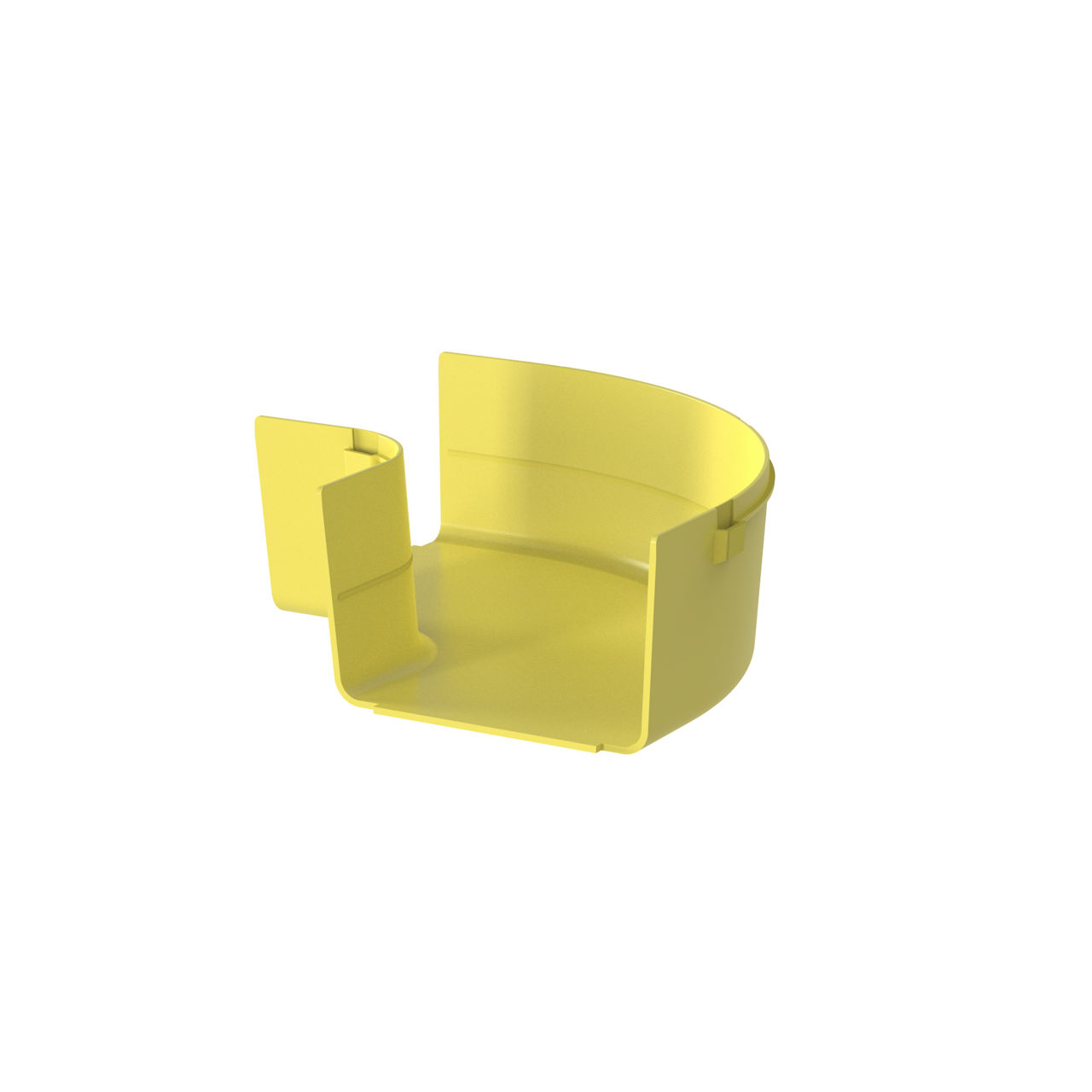

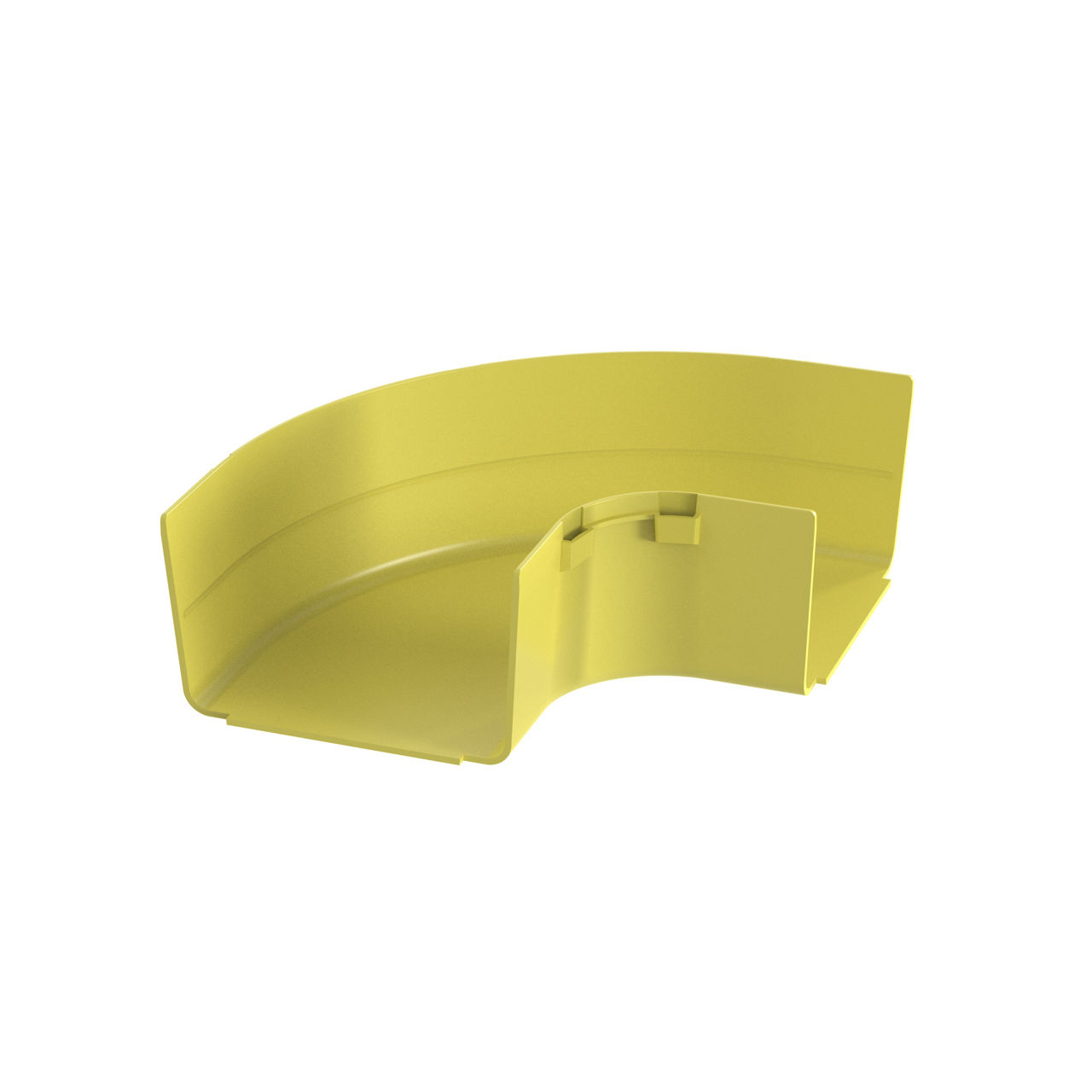

FiberRunner® Horizontal Right-Angle Fitting
FiberRunner® Horizontal Right-Angle, 90°, 6x4, Yellow
FRRA6X4LYL
In applications where efficient and organized cable routing is essential, choose our horizontal right-angle fitting. Seamlessly create a 90° turn for smooth transitions.
System Dimensions: 6" x 4"
Material: Polycarbonate/ABS
Color: Yellow
Specifications
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner® |
| Application | Data Centers and Telco Central Offices |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Yellow |
| Fitting Type | Horizontal Right Angle |
| Fitting Material | PC/ABS |
| Material | Polycarbonate/ABS |
| For Use With | 6x4 FiberRunner System |
| Overall Length (In.) | 10.78 |
| Overall Length (mm) | 273.8 |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6" x 4" |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 61305676382 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.3914 |
| Std. Ctn. Qty. | 5 |
| Std. Ctn. Volume (cf) | 1.9571 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | FiberRunner 6x4 EMEA LSZH Specification Sheet FRSP25--WW-UKE | UK English | |
| Specification Sheets | FiberRunner 6x4 Global Specification Sheet FRSP30--WW-ENG | English | |
| Specification Sheets | Sistema de Enrutamiento FiberRunner® 6x4 Hoja de Especificaciones FRSP30 | Spanish (Español) | |
| Videos | FiberRunner Video | English | |
| Part Drawings | FiberRunner 6X4 Horizontal Right Angle Fitting Part Drawing DWG | English | |
| Part Drawings | FiberRunner 6X4 Horizontal Right Angle Fitting Part Drawing DXF | English | |
| Part Drawings | FiberRunner 6X4 Horizontal Right Angle Fitting Part Drawing 37185-60 | English | |
| Installation Documents | FiberRunner 6x4 Cable Routing System Installation Instruction RW112B | English | |
| Application Guides | FiberRunner Cable Routing System Brochure | English | |
| Application Guides | Sistema de Enrutamiento de Cables FiberRunner Guia de Aplicación FRCB02-SA-SPA | Spanish (Español) |
