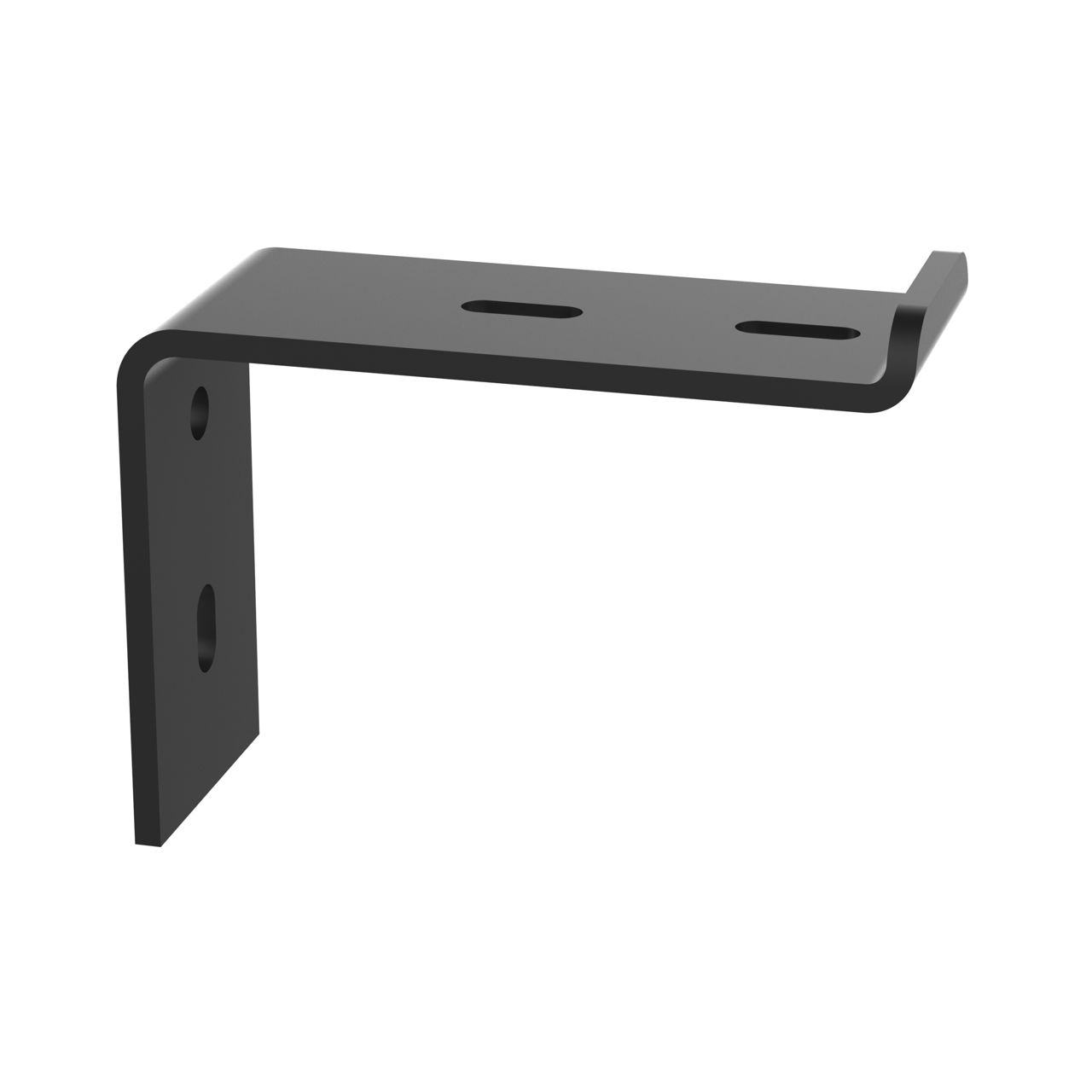

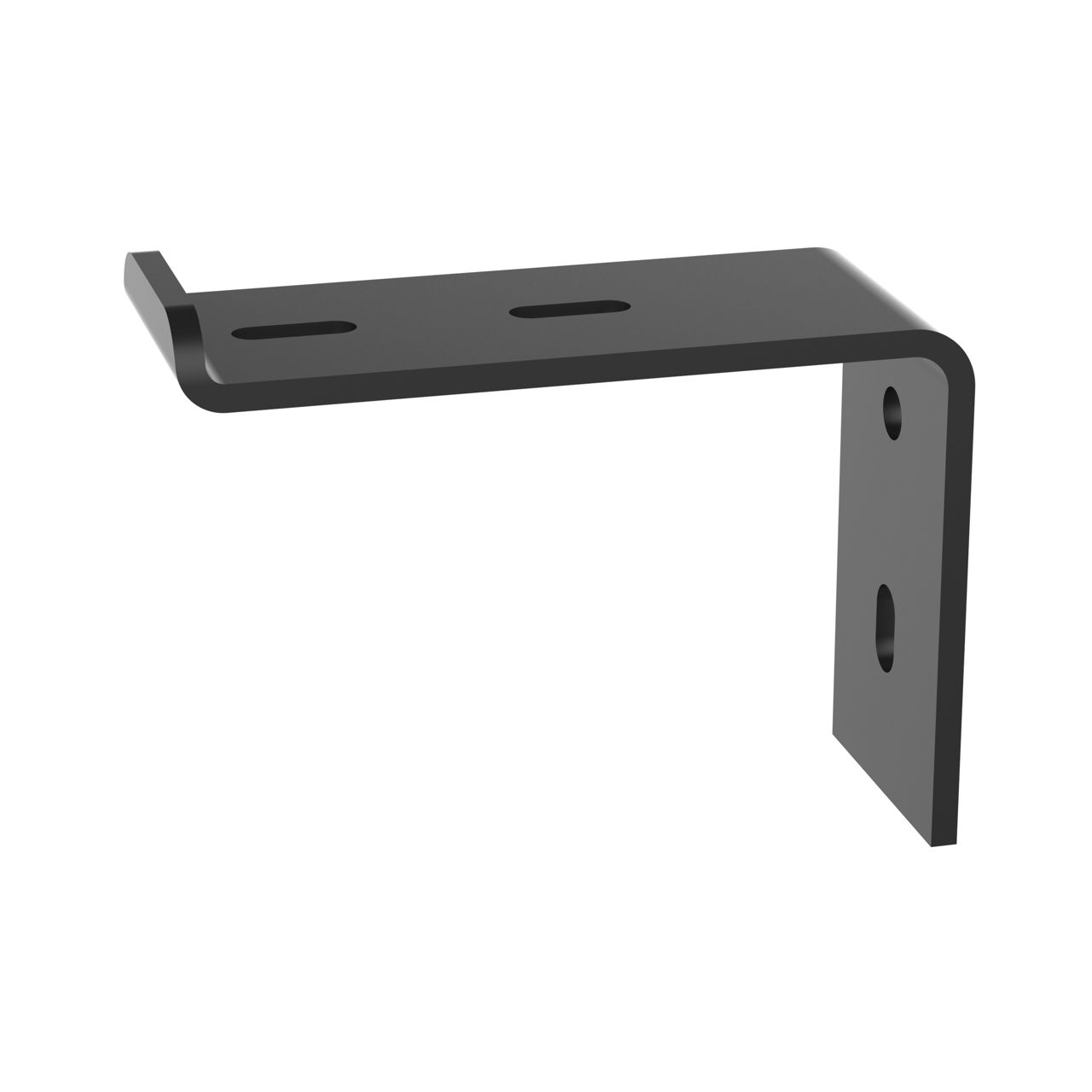

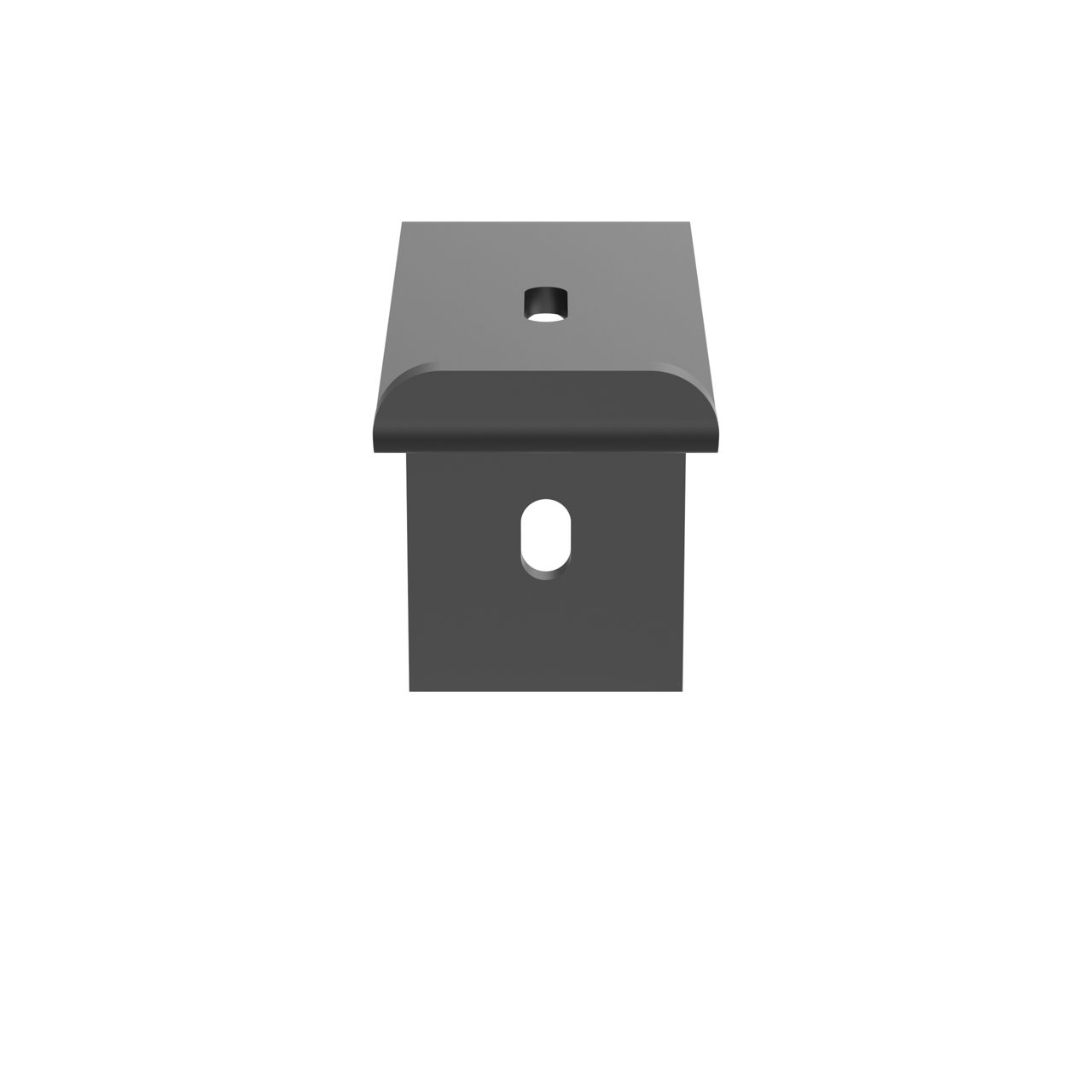

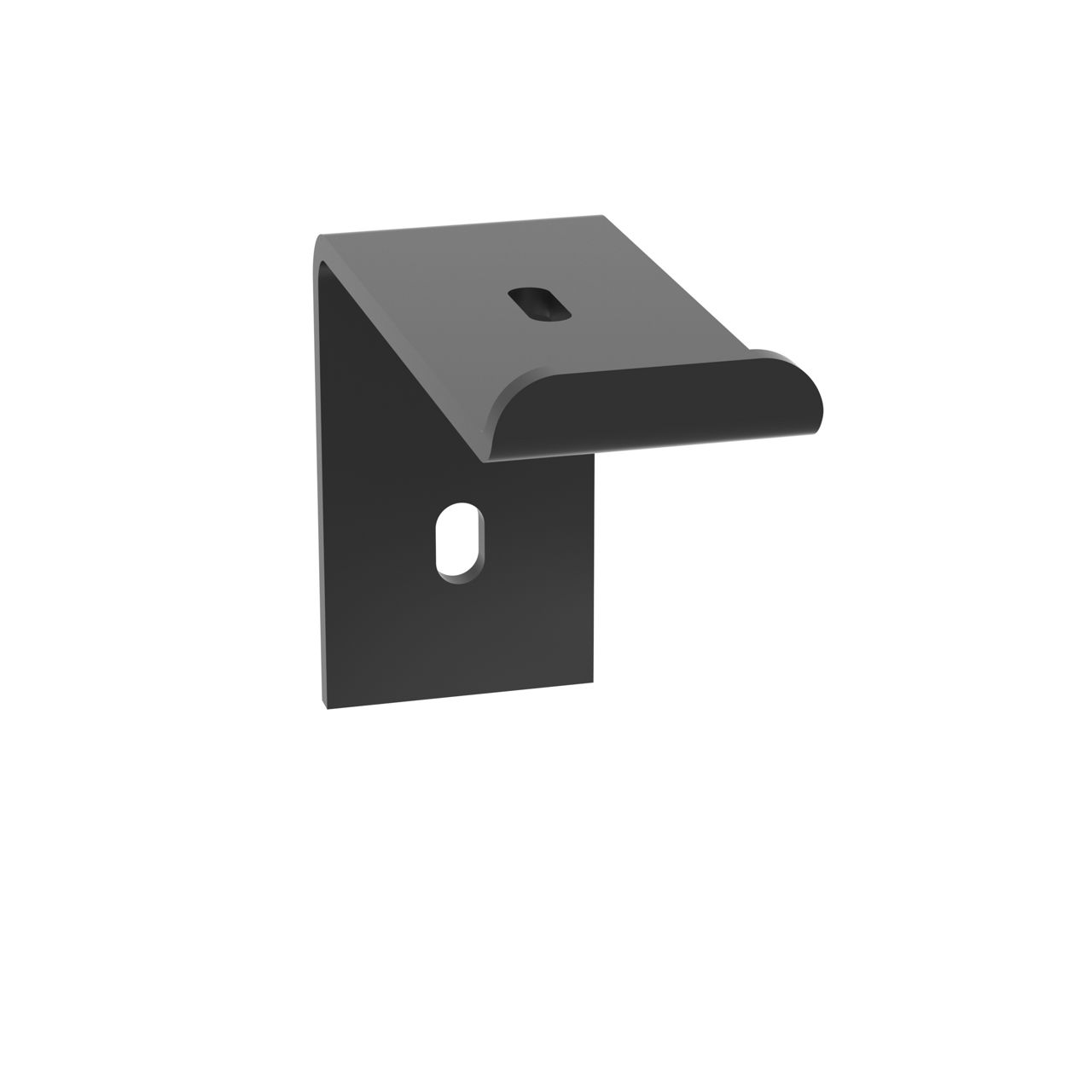

Wire Basket Cantilever Bracket
Cantilever Bracket 4", BL, Panduit Wire Basket
PWBCB4BL
Secure your wire basket with our cantilever bracket. Designed for 4-inch baskets, it ensures stability and organization for tidy, efficient setups.
Finish/Coating: Powder-Coated
Color: Black
Select product to view details, compare, or add to list:
Specifications
| Application | Data Centers |
| Product Type | Cantilever Bracket |
| Color | Black |
| Finish/Coating | Powder-Coated |
| Material | Steel |
| Standards Met | UL Classified for their Suitability for use as Equipment Grounding Conductor in Accordance with Sections 392.3(C) and 392.7(B) of the NEC |
| System Dimensions | 4" |
Runtime Graph
| Configuration |
|---|
Packaging Detail
| UPC | 61305681530 |
| Std. Pkg. Qty. | 2 |
| Std. Pkg. Volume (cf) | 0.0567 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.2836 |
Resources
NOTE: Not all resources are available in your language.
If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Language
| Specification Sheets | Sistema de Enrutamiento Panduit de Bandeja Portacables Tipo Malla Hoja De Especificaciones FRSP33--WW-SPA | Spanish (Español) | |
| Specification Sheets | Wire Basket Overhead Cable Tray Routing System Specification Sheet FRSP33 | English | |
| Videos | Wire Basket Overhead Cable Tray Routing Video | English | |
| Part Drawings | Wire Basket Cantilever Bracket 4" [100mm] - 00510EPH-DC | English | |
| Installation Documents | Cantilever Wire Basket Installation Instructions FS188 | English | |
| Installation Documents | Ménsula de Soporte para Bandeja Portacables Panduit Instrucciones de Instalación FS188-SPA | Spanish (Español) | |
| Application Guides | Wire Basket Overhead Cable Tray Routing System Application Guide | English | |
| Application Guides | Guía de Aplicación para el Sistema de Enrutamiento Elevado de Bandejas Portacables FRAG01 | Spanish (Español) |
